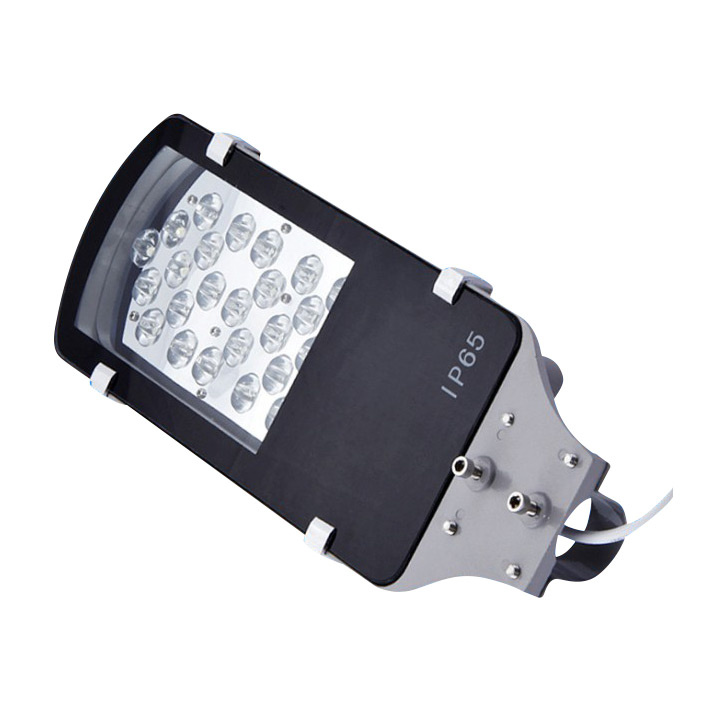

5 Years Warranty IP65 LED Street Light 30W
1. Characteristics
YL-LD-007 series of led street lights using high-purity aluminum housing and heat sink, with powder coating protection surface treatment and can adapt to the harsh outdoor weather conditions. This series of light using high-strength glass which have a high transmittance. Using Bridgelux LED chip with luminous efficiency more than 120lm / w. Highly reliable intelligent power supply, wide voltage input, to ensure that the universal of the whole lamp; high power conversion efficiency, high power factor; accurate current output, to ensure the reliability of the LED single lamp.
This series of lights on the lighting effects can replace the energy-saving lamps commonly used on the road, gold halogen lamps, mercury lamps and high pressure sodium lamps. Mainly used in urban roads, sidewalks, squares, schools, parks, gardens, residential areas, factories and other places where need lighting.
2. Technical specifications
| Model | YL-LD-1007 |
| Rated Power | 12W/24W/30W/40W/50W/60W |
| Power Factor | >0.95 |
| Conversion Efficiency | >0.92 |
| Material | Die-casting Aluminum |
| Working Temperature & Humidity | -20~65ºC; ≤95%R.H |
| Working Voltage | AC85-265V |
| IP Code | IP65 |
| Life Span | >50,000 hours |
| Luminous Efficiency | >120LM/W |
| Color Temperature | 2700-3500K, 5000-5500K, 6000-6500K |
| CRI | >70 |
| Light Source | Bridgelux |
| Power Driver | Moso/Meanwell |
| Dimension | 12W 350x95x55mm 1.1KG
24W 400x141x70mm 1.5KG
30W /40W/50W 470x200x70mm 3.5KG
60W 550x240x66mm 4.5KG |
Note:
v In addition to more power, you can also customize products according to customers' requirements.
Weifang Mingrui Optoelectronics Technology Co., Ltd., located in National Optoelectronics Industry Park, Wei Fang High-tech Development Zone, is a new technology enterprise specialized in researching and developing, producing and marketing new energy and new light sources and the technology for switching power supplies.
Mingrui has a top team and outstanding corporate management personnel of semiconductor (LED) applications. Our company has a pH. D. In physics, 3 optoelectronics graduates and 3 electronic engineers. Our company has set up two R&D departments for high-tech products: LED lighting and switching power supply R&D Department and solar energy photovoltaic power, inverter and charger R&D Department.
In the field of LED lighting, our company takes the lead in solving four industrial problems of fast light decline, poor uniformity, low illumination and poor heat dissipation in the process of conversion from passive light source to initiative light source.
It is our responsibility to meet your needs and efficiently serve you. Your satisfaction is our best reward. We are looking forward to your visit for joint growth.
