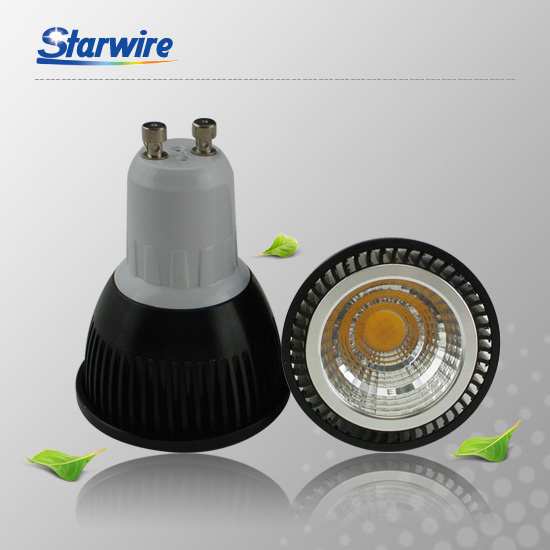

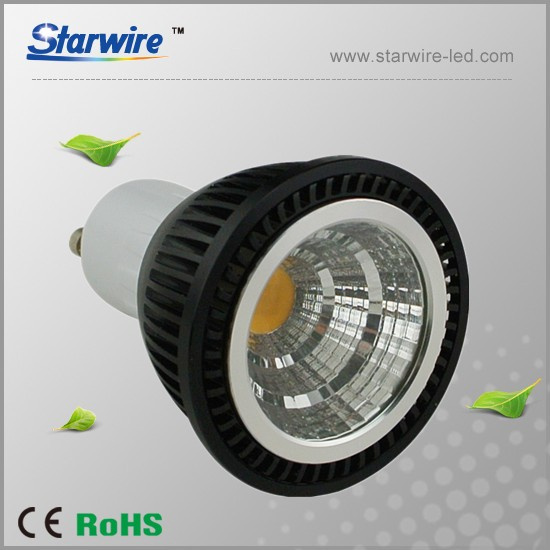

Product name: 4W COB LED Downlight / Spotlight
Item No.: SW-C01-GU10-01
Feature:
1.Light source: We use TaiWan brand COB LED as light source to make sure its long lifespan>30,000hours ; All of our COB spot light CRI> 80.
2. Heat dissipation: Our special structure design on better heat dissipation.
1) We use lache aluminum housing with ventilation holes for better disspiation;
2) we use ceramic PCB based COB LED, it has excellent self heat conducting properties.
3. Perfect lighting output effect. According to traditional halogen lamp's lighting output effect, we use single COB LED and reflector cup to design light distribution, that make the light spot perfect!
4. Driver: we use high quality constant current driver and high quality Taiwan Brand electrolytic capacitors. All of our LED spot passed CE certification.
Specification
Item No :SW-C01-GU10-01
Base :GU10, (MR16/E27 available)
Light source:TaiWan brand COB LED
CRI:> 80
Input Voltage:AC85-260V
Wattage:4W
Dimension:Φ50 x H66mm
Beam angle:30°
lifespanat least >30,000hours
Applications of COB Spot Light:
1). Architectural decorative lighting
2). Indoor Decoration
3). Auditorium walkway lighting
4). Stairway lighting & Decoration
5). Border/contour lighting
6). Channel letter lighting
7). Emergency & Security lighting
8). Cove lighting
9). Shop-window decoration.
Item No |
Dimmension |
Base |
LED |
Voltage |
Power |
Beam Angle |
Luminous |
Color |
C01 COB Led Spot, Silver Body |
SW-C01-MR16-01 |
Φ50 x H56mm |
MR16 |
4W LED COB |
DC 12V |
5W |
30° |
360±10% |
WW(2800-3300K), NW(4000-4500K); CW(6000-6500K) |
SW-C01-GU10-01 |
Φ50 x H66mm |
GU10 |
AC85-260V |
SW-C01-E27-01 |
Φ50 x H67mm |
E27 |
SW-C01-MR16-02 |
Φ50 x 70mm |
MR16 |
6W LED COB |
DC 12V |
7W |
30° |
525±10% |
SW-C01-GU10-02 |
Φ50 x 83mm |
GU10 |
AC85-260V |
SW-C01-E27-02 |
Φ50 x 84mm |
E27 |
C01 COB Led Spot, Black Body |
SW-C01-MR16-03 |
Φ50 x H56mm |
MR16 |
4W LED COB |
DC 12V |
5W |
30° |
360±10% |
WW(2800-3300K), NW(4000-4500K); CW(6000-6500K) |
SW-C01-GU10-03 |
Φ50 x H66mm |
GU10 |
AC85-260V |
SW-C01-E27-03 |
Φ50 x H67mm |
E27 |
SW-C01-MR16-04 |
Φ50 x 70mm |
MR16 |
6W LED COB |
DC 12V |
7W |
30° |
525±10% |
SW-C01-GU10-04 |
Φ50 x 83mm |
GU10 |
AC85-260V |
SW-C01-E27-04 |
Φ50 x 84mm |
E27 |
Shenzhen Starwire Lighting Co., Limited, is a professional manufacturer specializing in producing and selling various LED related products: LED bulbs, LED Strip, LED modules, LED floodlight, LED tube and other related products. "No captious customer, only deficient service" is our company's business concept and service principle. "To be the best LED light supplier in China" is our mission. With the effort of 200 workers, we've earned our customer's trust and support since foundation in 2007.
Through our working experience and manufacturing technical capabilities, our company has already obtained ISO Quality Certification and CE Certification. Our R&D department is constantly researching and developing new and innovative lighting series products for the ever-changing market needs. We choose famous LEDs from well-know LED producer to ensure the quality of high power LED products, with product quality controlled by our company. Our quality promise is: There is no best, only better. We strive to exceed 99% yields, and customer satisfaction is our goal.
