Product: CL08-W01 shenzhen high efficiency ip54 waterproof led down light
Specification
Model | SW-CL08-W01 |
Material | Aluminium alloy |
Lens | PMMA acrylic |
Luminum transmittance | >95% |
Power input | 8W±10% |
Voltage | As driver input |
Current | 350mA |
Light Source | COB with Epistar chip |
Work temperature | -10 ~ 50ºC |
CCT | 3000K/4000K/5000K |
CRI(RA) | >80 |
Beam Angle | 30º/45º/60º |
Luminous Efficiency | 70lm/w |
Luminous Flux(lm)/3000K | 438lm |
Luminous Flux(lm)/4000K | 444lm |
Luminous Flux(lm)/5000K | 446lm |
Dimension | Φ82*65mm |
Install | recessed |
Cutout | Φ68-73mm |
Color | white |
Application | IP54 led light, 8w bathroom lighting |
Warranty | 3 years |
Features:
- Cree COB, CE & ROHS(approvalled by TUV Rheinland), SAA.
- 8W IP54 waterproof led downlight. The surface is water resistant.
- High lumen 469-487lm, CCT: 3000K/4000K/5000K.
- 30º/ 45º /60º beam angle is available for accent lighting.
- High CRI more than 80, approximate to the nature light.
- High luminous efficiency over 80lm/w, energy saving.
- Driver can be applied with wide range input voltage AC 85-260V.
- Stable luminous, brightness degradation below 1% in 1.5 hours.
- Low decay and long lifespan with 30% lunimous maintenance in 50,000 hours.
- Environmental friendly, No UV or IR radiation, no noise.
- Excellent light spot, comfortable to eyes, no halation, no flicker, no strobe.
- High energy efficient, only 10%-15% power consumption of incandescent lamp.
- Thick and solid aluminium material, low thermal resistance, good heat dissipation.
- Easy recessed installation. Fix it in the cut hole with the spring bars directly.
- Stairwire 3 years warranty. We like to be your trustable and friendly cooperator.
Starwire advantage
1.Driver & COB Chip:
- Brand driver compatible: All starwire downlight has standard 200mA/350mA/500mA/700mA/1050mA input current, which are compatible with most of brand driver, such as Tridonic, Philips, Osram, Meanwell, Eaglerise, etc.
- High quality LED chip: Original Cree/Citizen COB, original Samsung 5730 led, mainland encapsulated epistar 17*34 chip COB.
2.Test Facility:
- Goniophotometer (Brand: Everfine, with 3.5m*12m dark room, can generate IES document).
- Integrating sphere (Brand: Everfine, 1.7 meter diameter).
- ERP aging test room (approvalled by TUV Rheinland) .
- All our test equipements are revised anually to keep the accuracy.
Pictures

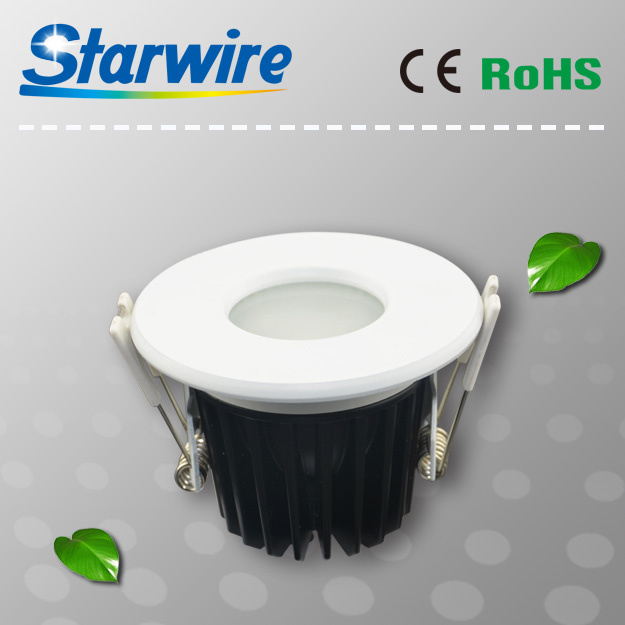

SW-CL08-W01 shenzhen high efficiency ip54 waterproof led down light

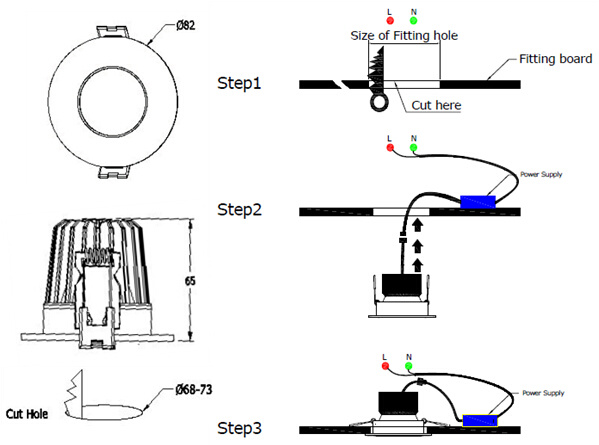

Installation
Step1: Turn off all powers, cut out the fitting hole on the ceiling or board.
Step2: Connect switch and input wire of power, then connect and install the light.
Step3: Turn on the power and done all the works.
Notes: Please keep the power off when install to protect from electronic shocks.

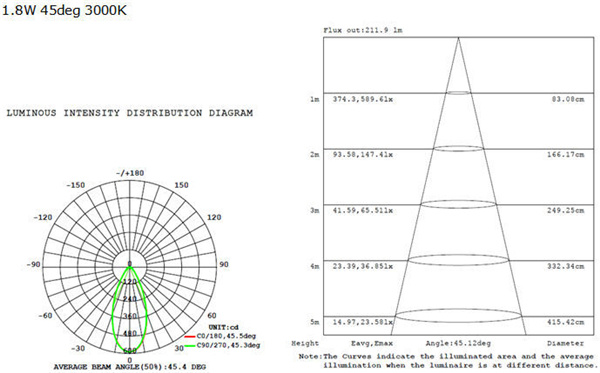

Luminous intensity distribution diagram
SW-CL08-W01 shenzhen high efficiency ip54 waterproof led down lightlight
Average Ilumination(lx) | 1.0M | 2.0M | 3.0M |
3000K /45 deg | 374lx | 93lx | 41lx |
4000K /45 deg | 378x | 94lx | 42lx |
5000K /45 deg | 383lx | 95lx | 42lx |
Application
CL09-W01 cheap 9W waterproof cob led downlight, replpacement for traditional halogen lamp, is suitable for bathroon, sauna room where there are much water vapor or drops. Its surface is waterproof with 2 silicone gaskets from Starwire exclusive mold.
Our services
1. Your inquiry on our products or prices will be replied once we checked it.
2. Well-trained and experienced staffs to answer all your queries in fluent English.
3. We can design base on your customized lighting with your logo.
4. Reasonable price with high quality will be offered.
5. Protection of your sales area, design ideas and all your private information.
Trade terms
1.Payment term: T/T 30% deposit after order confirmed, 70% the balance after goods ready before shipping, L/C at sight can be accepted.
2. Lead time: normally 7-25 working days after deposit received.
3. Samples: Can be ready in 3-5 working days once payment received.
4. Shipping port: Shenzhen, Mainland China.
5. Discounts are offered based on order quantities.
RFQ:
Q1: Can I have samples to test?
A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available.
Q2: Do you have any MOQ limited?
A: No MOQ needed, and better price for bulk order.
Q3: What's the lead time?
A: Sample :2-3days. Mass production: 7-25days depend on the order quantity.
Q4:How do you ship the goods and how long does it take?
A: We usually deliver by air, such as DHL,UPS,FEDEX,TNT or by ship. It usually takes 3-5days to arrive.
Q5: Do you offer guarantee for your products?
A: Yes, we offer three years guarantee for the products.
