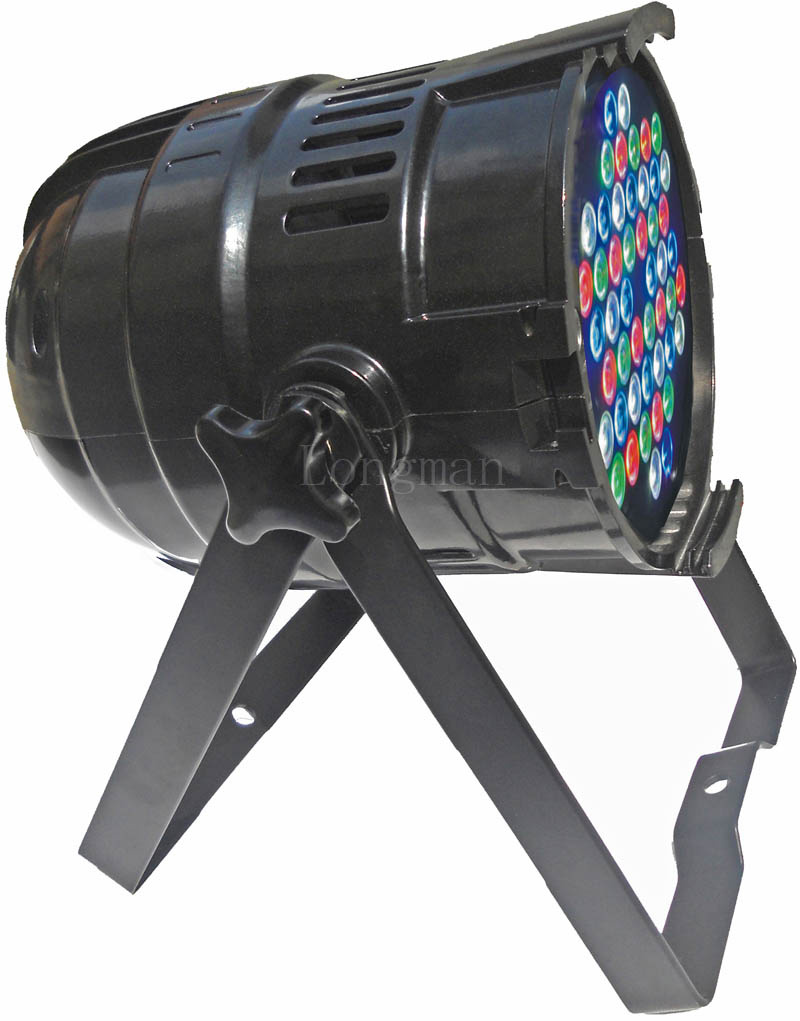

48PCS 3W RGBW DMX512 LED PAR 64 Stage Lighting (F600)
Features:
Structure: New die cast model, similar size as traditional Par 64, more stronger, good for rental application; Patent new lamp body is design to support heat sink, with better ventilation, no fans cooling, no noise! Could customize white/ Black housing.
Optic Design: Good color saturation and brightness, Red color=622-625 nm, Green color=522-525 nm, Blue Color=450-452.5 nm, strict even color distribution, variegated aperture, white balance; Beam angle (10% intensity) 15 degree, 45 degree, Optional.
Electrical: AC 90~240V 47-63 Hz Input, 120 Watt max consumed, power factor 90%;
Control: DMX 3CH, 4CH, 5CH, 8CH optional, Dimmer+RGB+Strobe+Macro, butid-in program; PWM driving, Frequency>3K Hz
More than 35000 Hours Longevity for SMPS and Main board.
Technical advantages of the lights
1. Innovative imaging optical path, nonlinear imaging optical path
2. Excellent performance of color, high saturation, complete CIE color gamut range
3. Excellent color rendering, uniform mixed color, the standard chrominance variance < 0.005
Zoom 8-50 degrees
4. A narrow beam to 1.5 degrees, strip to 60 * 1 degree of strip light distribution
5. The axial intensity up to 155250 CD/Klm
6. Luminaire efficiency beyond 125 lm/W
7. Precise beam Angle, light Angle, the expression of axial light intensity
8. Having DMX, PWM, Silicon controlled and Artnet different control modes and so on
9. Withstand 12 times per second switching of full load/no-load
10. Resistant to high strength spray test
11. Independent innovation design and die casting, extrusion and injection mold
12. More than 20 die casting mold and more than 20 stretching mold
13. High temperature automatic control output luminance protect function
14. Automatic display DMX signal reaching function
15. Shut down LED panel automatically after 2 minutes without operation
16. Dim4 smooth dimming function, Lower DMX address without blinking
17. All the configuration of luminaires pass the infrared imaging thermal test
18. All SMT and wave soldering technology
19. Good ODM & OEM and custom engineering services and so on
FAQ:
1. Are you a factory or trading company?
Yes, We are a factory.
2. Where is your factory located? How can I visit there?
Our factory address is: A3, Yagang Industrial Zone, Yagang Road, Baiyun District,
Guangzhou, China, about 10 minutes away from Bai yun Airport by metro, then
We will go to pick you up from metro station, only 25minutes. All our clients, no
Matter where you are from, all are most welcome to visit us!
3. Which products we have?
We produce different kinds of LED Light.
Our product:
A. LED Moving Spot and Wash;
B. Studio Light;
C. Indoor Parcan;
D. Professional Wash;
E. Audience and DJ;
F. Outdoor Parcan;
G. Outdoor Washer;
H. Black Light;
J. Control System;
K. Dramatic architectural and landscape lighting.
4. How to get the latest price?
If you want the latest price, Please Email or call us with the items names or NO.
What are you interested in, together with your details(name, details address, telephone, etc), we will send to you as soon as possible.
5. Does the products have any certificate?
Yes, our products have CE, ROHS and SGS certificate.
6. What's the Payment method?
All methods can be discussed.
7. How to Place an order?
Please kindly send us you order by email, we will confirm the PI with you. We
Wish to know the below: Delivery information, company name, address details,
Phone/fax number, destination, transportation way; Product information: Item
Number, size, quantity, logo, etc.
Stage lighting from China professional stage lighting manufacturer.
If you have specific parameters and requirements for our stage lighting, customization is available.
|
Specification |
1. Voltage input: AC 90-240V 47-63Hz
2. Max power consumption: 150W
3. PF: 0.9
4. Light source: 48pcs*3W RGBW LED(R12G12B12W12), Standard Deviation of Chromaticity< 0.006, best suit for concert and performance.
5. Light Output: 4600 Lumens;
6. LED Life Span: 50 000 – 100 000 hours
7. Beam Angle: 15° \25° \45° \60° optional
8. Control signal: DMX512, 32 bit precise dimming, smooth in low DMX Value dimming, not Jumping, no vision shock.
9. Control mode: auto run/sound active/master slave/DMX
10. Channel: 3CH, 4CH, 5CH, 8CH
11. PWM Frequency: > 3KHz, flicker free
12. Cooling method: Natural cooling
13. Net Weight: 4.7Kg
14. Size: 30*32*39CM
15. IP Rate: IP 20 |
