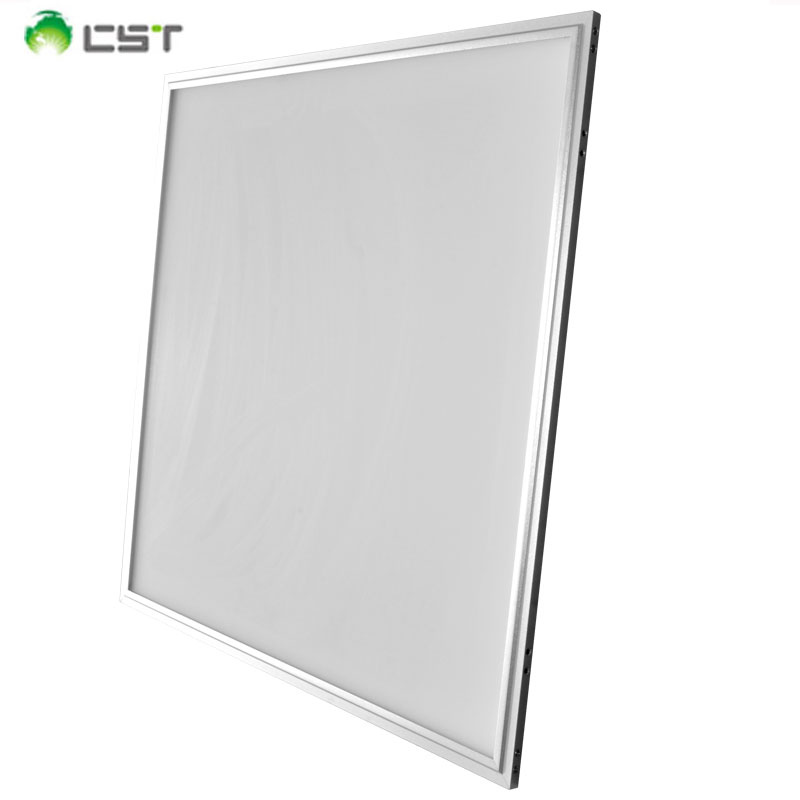

40W 60*60cm 4000-5000 Pure White Ra>80 square led light panel
1, Advantages of square led light panel:
design Simply replace the grill lamp or false ceiling, or hang from the roof using chains;
square led light panel with Super Slim of 10mm thinckness, making for attractive and versatile signage;
Edgewise, the LEDs emit evenly lighting through a LGP ( Acrylic ), the luminosity is bright, soft and comfortable for eyes;
Cooler than traditional display, versatile in size, shape and configuration;
square led light panel with four Sides illuminating,beat heat sink,with temperature rise less than 20 degree,good for extending the panel's lifespan;
Optimized circuit design ensures no interference with any other LEDs when a single one fails.
2, Feature:
80% less power consumption than traditional lighting source;
square led light panel from Epistar or San'an with superb feature;
Ultra slim and light, with thickness only 10mm;
square led light panel with external high PF Constant Current LED Driver,instant start, No flickering and No humming, safe and reliable;
Long lifespan >50,000hours, 3 years warranty,CE,ROHS approved.
3, Applications:
square led light panel are used for Ceiling, Walls, art gallery, the car, the counter,etc.
4, Installation:
1, Fix the square led light panel;
Embedded installation and replace the ceiling with the square led light panel which has the same specifications;
A, Take off the ceiling and put the square led light panel into the ceiling from the diagonal;
B, Fix thesquare led light panel to the T shelf.
(2,) Inhaled installation
Mount the ceiling frame to the hole, fix the square led light panel as showed in the above A.
2, Fix square led light panel
Fix the wall frame to the wall with screws;
(2,) Settle the driver into the frame;
(3,) Screw the square led light panel on four angles of the frame and tighten the screws;
(4,) Fix the hanging rope to the ceiling;
(5,) Screw the hanger into the threads in the four angles of the panel;
(6,) Adjust to the proper height.
5, Panel Parameter:
40W 60*60cm 4000-5000 Pure White Ra>80 square led light panel
Factory Demonstration:
square led light panel Production:
Model No
CST-LP-6060-40W
Power
40W
Size
600*600*10mm
LED Qty
196 SMD2835
Luminous Flux
85-90lm/W
CCT
2800-6500k for option
CRI
> 80
Beam Angle
120 degree
Material
Aluminum Alloy + Acrylic
Power Factor
0.93
Certificate
CE,ROHS,FCC,SAA
Warranty
3 years
