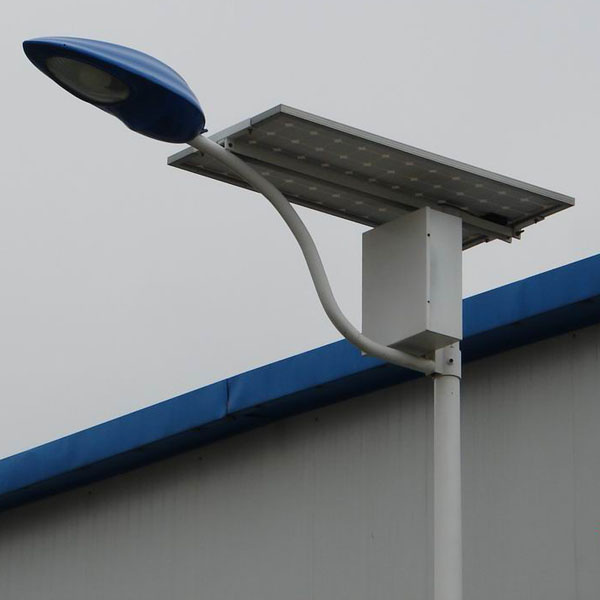

4.5kwh Solar LED Street Light with 30W
| Price: |
US $ 320-400/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |
4.5KWH Solar LED Street Light with 30WProduct Details1. LED lamp: Super bright LED,5500-6500K for choice, 120LM/W, IP65 cast aluminum lamp housing.
2. solar panel: High efficiency polycrystalline solar pane, with aluminum frame, tempered glass and junction box.
3. battery: Maintenance free gelled valve regulated sealed battery, deep cycle.
4. solar controller: Intelligent solar controller, IP68 waterproof, with protection functions and energy saving modes etc.
5. battery box: IP 68 waterproof battery underground box (battery box on pole top is optional)
6. cable :Cable to meet relevant solar lighting purpose
7. light pole: Optional light pole made of Q235 quality steel, hot dipped galvanized & plastic powder coated, rust proof. With light arm, flange base & anchor bolts, solar panel bracket and screws.Product Parameter| LED Lamp | DC12V 42W high power LED, white, 4200LM with cast aluminum lamp housing. |
| Solar Panel | High efficiency crystalline silicon 150Wp |
| controller | 12V/24V 15A, with over-charging, discharging, reverse-connection protections. |
| Battery | 200Ah/12V*2PC gelled valve-regulated sealed battery, deep cycle. |
| Battery Box | Steel box, galvanized corrosion proof treatment, used for placing of battery and controller; |
| Light pole | 5~6 meters, quality steel, HDG & plastic coated, wind resistance ≥150KM/H |
| Accessories | Arm, solar panel brackets, screws, cable and battery box etc. |
Note:1. Above configuration is designed on averaged insolation 4.5 kWh/m2/day
2. Lighting time: 12 hours per night, 3-4 overcast days
AdvantagesA. Highway
B. City main road
C. School campus road
D. Sidewalk
E. Pathway
F. Farm & ranches lighting
G. Villa lighting
H. Landscape lighting - park, square etc.
In order to design and quote the solar street light exactly, please inform us below information:1. The installation city
2. LED lamp power
3. Light pole height
4. Lighting hours per nigh
5. Backup rainy days
6. Quantity you need
| Prod Model: |
HW-4.5-30W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Light Pole: |
6 Meters |
| Solar Panel Type: |
Mono or Polycrystalline |
| Light Pole Material: |
Q235 Quality Steel |
| Solar Controller: |
Waterproof and Intelligent |
| Package: |
Carton and in a Bulk |
| Environmen: |
Eco-Friendly |
| Light Source: |
LED Lamp |
| Lamp Body Material: |
Aluminum Alloy |
| Light Type: |
Solar |
| Color Temperature: |
Pure Wihte |
| Technics: |
Electroplating |
| Illumination Time: |
12h |
| Charging Time (',H): |
8 |
| Usage: |
Highway,Park |
| IP Rating: |
IP65 |
| Certification: |
FCC CCC |
| With Light Source: |
With Light Source |
| Power: |
30W |
| Cell Type: |
Gel Battery |
| Voltage: |
DC12V |
