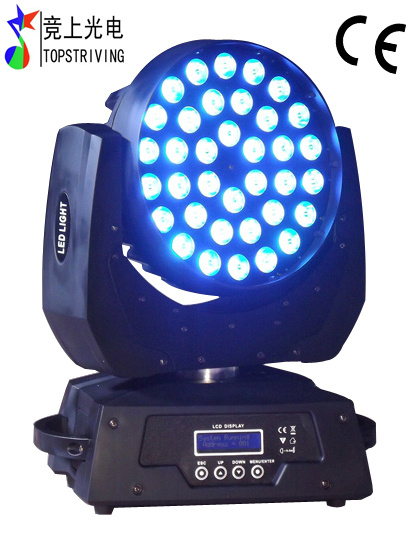

LED BEAM 36
TECHNICAL SPECIFICATIONS:
Power supply: 90-240 AC 50/60 Hz
Power consumption: 150W
100, 000 hours of LED life
3W USA CREE XPE red/green/blue/white each 8/10/10/8 PCS
DMX-control-channels: 13/16
DMX-512-connection: 3-pin XLR
Operational modes: DMX, Master/Slave, Stand Alone & Sound Active
16 bit smooth and precise resolution for pan/tilt movement
X/Y auto repositioning, 0-100% linear dimmer,
Tilt: 270-degree, LCD DMX menu system
Fan cooled, Shutter: Pulse effect; Random strobe slow to fast
Pan: 540-degree
Stepper motors with micro stepping
Dimensions: 310*260*150mm
Weight: 5.10kgs
Maximum ambient temperature ta: 45° C
PARAMETERS:
1.36psc 3W USA CREE XPE red/green/blue/white each 8/10/10/8
2.4 operatioal modes: DMX, Master/Slave, Stand Alone&Sound Ative
3.16 bit smooth and precise resolution for pan/tilt movement
4. X/Y auto repositioning, 0-100% linear dimmer
5.13/16 DMX channels
6. Tilt: 270-degree, LCD DMX menu system, 25 sub menus in good order for easy operating
7. Pan: 540-degree
8. Hanging bracket included, 3-pin XLR In/Out
9. Fan cooled, Shutter: Pulse effect; Random strobe slow to fast
10. Stepper motors with micro stepping
11. Power Consumption: 200W max
12. Dimensions(L*W*H): 310*260*150mm
13. Weight: 5.10kg
OUR SERVICE:
1. Your inquiry related to our products or prices will be replies in 24 hours.
2. OEM&ODM, any your customized lightings we can help you to design
And put into product without any charges
3. Shipping method: DHL, UPS, FedEx, TNT door to door service, by sea, by air, etc
4. Promised After-sales Service
5. Definitely high brightness with good material inside
6. Customised LED Quantity Design
|
Function of the control channels |
|
13-channel mode |
|
Channel 1 |
Horizontal movement (Pan) |
|
Channel 2 |
Vertical movement (Tilt) |
|
Channel 3 |
strobe from slow to fast |
|
Channel 4 |
master dimmer from slow to fast |
|
Channel 5 |
red dimmer from 0-100% |
|
Channel 6 |
green dimmer from 0-100% |
|
Channel 7 |
blue dimmer from 0-100% |
|
Channel 8 |
white dimmer from 0-100% |
|
Channel 9 |
color macros |
|
Channel 10 |
preset shows |
|
Channel 11 |
blackout when PAN/TILT moving, reset, sound active |
|
Channel 12 |
increasing brightness, then decreasing brightness, color changing |
|
Channel 13 |
running speed adjustments of channel 12 preset shows |
|
16-channel mode |
|
Channel 1 |
Horizontal movement (Pan) |
|
Channel 2 |
pan fine 16 bit |
|
Channel 3 |
Vertical movement (Tilt) |
|
Channel 4 |
tilt fine 16 bit |
|
Channel 5 |
pan/ tilt running speed adjustments |
|
Channel 6 |
strobe from slow to fast |
|
Channel 7 |
master dimmer from slow to fast |
|
Channel 8 |
red dimmer from 0-100% |
|
Channel 9 |
green dimmer from 0-100% |
|
Channel 10 |
blue dimmer from 0-100% |
|
Channel 11 |
white dimmer from 0-100% |
|
Channel 12 |
color macros |
|
Channel 13 |
preset shows |
|
Channel 14 |
blackout when PAN/TILT moving, reset, sound active |
|
Channel 15 |
increasing brightness, then decreasing brightness, color changing |
|
Channel 16 |
running speed adjustments of channel 12 preset shows |
