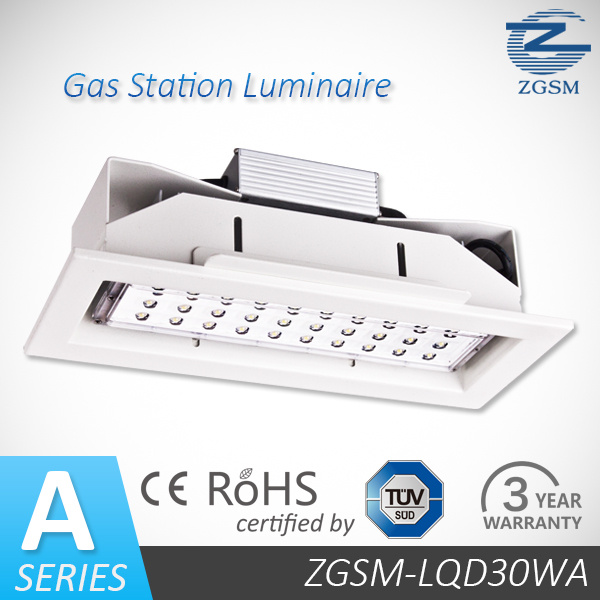

35w LED Canopy Light, Recessed Light CEapproved (ZGSM-LQD30WA)
High Quality and Brightness LED Light Source
Stable and Efficient LED Driver
Utilizing World's leading MEAN WELL® LED Driver, Great luminaire stability, lifespan & Optimal Performance Status.
Optimal Heat Sinking Performance
Use of the good thermal grease combining MCPCB and aluminium radiator closely, keeps every LEDs obtaining optimal effects of heat dissipation
Light attenuation of LEDs under safe control with adequate heat sinking area and excellent air flow design
Designed the different beam angle directly from LEDs lens, available in 60° and 120° illuminated angle, plus the mirror surface processed technics, effectively collect the invalid light and reflect them into effective
Exclusive Appearance Design with Patents
Modular design for lighting parts, makes maintenance more simple
Specifications
Model No. ZGSM-LQD30WA
Electrical SpecificationsLED Power30W
Lamp's Power35W
Operating Voltage100-240VAC, 50/60Hz 12V/24VAC
Optimal Operating Temp-40ºC ~ +50ºC
Operating Humidity10% ~ 90%
Power Fact(PF)> 0.95
Driver Efficiency> 90%
Photometric SpecificationsLED Luminous Flux3600 lm- Initial
3300 lm - Maintain
LED Luminous Efficiency110 lm/w
CRIRa ≥ 75
CCT
Mechanical SpecificationsIP RatingIP20
Warranty3 year
Heat RadiatorAnodized Aluminum
LensPlastic (PC)
Fixture Dimension365 X180 X130 mm (14.37 X7.09 X5.12 inches)
Fixture Weight3.2 kg (7.1 lbs)
Packing InformationPacking Type1unit /CTN.
Packing Dimension420 X205 X195 mm (16.5 X8.1 X7.7 inches)
Packing Weight4.0 kg
