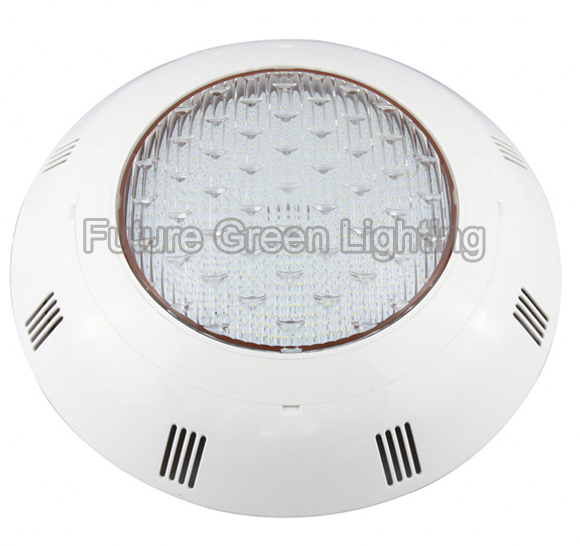

Product name: RGB LED pool light (FG-UWL298*76P-441S3014-7COC )
Size: 298*76mm
Material: PC
LED Type: SMD3014 Super Bright led
Light source: 252pc/333PCS/441PCS
Power: 18W/24W/35W
Voltage: AC12V/24V
Color: 7color, single color
Color changing model: Inner control, switch on/off conctrolled
The length of the wire: 2meters
Installing model: Hanging
Program:
1. RGB inner controlled
When the power is on, the color changed automatically as below:
A. RGB(Red+Green+Blue)
B. Red
C. Orange(Red+green)
D. Green
E. Skyblue(Green+blue)
F. Blue
G. Purple(red+blue)
2. RGB switch on/off control
It can be worked without remote, when power is on, the color is changed automatically like no. 1, Turn off the power and turn it on again in 1-3seconds, it will be the next color changing model, the order is as follows(all are in speed grade 4):
A...Color chasing (horse-race) changing in clockwise pattern
B. Color chasing (horse-race) changing in Counterclockwise pattern
C. 7 color changing jumpy
D. 7 color changing gradually
E. 7 color changing gradually( 2nd)
LED Swimming Pool Lights Features:
1. Adopt super-high bright LED as the light source and any single color is available, like red, green, blue, yellow, white and RGB colors. It is remote control.
2. Adopt thick glass as the body shell which is corrosion resistant and quick heat dispelling.
3. It is IP68
4. Longer life-span, above 50, 000 hours.
5. Low consumption, energy saving and environmental protecting.
6. The light color will be more easily to release heating. So they has longer life-span than normal DIP-LED PAR56 underwater light.
7. The light is more bright-colored and more penetrating in water than normal DIP-LED PAR56 underwater light.
LED Swimming Pool Lights Installation procedure
1. Screw the bracket into the wall
2. Mount the clip of the bracket into the hole of the light
3. Screw the detailed illustrations in the below pictures
LED Swimming Pool Lights Cautions
1. Work with AC12V, otherwise the light will be possibly damaged
2. This light should be installed not deeper than 50cm underwater
3. The power wire of the lights shall be joined with other power wire out of the water. Waterproof treatment should be done if the joint is in the water otherwise there is risk for water intrusion.
4. The light should be in the water for the test of remote function or other functions, and don't test it more than 3 minutes out of the water otherwise the light will be possibly damaged or caused disfunction. If the user is not available to test it in the water, then please shut off the light every 3 minutes to be cold for the new test
|
Model No.: |
FG-UWL298*76P-441S3014 |
|
Material: |
PC |
|
LED qty: |
441pc |
|
LED type: |
Super bright SMD 3014 |
|
Power: |
35W |
|
Voltage: |
AC12/24V |
|
Color: |
RGB switch on/off controlled |
