Resin Filled LED Underwater Swimming Pool Light

Resin Filled LED Underwater Swimming Pool Light
Price: US $ 55-58/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Western Union
IP68 35W Wall Mounted LED Pool light

1. Item No.: FG-UWL260*40-252P
2. Dimension(mm): 260*40mm
3. Material: PC
4. Color: RGB/White/Green/Blue/Warm White
5. Voltage(v): AC 12V
6. LED Qty(PCS): 252pcs
7. Power(w): 18W
8. Viewing angle: 120degree
9. Net Weight (kg): 1.25

10. Packing: 10PCS per exported carton

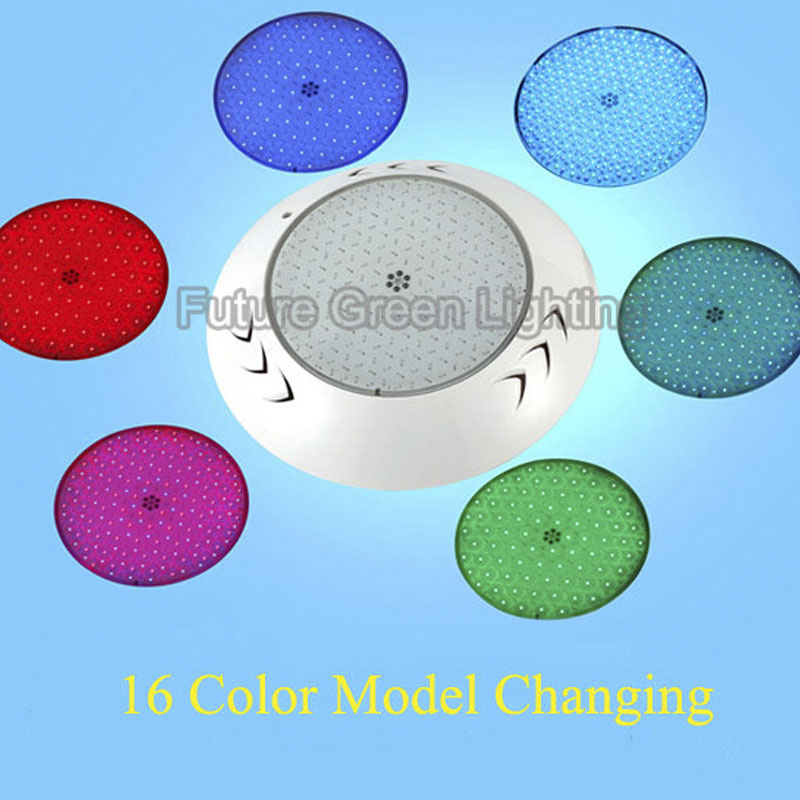

RGB Control Method:
1, Auto changing, built inside
2, RF remote control
3, Switch Power On/Off
4, RF remote + Switch power On/Off
5, External RGB controller

Applications:

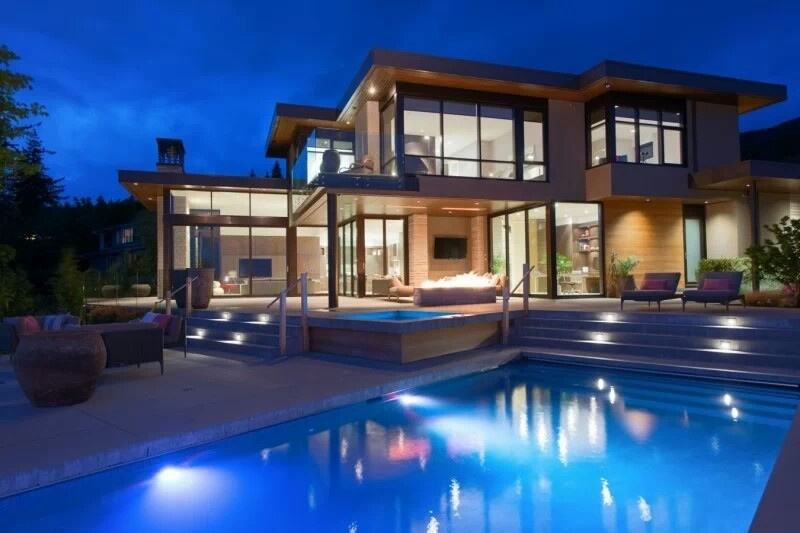

It is used in swimming pools, fountains, scenic ponds' illumination and decoration.

2. Features:
1. Adopt super-high bright LED as the light source and any single color is available, like red, green, blue, yellow, white and RGB colors. It is remote control.
2. Adopt thick glass as the body shell which is corrosion resistant and quick heat dispelling.
3. It is IP68
4. Longer life-span, above 50, 000 hours.
5. Low consumption, energy saving and environmental protecting.
6. The light color will be more easily to heat dissipation. So they has longer life-span than normal DIP-LED PAR56 underwater light.
7. The light is more bright-colored and more penetrating in water than normal DIP-LED PAR56 underwater light.


Installation procedure
1. Screw the bracket into the wall
2. Mount the clip of the bracket into the hole of the light
3. Screw the detailed illustrations in the below pictures

Cautions
1. Work with AC12V, otherwise the light will be possibly damaged
2. This light should be installed not deeper than 50cm underwater
3. The power wire of the lights shall be joined with other power wire out of the water. Waterproof treatment should be done if the joint is in the water otherwise there is risk for water intrusion.
4. The light should be in the water for the test of remote function or other functions, and don't test it more than 3 minutes out of the water otherwise the light will be possibly damaged or caused disfunction. If the user is not available to test it in the water, then please shut off the light every 3 minutes to be cold for the new test

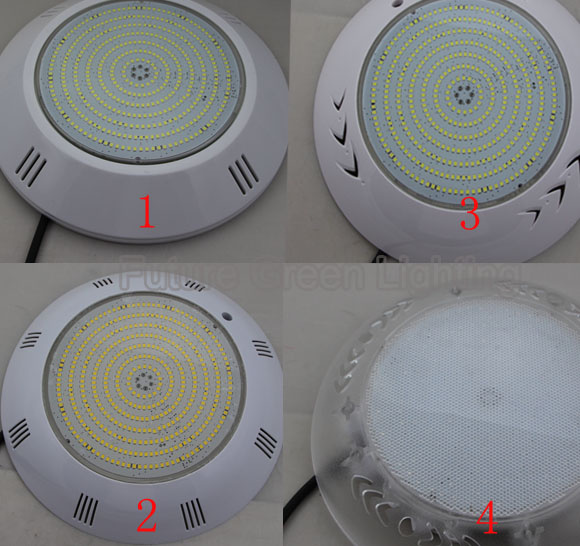

The shell type:


Technology:

Engineer case:


Item No.LED SourceWattage  (W)Voltage                  (V)Emitting ColorMaterial
FG-UWL260*40-252PSMD3014                                    SMD2835  18WattAC 12V/24V     Warm White;         Cool White;Yellow;              Red;Green;Blue
RGB
PC
FG-UWL260*40-333PSMD3014
SMD2835
24watt
FG-UWL260*40-441PSMD3014
SMD2835
30watt
FG-UWL260*40-531PSMD2835 35watt
FG-UWL260*40-630PSMD2835 42watt

Prod Model: FG-UWL260*40-252P
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LED Qty: 252PC 3014SMD
Power: 18W
Single Color: Warm White; Cool White, Yellow,Red,Blue,Green
Installation: Wall Mounted
Warranty: 1year
IP Rating: IP68
With Light Source: With Light Source
Application: Pond
Style: Modern Chinese Style
Voltage: 12V
Certification: LVD
Emitting Color: Full Color
Lamp Body Material: Plastic
Lampshade Material: Plastic
Base Type: Wall Mounted

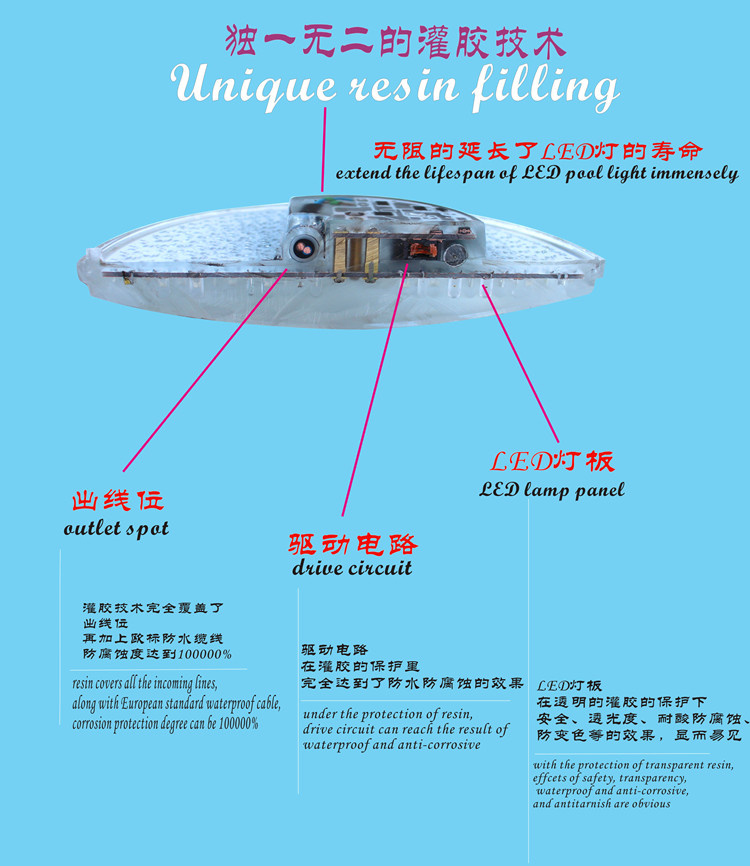

Technics: Epoxy Resin Filling
