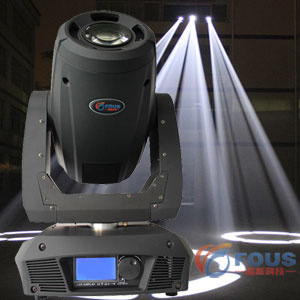

15R SPOT PRO FEATURES
Brighter:
(New 330W Lamp Source Brings Incomparable Pure Brightness)
Small size but stronger:
(Comparable Output Of 1500W Fixtures, but 1/5 Power Consumption and 1/3 size Only 23kg, 41*37*75cm)
Best color system:
(CMY color mixing effect and 6 dichroic colors, YL optic system)
Best gobo system:
(2 gobo wheels: 14 static gobos and 8 rotating replaceable gobos)
Most Funtional:
(Zoom, Iris, Prism, Focus, Frost Filter, Shutter, with full Moving Heads Spot/Wash functions)
TECHNICAL PARAMETERS
POWER SUPPLIE
Input power: AC110-240V 50/60 Hz
LAMP SOURCE
Lamp: Yodn MSD R17 350W, 1, 500hr, 8000k(Optional Osram Siruis HRI 330W)
Power Consumption: 350W
OPTICS
Lens: Anti-reflective coated lens
YiLong optic system
Output Lux: 10, 500lux at 20 meters
COLOR SYSTEM
Colors: Basic color wheel with 6 dichroic mirrors, plus white, two direction rainbow effect.
CMY Variable Color Mixing for Infinite Color Possibilities
GOBO SYSTEM
8 rotating gobos plus open, all gobos can be easily replaceable and gobo indexing
Static gobo wheel with 14 indexing gobos plus open, gobo shaking in different speed
EFFECTS SECTION
Prism and prism rotating, with 16 prism macros
Linear dimmer in precise speed from 0% ~ 100%
Stepless frost, 0%-100% linear change frost
Motorized focus
Iris from 5%~100% with pulse iris effect.
Zoom: 9° ~27° Linear zoom
Strobe/shutter: High speed shutter, 0-13 Hz or random strobe
CONTROL AND PROGRAMMING
DMX Channels: 3 DMX Modes-21/23/34 Channels DMX
Control: 3-pin&5-pin DMX
Control board with LCD graphic display
BODY
Remote controller lamp's switch function, display light and lamp's using time
Structure: Heat-proof plastic+module pressing alloy materials
MOVING BODY
Pan and tilt movement: 8 and 16 bit resolution
For smooth and precise motion
Movement: Pan: 360° /540° Optional, Tilt: 270°
Speed of pan/tilt movement adjustable
Scan position memory, auto reposition after unexpected movement
WEIGHT&SIZE
Weight: 23kgs
Dimensions: 409*419*541mm
