2. Its advantages and characters
2.1 Adopt patended SCOB light source ( stereoscopic chip on board );
2.2 Unique design makes it different from existing led bulbs of public mould;
2.3 Opitical reflector design keeps the same appearance and luminous efficiency with the traditional metal halogen lamp, which is easily accepted by the wide users;
2.4 Directly replace 75W halogen lamp, saving at least 75% energy;
2.5 Long lifespan for 45,000 hours, if calculating as 4 hours every day, its average lifetime can reach more than 30 years, saving energy and money for your customer;
2.6 No infrared and ultraviolet radiation;
2.7 Accordance with the international safety standards such as UL, CE, GS, TUV, SAA and so on;
2.8 With CE and RoHS certificate.
3. Technical Parameters

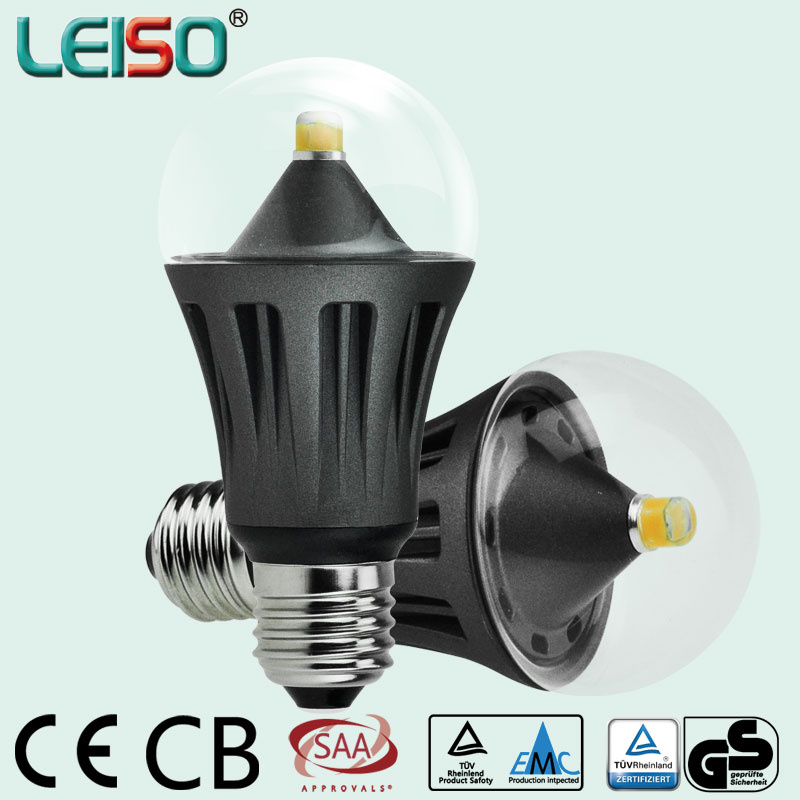

Model No.: LS-BA609-CW/CWW
Input voltage: 85-265VAC
Power : 8W
Frequency : 50~60Hz
LED Type : CREE chip SCOB type
Luminous efficiency : 550Lm, 580Lm, 600Lm,620Lm
Color temperature : 2700K, 3000K, 4000K, 5500K for optionm or customization according to your requirements.
Color rendering index : Ra ≥ 80 or customization according to your requirements.
Adjustable light or not for option
Beam angle : 24°/ 40°
Products size : Φ111×55.5mm
Material : aluminum alloy
| Item No. | Description | Power | Lumens(CCT) | Product Dimension | Voltage | Dimmable | Unit Price (EXW) | Packing Data |
| Item size | packing |
| LS-BA609-CWW/CW | * SCOB LED bulb
* E27/E26/B22 base
* CREE Chip
* Beam angle : 330°
* Power factor : >0.8 | 8W | CRI >80, 550 lm (2700K)
CRI >80, 580 lm (3000K)
CRI >80, 600 lm (4000K)
CRI >80, 620 lm (5500K) | Φ60*H120mm | 100V~240V AC | NO | $8.28 | 60x118mm | 48pcs/carton 500x365x365mm 12.65kg |
| LS-BA609-CWWD/CWD | 220V-240V AC | Yes | $9.28 |
| LS-BA609-A-CWW/CW | CRI >90, 470 lm (2700K)
CRI >90, 490 lm (3000K)
CRI >90, 500 lm (4000K)
CRI >90, 550 lm (5500K) | 100V~240V AC | NO | $8.28 |
| LS-BA609-A-CWWD/CWD | 220V-240V AC | Yes | $9.28 |
Leiso lighting tech. Co., Ltd. (dongguan) is professional manufacturer for LED lighting integrate research & development, production, sales and service. The company offers complete product categories including LED lamp series, LED spotlight, LED bulb, LED t8 tube light, LED downlight, LED flexible tube light, LED module etc, which can be widely used in indoor lighting, outdoor landscape lighting, solar LED light, electronics, auto, communication, and so on.
Companies adhering to the philosophy of "customer priority, quality first " and the strategic policy of "quality, excellent service " to lead of energy saving LED lighting market. With years of experience in production and research and development. Excellent product quality recognition by our customers.
The factory total area of about 6, 000 square meters, high standards of clean production workshop, with automatic solid crystal, automatic wire bonders, automatic irrigation plastic, automatic color separation and packaging equipment. 300kk annual output more than the product of the making process of purification, anti-static work of international standard facilities closed. More than 200 employees, including 38 of engineering, QA and R & D staff.
"science and technology to create the future, quality creates brand. " LEISO based on domestic growth abroad. "quality first, customer first, innovation, service first"is the established policy of the company, to the colorful LED products, customers willing to form a close alliance, to add luster to the modern human.
