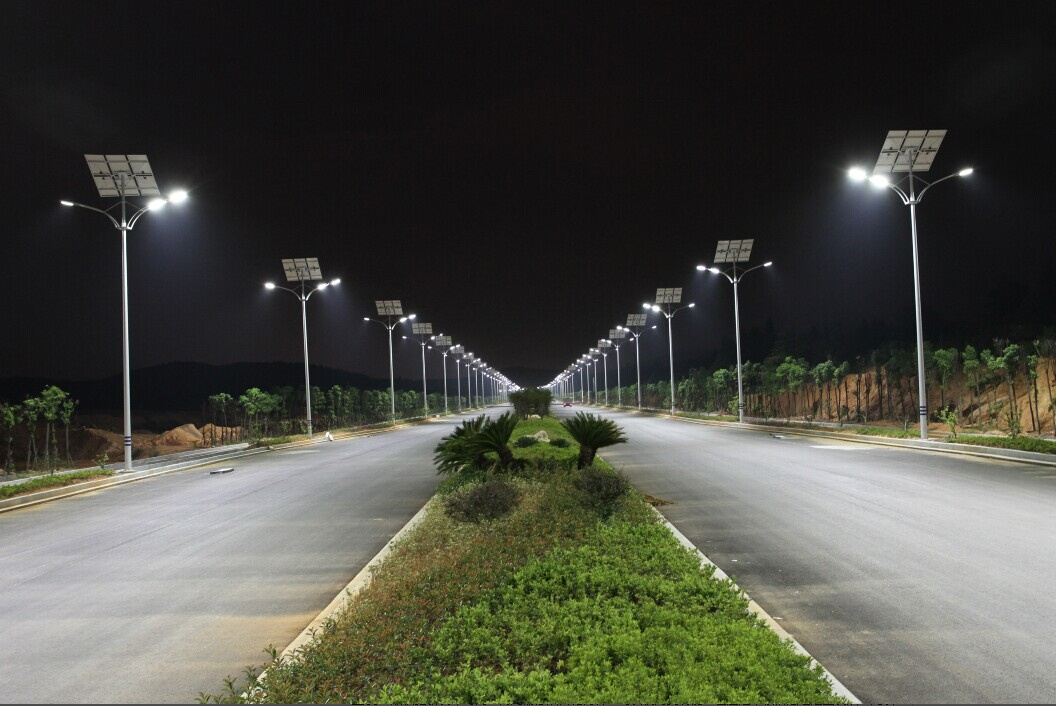

30W Outdoor Solar LED Street Light
1.Pole and solar panel bracket
Height:6m.
Diameter:65/140mm, 3mm thickness,
Flange:280*280*14mm
Hot deep galvanized plastic electrostatic spraying,
Working life≥25 years
2.LED Lamp
Lighting source:30W
Aluminum alloy die-casting molding with toughened glass
Working life>50000 hours.
3.Solar Panel
Maximum power:90W
Polysilicon solar panel
Working temperature:-40ºC--85ºC
Power tolerance:±5%
Working life ≥ 20 years
4.Battery
120AH
Gel-battery
Working life≥3 years
5.Battery Box
120AH battery box/engineering plastics,
Working life≥20 years
6.Controller
10A/12V working life≥3 years
Protection:
·Overheating ·Over discharging ·Over charging
·Load overload ·Load short circuit
·PV reverse polarity ·Battery reverse polarity
Features:
1. The solar street light system configurations can be customized based on client's specific project requirement and weather condition.
2. The batteries are suggested to be placed in battery box and buried in a underground cement pit. In this way, it can avoid overhigh temperature due to sunshine exposure or too cold weather in Winter, wateproof and theftproof, easy for replacement in late period.
3. The pole patterns are standardized type, practical and economical, which can also be customized as per client's specific requirement.
4. All parts are certified by CE and ROHS certificates, meeting Europe standard.
No. |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
Lamp power |
30w |
40w |
50w |
60w |
70w |
80w |
100w |
120w |
150w |
180w |
Color Temperature |
3000K-6000K |
3000K-6000K |
3000K-6000K |
3000K-6000K |
3000K-6000K |
3000K-6000K |
3000K-6000K |
3000K-6000K |
3000K-6000K |
3000K-6000K |
Lamp Luminous Efficiency
(lm/w) |
95-105 |
95-105 |
95-105 |
95-105 |
95-105 |
95-105 |
100-108 |
100-108 |
100-108 |
100-108 |
CRI (Ra>) |
72 |
72 |
72 |
72 |
72 |
72 |
72 |
72 |
72 |
72 |
Power Factor |
0.95 |
0.95 |
0.95 |
0.98 |
0.98 |
0.98 |
0.98 |
0.98 |
0.98 |
0.98 |
Input Voltage(V) |
90-264 |
90-264 |
90-264 |
90-264 |
90-264 |
90-264 |
90-264 |
90-264 |
90-264 |
90-264 |
Beam angle |
130°×60° |
130°×60° |
130°×60° |
130°×60° |
130°×60° |
130°×60° |
130°×60° |
130°×60° |
130°×60° |
130°×60° |
Working Temperature(ºC) |
-40 - 60 |
-40 - 60 |
-40 - 60 |
-40 - 60 |
-40 - 60 |
-40 - 60 |
-40 - 60 |
-40 - 60 |
-40 - 60 |
-40 - 60 |
IP Rating: |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
