Description:

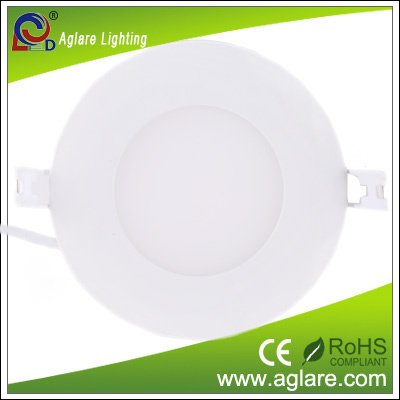

YJ-PE121-5050W30
ø Output power: : 5W
ø LED type: SMD5050
ø LED quantity: 30PCS
ø Luminous intensity: 315.14LM
ø Beam angle: 120°
ø Maximum size: D*H=121*26MM
ø Net weight: 252.2g
ø Housing material: ø Lifespan: >30000H
Application:
Suitable for office, family, hotel, restaurant, hall, pub, casino, show business, lighting, marketplace, meeting room and exhibition
After-sales service:
All products are guaranteed to use in one year. Under the right and normal using condition, quality warranty is based on correct conservation, assemblage, and maintenance. As incorrect usage, and disobeying product operation, it's not guaranteed. To the problem within promised time, "Aglare" will solve it by repair, substitute accessories or replacement for your option. Upon exceeding the promised time, there will be material and maintenance fees to be paid by customer.
Type
|
input voltage
|
PF
|
Output wattage
|
Output Luminous Flux
|
beam angle
|
product size
(MM)
|
Recommended opening size (MM)
|
Net weight (including driver)
|
YJ-PE121-5050W30
|
AC90-260V
|
0.9
|
5W
|
315.14LM
|
120 °
|
D * H=121*26
|
D =109
|
252.2g
|
YJ-PE172-5050W50
|
AC90-260V
|
0.9
|
9W
|
540.34LM
|
120 °
|
D * H=172*26
|
D =160
|
427.4g
|
YJ-PE223-5050W70
|
AC90-260V
|
0.9
|
12W
|
770.86LM
|
120 °
|
D * H=223*26
|
D =211
|
710.0g
|
YJ-PE270-5050W90
|
AC90-260V
|
0.9
|
16W
|
960.86LM
|
120 °
|
D * H=270*26
|
D =256
|
958.5g |
Aglare Lighting Co., Ltd established in 2001 and started to produce our own products in the end of 2004, covering an area of 5000 square meters, which contains LED Components producing department and LED Lighting producing department.We're an enterprise of researching and developing, making and marketing all in one.There are two type products, one is LED component, mainly are DIP LED, SMD LED, Multi-chip LED.The other is LED lighting,
Mainly are LED strip, LED tube light, LED module, LED floodlight, LED down light, LED ceiling light, amusement LED lamps and LED holiday lights etc.Especially for jewelry counter LED strip.We've developed 6 different colors to meet the market requirement, which can be used in different jewelry counters and widely applied in the domestic cities.It greatly increases the sales of Jewelry Company, For this reason, we gain extensive praise.
All of our products have obtained EU's CE, RoHS and EN60852 certificates, at the meanwhile, our factory have passed the factory audit of TUV.Aglare Lighting Co., Ltd strict control materials, specially the main parts of LED lighting which are LED and LED driver, those are produced by our own, so that to increase the stability in quality and advantage in price.About the product innovation, there are 7 utility model patents, 5 appearance patents and 3 logo patents of our products."Innovation is root and quality is life "Therefore our company always keep the basic rule, that is the best quality and relative lower price.Meanwhile, we can design and manufacture according to the customer's demands, meet the various requirements of customers.We are willing to form to alliance with vast customers to win-win situation.
