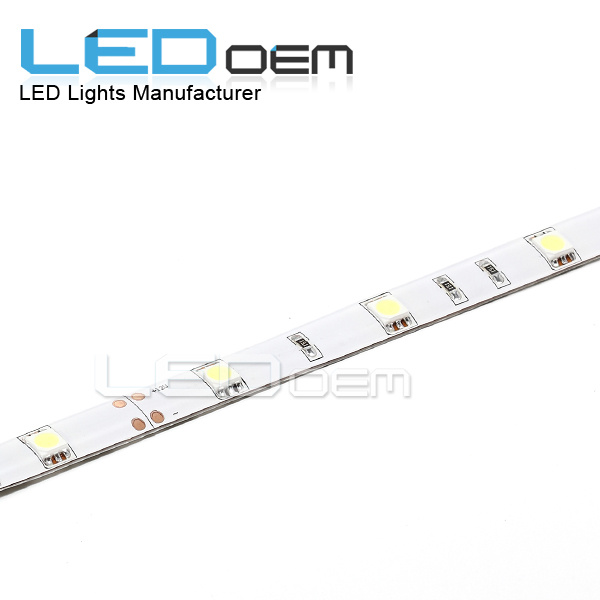

Strip Light LED
Description
We have been successfully providing our clients with a wide range of Waterproof LED strip. Our Flexible LED Ribbons are extensively used in the rainy season. Known for its cost-effective price, our range is made using quality material and components. In order to attain utmost client satisfaction, we ensure that these LED Strips are flawless and have a longer service life.
Features:
1. Flexible LED strip easy for installation, with 3M adhesive on the back.
2. Runs on 12-voltage systems like solar cell charged batteries
3. Major reduction in power costs
4. 120-degree wide angle illumination
5. Long life: 50, 000hors
6. 5 meters/reel, cuttable every 3 LED
7. Better performance and more reliable quality
Specification:
Model No.: SZ-FS5050-30-A
1. Type: SMD5050 Flexible LED strip
2. Dimension: 5000mm (L) x 10mm (W) x 3.0mm (Thickness) (5 meters/reel, 3-LEDs Cuttable)
3. LED Quantity: 150PCS SMD5050 LED per reel
4. Color Range: Red, Yellow, Blue, Green, White (cool white/ warm white/pure white)
5. Color Temperature: Cool White: 5500-6500K, Warm White: 3000-3500K, Pure white: 4000-5000K.
6. Wavelength: R: 620-630nm, G: 510-525nm, B: 455-470nm, Y: 585-595nm
7. Energy Consumption: 36W per reel
8. Working Voltage: DC 12V
9. Current Consumption: 3A per reel
10. Beam Angle: 120 Degree
11. International Protection: IP20 (non-waterproof), IP65 (Crystal Epoxy Waterproof), IP66 (Solid Cover Tube Waterproof)IP67(PVC+ Crystal Epoxy Waterproof)
Strip Light LED Application
This 30PCS SMD LED 5050 Flexible Light Strip is widely used to architectural decorative lighting, amusement park, theater & aircraft cabin mood lighting, emergency hallway lighting, auditorium walkway lighting, stairway accent lighting, concealed lighting, backlighting for signage letters, channel letter lighting, emergency exit path lighting and cove lighting.
|
Model |
LED Type |
LED Qty |
Color |
LED/Lumen |
Power |
Current |
Warranty |
|
SZ-FS5050-30-A |
5050 |
30pcs/m |
Single |
14-16lm |
7.2w/m |
0.6A/M |
2years |
|
SZ-FS5050-60-A |
5050 |
60pcs/m |
Single |
14-16lm |
14.4w/m |
1.2A/M |
2years |
|
SZ-FS5050-30-B |
5050 |
30pcs/m |
Single |
10-12lm |
7.2w/m |
0.6A/M |
1years |
|
SZ-FS5050-60-B |
5050 |
60pcs/m |
Single |
10-12lm |
14.4w/m |
1.2A/M |
1years |
Shenzhen Tengmei Technology Co., Ltd. Was founded in 2008, Our business activities include R&D, manufacturing, marketing and after service support.
Tengmei has 5 years of experience and uses the latest technology in its manufacturing. We specialize in LED Tubes, LED Bulbs, LED Panel light, LED Ceiling light, LED Track light, LED Spot light, LED Strip Lights, LED Down lights. Most of our products are exported globally including Europe and North America.
Tengmei has expanded rapidly in recent years. We have passed ISO 9001: 2000 quality management system and quality certifications including RoHS, CE etc.
Want to know more contact us today.
