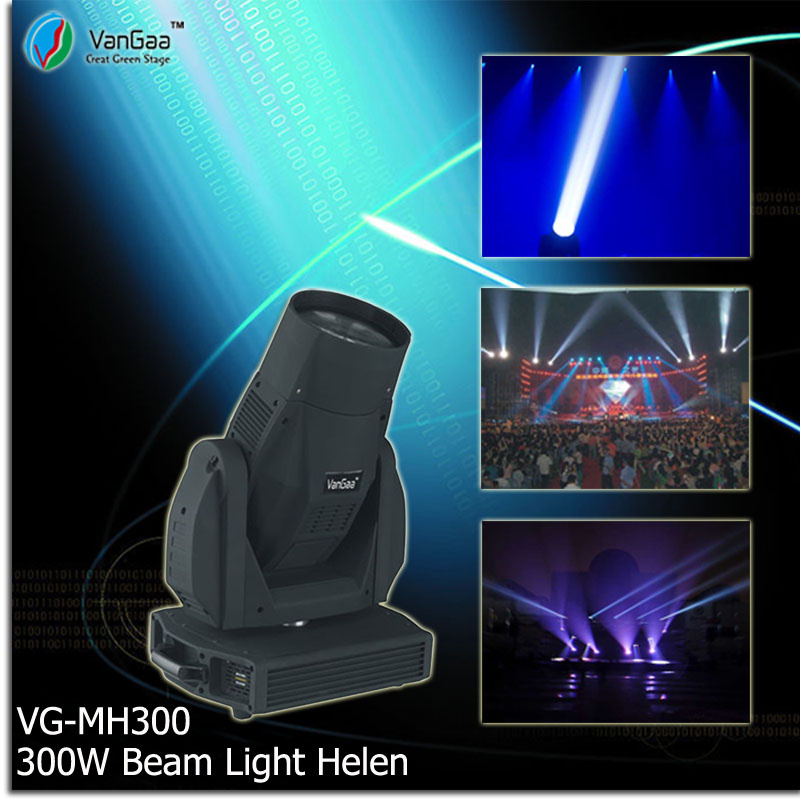

For the traditional stage performance need, we developed this new kind 300W beam light. It can shot out very great and brightness light beam. With the stage music voice and animation effect, it can reach very shock and brilliant stage effect. Sound active control let the beam dance with the music. DMX-512 international signal control will let you can edit the stage performance program by your ideal. 300W is only a little dim than the 700W Beam Light, other is the same with it.
Features
Control channel modes: 14 channels;
Horizontal: 540degree;
Vertical: 260degree;
Color: 7 colors+ white, with rainbow effect;
Fixed gobo wheels: 7 interchangeable, indexable gobos plus open with gobo shaking and gobo change in any shapes function shutter: Variable from 1-10 flashes per second or random strobe;
Dimmer: 0% ~100% full range dimming;
Beautiful blue and white LCD display, Chinese /English LCD display;
Can complete change DMX address, light reset and sound mode functions on the controller.
Specifications
Input power: AC110~220V, 50/60Hz
Power consumption: 450W
Light sources: NSD300W
Control signal: DXM512
Control DMX channel: 14CH
Carton size: 520*440*748mm(1PC/carton)
N. W.: 26kg/29kg
|
CHANNEL |
CONTROL |
DMX VALUE |
FUNCTION DETAILS |
|
CH1 |
Pan |
000←→255 |
0degree~540degree |
|
CH2 |
Tilt |
000←→255 |
0degree~260degree |
|
CH3 |
Pan Fine |
000←→255 |
0degree~8degree, 16 bit |
|
CH4 |
Tilt Fine |
000←→255 |
0degree~8degree, 16 bit |
|
CH5 |
X/Y Speed |
000←→255 |
From fast to slow |
|
CH6 |
Dimmer |
000←→255 |
From dark to bright |
|
CH7 |
Strobe |
000←→050 |
White |
|
051←→239 |
Strobe speed from slow to fast |
|
240←→249 |
Light on |
|
250←→252 |
Delay 3 seconds to reset |
|
253←→255 |
Light on |
|
CH8 |
Color wheel |
000←→015 |
White |
|
016←→031 |
Blue |
|
032←→047 |
Purple |
|
048←→063 |
Light blue |
|
064←→079 |
Green |
|
080←→095 |
Yellow |
|
096←→111 |
Temperature rise |
|
112←→127 |
Temperature reduction |
|
128←→191 |
Color flow from fast to slow |
|
192←→255 |
Color flow from slow to fast |
|
CH9 |
Gobo Wheel |
000←→004 |
White Color |
|
005←→009 |
Gobo 1 |
|
010←→014 |
Gobo 2 |
|
015←→019 |
Gobo 3 |
|
020←→024 |
Gobo 4 |
|
025←→029 |
Gobo 5 |
|
030←→034 |
Gobo 6 |
|
035←→039 |
Gobo |
|
040←→054 |
White Color |
|
055←→069 |
Gobo 1 (From slow to fast shaking) |
|
070←→084 |
Gobo 2 (From slow to fast shaking) |
|
085←→099 |
Gobo 3 (From slow to fast shaking) |
|
100←→114 |
Gobo 4 (From slow to fast shaking) |
|
115←→129 |
Gobo 5 (From slow to fast shaking) |
|
130←→144 |
Gobo 6 (From slow to fast shaking) |
|
145←→159 |
Gobo 7 (From slow to fast shaking) |
|
160←→207 |
Gobo flow from fast to slow |
|
208←→225 |
Gobo flow from slow to fast |
|
CH10 |
Gobo Rotation |
001←→127 |
Gobo backward manual rotation |
|
128←→191 |
Gobo from fast to slow veering, Gobo rotation |
|
192←→255 |
Gobo from slow to fast backward, Gobo rotation |
|
CH11 |
Frost |
001←→255 |
Frost |
|
CH12 |
Iris |
001←→199 |
Iris from big to small |
|
200←→225 |
Iris auto zoom in and zoom out from slow to fast |
|
CH13 |
Focus |
001←→255 |
Focus |
|
CH14 |
Reset |
255 |
Delay 3 seconds to reset |
