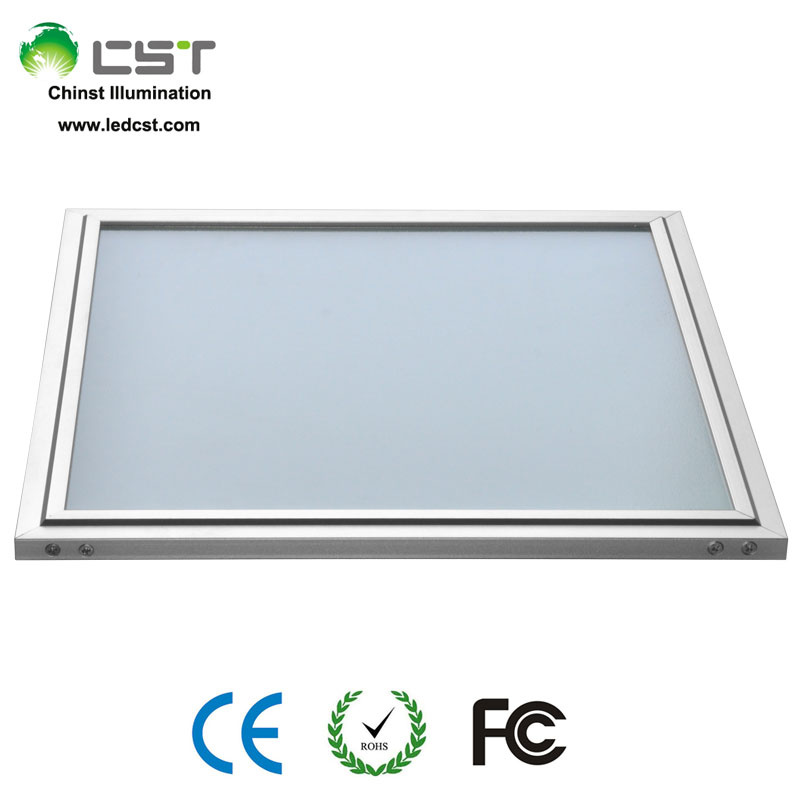

300*300 300*600 600*600 300*1200 20W 25W 40W led light panel
1, Advantages of led light panel:
Easy installation: Simply replace the grill lamp or false ceiling, or hang from the roof using chains;
led light panel with super slim of 10mm thinckness, making for attractive and versatile signage;
Edgewise, the LEDs emit evenly lighting through a LGP ( Acrylic ), the luminosity is bright, soft and comfortable for eyes;
Cooler than traditional display, versatile in size, shape and configuration;
led light panel with four sides illuminating,beat heat sink,with temperature rise less than 20 degree,good for extending the panel's lifespan;
Optimized circuit design ensures no interference with any other LEDs when a single one fails.
2, Feature:
led light panel with 80% less power consumption than traditional lighting source;
led light panel from Epistar or San'an with superb feature;
Ultra slim and light, with thickness only 10mm;
External high PF Constant Current LED Driver,instant start, No flickering and No humming, safe and reliable;
Edgewise, the LEDs emit evenly lighting through a LGP ( Acrylic ), the luminosity is bright, soft and comfortable for eyes;
led light panel light with long lifespan >50,000hours, 3 years warranty,CE,ROHS approved.
3, Applications:
led light panel are used for Ceiling, Walls, art gallery, the car, the counter,etc.
4, Installation:
1, Fix led light panel to the ceiling;
(1,) Embedded installation and replace the ceiling with the panel which has the same specifications;
A, Take off the ceiling and put the pannel into the ceiling from the diagonal;
B, Fix led panel light to the T shelf.
(2,) Inhaled installation
Mount the ceiling frame to the hole, fix the smd led panel light as showed in the above A.
2, Fix led light panel on the wall
(1,) Fix the wall frame to the wall with screws;
(2,) Settle the driver into the frame;
(3,) Screw the panel on four angles of the frame and tighten the screws;
(4,) Fix the hanging rope to the ceiling;
(5,) Screw the hanger into the threads in the four angles of the panel;
(6,) Adjust to the proper height.
5, Panel Parameter:
led light panel
Factory Demonstration:
|
Model No |
CST-LP-6030-25W |
|
Power |
25W |
|
Size |
600*300*10mm |
|
LED Qty |
132pcs SMD2835 |
|
Luminous Flux |
2100±100lm |
|
CCT |
2800-6500k for option |
|
CRI |
> 80 |
|
Beam Angle |
120 degree |
|
Material |
Aluminum Alloy + Acrylic |
|
Power Factor |
0.93 |
|
Certificate |
CE,ROHS,FCC,SAA |
|
Warranty |
3 years |
