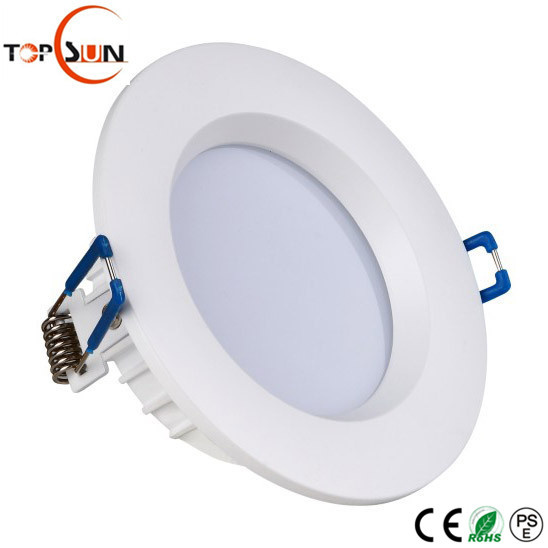

3" 6W Cutout 90mm LED Down Light

3" 6W Cutout 90mm LED Down Light


TOPSUN is a professional manufacturer mainly produce led downlights,there are 10 series different style and size downlights optional.Round or Square shape optional.CE RoHS PSE Approved.3 years warranty.

TPG-D01 Series LED DOWNLIGHT ,CE ROHS PSE Approved,3 years warranty. 6W/10W/12W/15W/18W/20W/25W/30W; 3 inch/4 inch/5 inch/6 inch/8 inch optional


TPG-D301-W6S2, Dia125mm*H60mm,90mm cutout size,6 Watt
TPG-D401-W10S2,Dia140mm*H80mm,120mm cutout size,10 Watt/12 Watt
TPG-D501-W12S2,Dia180mm*H80mm,150mm cutout size,12 Watt/15 Watt
TPG-D601-W15S2,Dia190mm*H80mm,170mm cutout size,15 Watt/20 Watt
TPG-D601-W25S2,Dia230mm*H88mm,200mm cutout size,25 Watt/30 Watt


Features:

1. Samsung smd5630/Epistar led smd2835

2. Aluminum Shell(sliver/white)

3.3/4/5/6/8inch

4. CE ROHS, warranty 3 years


D01-3inch Packing:

Outter Carton: 400*310*270mm

Net weight: 222g /pcs

PCS/Carton: 30pcs/box

Gross Weight: 7.0 KGS/CTN


3inch 6w LED Downlight Application:

Engineering, Home Furnishing, Interior.


TOPSUN Quality Control:

1.100% testing before aging.

2. Aging for no less than 24hours, and the switch is off-on aucomatically every 2minutes during aging procedure.

3.100% testing by safe tester (with 3700V high voltage) before packing.

4. Except normal CE, RoHS, PSE certificates for the finished products, we can provide IES files and ERP reports.


TOPSUN Services and terms:

Warranty: 3years, free replacement.

Lead time: 7-10 days.

Payment: TT, Western Union, Paypal, Money Gram.

Transportation: DHL, UPS, FedEx, Air, Sea, etc.

Description	Dimension				Power
LED Down Light	D01 Series - 3'' 4'' 5'' 6'' 8''Aluminum shell led downlight. D02 Series - 3'' 4'' 5'' 6'' 8''Plastic shell led downlight. D03 Series - 4'' 5'' 8'' 12'' Round ultra-thin led downlight. D04 Series - 6'' 8'' 12'' Square ultra-thin led downlight. D05 Series - 2.5" 3" 3.5" 4" 5" 6" 8" Round ultra-thin smd led downlight. D06 Series - 2.5" 3" 4" Aluminum shell cob led downlight.				5W ~ 30W
Voltage	AC85-265V 50/60Hz.
Led type	SMD5630, SMD3014, SMD2835.
Led chip	Samsung, Epistar.
Color temp	2800-3500k(WW); 4000-4500k(NW); 6000-6500k(CW).
Shell color	White
Efficiency	≥90%,Color lndex:80, PF:>0.92,Class C for Harmonic Current   Emition.
Lifetime	50.000hours
Lumin Drop	1,000HRS UNDER 2%,10,000HRS UNDER 10%, 40,000HRS UNDER 30%,While Average Using under,12 hours per day.
Certificate	CE, LVD, EMC, ROHS,PSE.
