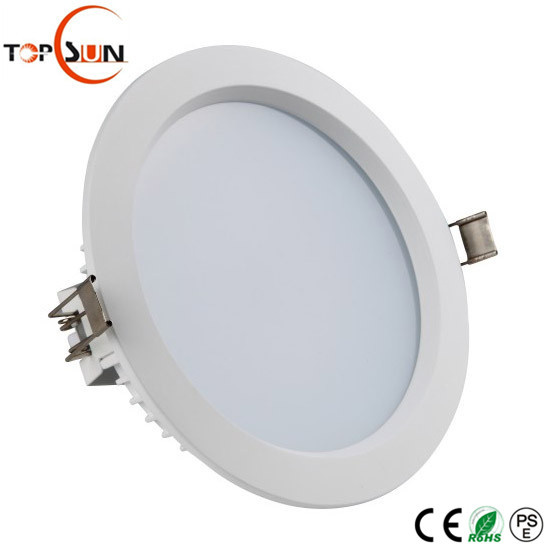

4 inch 10W Round LED Ceiling Light/Recessed Ceiling Light LED
Topsun is a professional manufacturer of LED Downlights,there are 10 series LED Downlights for optional with different size,CE RoHS PSE Approval.3 Years Warranty.
Welcome to send an inquiry to negotiate more details,thank you!
TOPSUN specification for recessed led retrofit light
Description | Dimension | Power |
LED Downlight | D01 Series --- 3'' 4'' 5'' 6'' 8'' Aluminum Shell SMD LED Downlight, D02 Series --- 3'' 4'' 5'' 6'' 8'' Plastic shell SMD LED Downlight, D03 Series --- 4'' 5'' 8'' 12'' Round ultra-thin SMD LED Downlight. D04 Series --- 6'' 8'' 12'' Square shape ultra-thin SMD LED Downlight. D05 Series --- 2.5'' 3'' 3.5'' 4'' 5'' 6'' 8'' Round ultra-thin SMD LED Downlight. D06 Series --- 2.5'' 3'' 4'' Aluminum Shell COB LED Downlight. | 5W ~ 35W |
Voltage | AC85-265V 50/60Hz ; |
Led type | SMD5630, SMD2835 |
Led chip | Samsung LED, Epistar LED; |
Color temp | 2800-3500k(WW); 4000-4500k(NW); 5500-6500k(CW); |
Shell color | White |
Efficiency | ≥90%,Color lndex:80, PF:>0.92,Class C for Harmonic Current Emition; |
Lifetime | 50.000hours; |
Lumin Drop | 1,000HRS UNDER 2%,10,000HRS UNDER 10%, 40,000HRS UNDER 30%,While Average Using under,12 hours per day; |
Certificate | CE, LVD, EMC, ROHS,PSE |
Applications of retrofit led downlight kit
Mainly applicable to living rooms, dining rooms, bedrooms, cabinet,shopping mall, hotels, office,kitchen,supermarkets,exhibition hall.
Features of TPG-D01 led downlight retrofit
1.Die-casting aluminum white shell
2.PC cover,transmittance>90%
3.White Reflector
4.High lumen Samsung 5630 SMD LED/Epistar 2835 SMD LED
5. CRI: >80Ra,PF>0.9
6.Isolated driver
7. 3 years warranty
8. CE ROHS,PSE certificated
D01 Series --- retrofit led recessed light
Model NO. | Series | LED | Dimension | Cutout Size | Watt |
TPG-D301 | 3inch | Samsung LED SMD5630 Epistar 2835 SMD LED | D125mm*H60mm | φ90mm | 6W |
TPG-D401 | 4inch | D140mm*H80mm | φ120mm | 10W |
TPG-D501 | 5inch | D180mm*H80mm | φ150mm | 12W/15W |
TPG-D601 | 6inch | D190mm*H80mm | φ170mm | 15W/18W/20W |
TPG-D801 | 8inch | D230mm*H88mm | φ200mm | 24W/25W/28W/30W/35W |
D02 Series --- recessed led retrofit light
Model NO. | Series | LED | Dimension | Cutout Size | Watt |
TPG-D302 | 3inch | Samsung LED SMD5630 Epistar 2835 SMD LED | D125mm*H77mm | φ90mm | 5W |
TPG-D402 | 4inch | D140mm*H93mm | φ120mm | 8W |
TPG-D502 | 5inch | D180mm*H95mm | φ150mm | 10W/12W |
TPG-D602 | 6inch | D190mm*H95mm | φ170mm | 15W/18W |
TPG-D802 | 8inch | D230mm*H100mm | φ200mm | 15W/20W |
D04 Series --- Ultra Slim Square led down light
Model NO. | LED | Dimension | Cutout Size | Watt |
TPG-D604 | Samsung LED SMD5630 Epistar 5730 SMD LED | D200mm*D200mm*H18mm | φ180mm*180mm | 15W |
TPG-D804 | D240mm*D240mm*H18mm | φ220mm*220mm | 15W/18W |
TPG-D1204 | D300mm*D300mm*H18mm | φ275mm*275mm | 20W |
TOPSUN Quality Control :
1. 100% testing before aging .
2. Aging for no less than 24hours, and the switch is off-on aucomatically every 2minutes during aging procedure.
3. 100% testing by safe tester (with 3700V high voltage) before packing.
4. Except normal CE, RoHS, PSE certificates for the finished products, we can provide IES files.
For more details,please feel free to contact me or send an inquiry directly,will try my best to reply you in time.Thank you!
