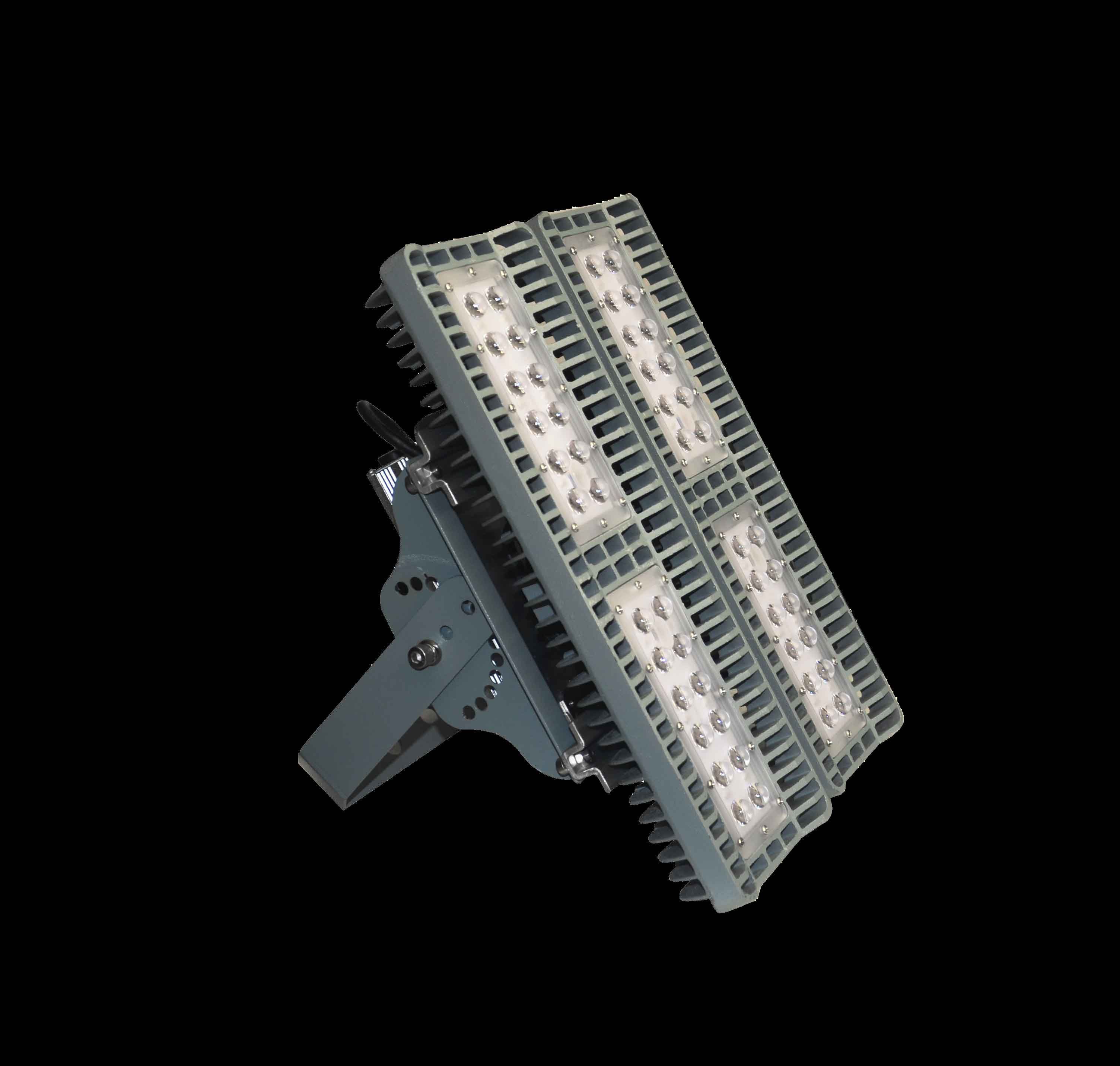

Reliable High Power CREE LED Flood Light with Meanwell Drivel
High Power CREE LED Flood Light's Feature:
The Reliable High Power CREE LED Outdoor Flood Light for severe environment from Wuhan Sunshine BRT New Energy Co.,ltd is creatively designed as free modular serialization for outdoor lighting. The Reliable High Power CREE LED Outdoor Flood Light is an amazing combination of technical innovations, including breakthroughs in electronics design, mechanical design, and thermal management. The core of the innovation is a new way to generate bright light with LEDs to perfectly replacing the traditional HPS fixtures.Features:The BTZ series has an upgraded casing in keeping with modern design .Manufactured from high thermal conductivity magnesium alloy .Light weight magnesium alloy to reduce static and inertia loads Reduced surface area to reduced wind loading which enables it to be retrofit to existing poles without fear of exceeding maximum rated pole top wind shear Carefully designed and rated cooling fins ensure thermal management by natural convection.The matching of the driver and LED characteristics provides a genuine efficiacy of 95lm/W and a very low decay of less than 3% over the first year of operation with a max 15% over 5 years The robust cast metal work is also anti corrosion IP 65 and dust proof .Now available in power ratings of 60W to 1000W as well as angles from 30o or 60o Applications: High Mast Lighting for indoor/outdoor sporting fields, Harbor Container Terminals, offshore oil rig,Road Lighting applications (Highway, Traffic Road and Pavement etc.) Industrial Lighting (Golf Course ,Tennis Court & Stadium etc)Outdoor LED HIGH MAST (200W)
POWER CONSUMPTION: 200W
LUMINOUS FLUX: 17000LM
INPUT VOLTAGE: 100-240VAC, 50/60Hz
CCT: 5000-6000K
OPERATING TEMPERATURE: -40~ + 50° C
CRI: ≥ 70
PF: ≥ 0.95
IP RATING: IP66
BEAM ANGLE: 70° X60°
LIGHT SOURCE: CREE LED
SERVICE LIFE: 35000 HOURS
REPLACING 1000W-3000W HPSPrimary Competitive Advantages
*Unique whole structure cooling technology
*Patent shape design, automatic clean function
*Adopts high efficiency led chip, and patent heat dissipation technology, feature with high light efficiency, low light decay and long lifespan
*Normally, use Cree LED and Meanwell power supply
*Uniformly distributed light and color, very even light distribution and high uniformity, no glare to eyes
*High waterproof , anti-dust and anti-vibration level
*Excellent thermal control
*Reliable qualities,use Cree LED and MEANWELL power supply,Compliant with CE standard
*-50-60°C Working temperature
*Low light decay: Lumen-drop at 5% after the 1st year, 10% after 3 years and 15% after 5 years
*Energy-saving, Substantial energy-saving more than 60% compared with HPS lamp
*Environment-friendly
*Easily and fast install, idea replacement of traditional lamp
*Long lifespan,Offer two to five years warranty
*High-power factor to minimize the harmonic distortion: PF: more than 95%
*Patent structure design, easy installation and maintenance
*Low maintenance costs
PICTURE |
|
|
|
|
|
POWER | 60W | 130W | 240W | 400W | 520W |
LUMINOUS FLUX | 4800LM | 12350LM | 24700LM | 38000LM | 50000LM |
INPUT VOLTAGE | 100-277V, 50/60Hz | 100-277V, 50/60Hz | 100-277V, 50/60Hz | 100-277V, 50/60Hz | 100-277V, 50/60Hz |
CCT | 5000-6000K | 5000-6000K | 5000-6000K | 5000-6000K | 5000-6000K |
BEAM ANGLE | 60°/100° | 60°/100° | 60°/100° | 60°/100° | 60°/100° |
LIGHT SOURCE | LG LED | CREE/LG LED | CREE/LG LED | CREE/LG LED | CREE/LG LED |
CRI | ≥ 70 | ≥ 70 | ≥ 70 | ≥ 70 | ≥ 70 |
PF | ≥ 0.95 | ≥ 0.95 | ≥ 0.95 | ≥ 0.95 | ≥ 0.95 |
IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 |
WORKING TEMP. | -40° C~+50°C | -40° C~+50°C | -40° C~+50°C | -40° C~+50°C | -40° C~+50°C |
LIFESPAN | 3-5 Years | 3-5 Years | 3-5 Years | 3-5 Years | 3-5 Years |
NET. WEIGHT | 3.1kg | 3.1kg | 7.2KG | 10.9KG | 14.7KG |
INSTALL HEIGHT | 6-10m | 6-10m | 10-30m | 20-40m | 20-40m |
REPLACING TRADITIONAL | 200-400W HPS | 200-400W HPS | 600-800W HPS | 1000-1500WHPS | 2000-3500W HPS |
Diagram | 388*140*203mm | 388*140*203mm | 388*290*203mm | 388*440*203mm | 388*580*203mm |
Light Distribution Curve |
|
|
|
|
Advantages 1. The lowest total cost solution for good quality and reliable high power LED outdoor lights. 2. Industry-leading thermal management 3. Operating temperature range: from below 40 Celsius degree to 50 Celsius degree. 4. The LED modular contain no any mercury or lead, no UV rays. 5. Directional light means good easy lighting design with no light pollution, dark sky compliance. 6. Higher luminous efficacy compared to similar models of others. 7. Lighter and thinner compared to similar models, lower the wind load even 35 meters high 8. Reduce energy costs up to 90% compared to traditional lamps 9. Be able to operate in harsh high temperature, moist environments. 10. 3-5 years warranty and long life expectancy, reduce maintenance costs up to 90%, Parts are available so that they can be refurbished and not discarded at the end of the sevice life |
Founded in 2009, Wuhan Sunshine BRT New Energy as the biggest high power LED manufacturer in Wuhan City, Hubei Province in China have over 200 employees and 2000 square meters industrial park.
Organized by a strong team from Taiwan. We are professional on High Power LED Light design and solution with high quality private and aluminium magnesium alloy module. Our main series composed of LED street light, LED high bay light, LED tunnel light and LED high mast. We are professional on High Power LED Light design and solution with high quality private and aluminium magnesium alloy module. Our main series is LED street light, LED high bay light, LED tunnel light and LED high mast. The other part is commercial LED light.
We possesses various qualifications and certificates, such as National Engineering Qualification, National EMC License, CQC, CE, CB, KC, SAA, C-tick, LCP and others which have been successfully accomplished numerous of major projects in the domestic and international realms with flying colors. We have many customers all around the world and also professional on industry project and real estate project.
We have many customers all around the world and also professional on industry project and real estate project.
Our company improves products quality constantly to benefit the customers. Additional, it pays great attention to product reliabilities, safety and environment requirements. Worled keeps innovating developing new products techniques to maxmize values for the customers, bright the world and energy-saving in the world.
Our company supplys different kinds of LED lighting products. High quality and favaroble price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. We are an ISO9001: 2008 registered manufacturer, producing 50W-200W LED high bay light of high quality, we guaratee our product for 3-5 years.
Wuhan Sunshine BRT New Energy's LED Outdoor light series is an amazing combination of technical innovations, including breakthroughs in electronics design, mechanical design, and thermal management. The core of the innovation is a new way to generate white light with LEDs to perfectly replacing the traditional HPS fixtures. Special features:
*Unique secondary optical design
*High Color rendering index
*High light efficiency
*Excellent thermal control
*Reliable qualities, use Meanell power supply, Compliant with CE standard
*Light color uniform
*Energy-saving, environment-friendly
*Easily and fast install, idea replacement of traditional lamp
*Long lifespan, Warranty: 3-5 years
*Low maintenance costs
