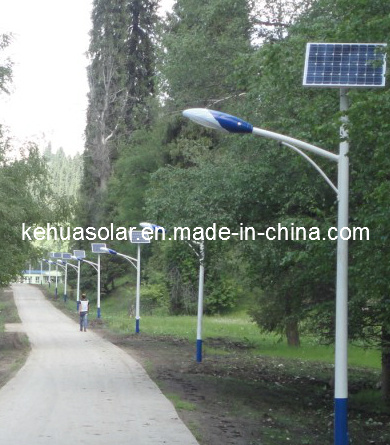

Kehua Solar Street Light
Technical Parameters:
1) Height of Pole: 4M -- 6M--12M
2) Applicable light source: 20W-120W-150W
3) Light source: LED & Metal halide lamp & high voltage sodium lamp
4) Material of the pole: plastic coated on hot-dip galvanized steel pole
5) Solar Panels: 50W-150W Mono/Poly crystalline Solar panels
6) Battery: Lead-acid or Gel ones, 50AH--200AH optional
7) Controller: intelligent 12V/24V 10A/20A, top-brand one
8) Pole shape: Conical & Hexagonal & Octagonal
9) Main production process: Raw material test---> Cutting--->> Molding or Bending ---->> Welding--->> Flange welding-->>
Hole Drilling--->> Galvanization or powder coating or painting--->> Recalibration---->>Packing
10) Designs: Single & Double Arms & as per request
Our Plant /Workshop Pictures:
( Street Pole & PV panels )
Our certificates:
( CE/TUV/ISO )
Delivery & Projects Installation photos:
( for clients from home and abroad )
|
Product Description: |
|
Component |
Component Information |
|
Lighting Source |
Watts: 40W(BridgeLux chips) |
|
LEDs' Efficiency:110-130LM/W |
|
Input Voltage:DC12/24V |
|
Color Temperature:warm white:2800K~3200K; cold white:5500K~6000K |
|
Angle:120° |
|
Working temperature range:-30°C~+50°C |
|
Working humidity range:10%-90%RH |
|
LEDs' estimated life span:≥50,000h |
|
Housing Material:die-casting aluminum |
|
Working housing temperature:≤55° (at indoor temperature) |
|
Waterproof Level:IP65 |
|
Estimate weight:7kg |
|
Size:650mm*310mm*140mm |
|
Solar Panel |
Watts: Poly solar panel 140W/17.5V (2pcs*70w) |
|
Life span: 20-25 years |
|
Estimate weight:6.5kg/piece |
|
Size:665*770*30MM |
|
Battery |
Solar special acid maintenance-free battery: 180AH/12V |
|
Life span:3-5 years |
|
Size:406*173*236MM |
|
contain1 pcs buried battery box |
|
Estimate weight:56kg /piece |
|
Size:522*239*218MM |
|
Warsony Smart |
1.Turn on and off automatically, photosensitive control, time setting |
|
Controller 24V/10A |
2.Protect battery from overcharging and over discharging. |
|
|
3.Trickle charge: When the battery is at the protection rate, the system transfers to rate the voltage and trickle charging. |
|
|
4.Auto revival discharging function |
|
|
5.Temperature compensating function |
|
|
6.Reverse polarity: to prevent the battery charging the solar panel |
|
|
7.Anti shortcut and overloading function |
|
|
8.Life span: 3-4 years |
|
Pole |
4metres steel pole(taper) and arm:Zincification inside and outside |
|
Battery box |
|
Corner cage(use for groundsill),soalr panel bracket Zincification inside and outside |
|
one set 5.5meters RVV 5-core wire |
|
Work |
8-12 hours work a day,4hours full power work,4 hours half powerwork; if the battery is full, it can work 3-4 rainy days |
|
Container Loading QTY |
60 SETS / 20" GP |
|
|
100 CTNS / 40" GP |
|
|
120 CTNS / 40" HQ |
Jiangsu Kehua Optoelectronics Technology Co., Ltd. (Yangzhou Lianxing Light Industy Co., Ltd)is located in Yangzhou Guoji Economic Development Zone, which belongs to Shanghai-Yangtze River Delta Economic Circle. The Grand Canal runs through the city to the Yangzte River from north to south. The company is situated at the entrance of the East China Recticulated Expressway system, which contains three main arteries: Beijing-Shanghai, Shanghai-Nanjing and Nanjing-Nangtong expressways. The transportation is easy and fast
As a professional manufacturer of solar panels, solar power systems, solar lights, high-power LED street lamps and other multiform LED lights. Kehua is dedicating to design, develop, manufacture, distribute and install the photovoltaic products. The products are widely exported to Europe, America, the Middle East, Africa and other international markets due to its high quality and reasonable price.
Jiangsu Kehua Optoelectronics Technology Co. Ltd has got the Certificates of ISO9001-2000, CCC, CE, TUV, Safety Production License and the Third Class Qualification in Municipal and Road Illumination Engineering. In order to support the rapid development, Kehua places more emphasis on technical innovation. Apart from paying high attention to independent research and development, we also value the long-term cooperation with research institutes.
Adhering to the goal of "High-tech, High-quality, and Good Services", we are striving for the best and keeping pace with the times. Let's create a Green Future together!
