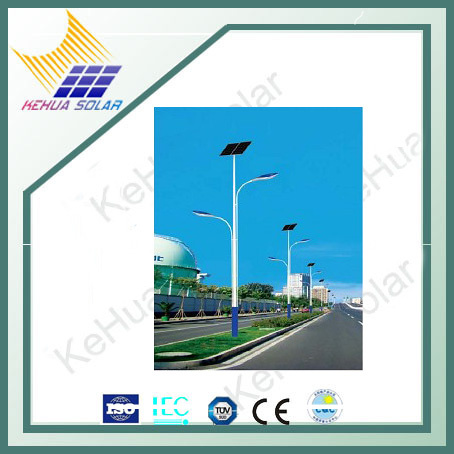

Home LED Light Products IP65 High Quality All in One LED Solar Street Light

IP65 High Quality All in One LED Solar Street Light

IP65 High Quality All in One LED Solar Street Light
Price: US $ 95-100/Set
Trade Terms: FOB,CFR,CIF
Min Order: 50/Set
Pay Type: L/C,T/T
Kehua LED Street Light

Technical parameters:

1. Protection grade: IP65

2. With the light source: Single size power/integrated LED

3. The rated voltage and frequency: Minus 10%)

4. Installation of pipe diameter: 60 mm

5. High pressure die casting aluminum molding shell, external electrostatic pensu processing

6. High purity aluminum reflector made type, surface anodic oxidation treatment

7. Stainless steel fastener, stainless steel fasteners, bolts, nuts

8. Pervious to light cover USES the high strength glass surface

9. High temperature resistant silicone rubber sealing strip

10. Our certificates: ( CE/TUV/ISO )
Product Description:
Component Component Information
Lighting Source Watts: 40W(BridgeLux chips)
LEDs' Efficiency:110-130LM/W
Input Voltage:DC12/24V
Color Temperature:warm white:2800K~3200K; cold white:5500K~6000K
Working temperature range:-30°C~+50°C
Working humidity range:10%-90%RH
LEDs' estimated life span:≥50,000h
Housing Material:die-casting aluminum
Working housing temperature:≤55° (at indoor temperature)
Waterproof Level:IP65
Estimate weight:7kg
Solar Panel Watts: Poly solar panel 140W/17.5V (2pcs*70w)
Life span: 20-25 years
Estimate weight:6.5kg/piece
Battery Solar special acid maintenance-free battery: 180AH/12V
Life span:3-5 years
contain1 pcs buried battery box
Estimate weight:56kg /piece
Warsony Smart 1.Turn on and off automatically, photosensitive control, time setting
Controller 24V/10A 2.Protect battery from overcharging and over discharging.
  3.Trickle charge: When the battery is at the protection rate, the system transfers to rate the voltage and trickle charging.
  4.Auto revival discharging function
  5.Temperature compensating function
  6.Reverse polarity: to prevent the battery charging the solar panel
  7.Anti shortcut and overloading function
  8.Life span: 3-4 years
 Pole 4metres steel pole(taper) and arm:Zincification inside and outside
Battery box
Corner cage(use for groundsill),soalr panel bracket Zincification inside and outside
one set 5.5meters RVV 5-core wire
Work 8-12 hours work a day,4hours full power work,4 hours half powerwork; if the battery is full, it can work 3-4 rainy days
Container Loading QTY  60 SETS / 20" GP
   100 CTNS / 40" GP
   120 CTNS / 40" HQ
Prod Model: KH-TYNLD-011
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LED Light Power: 20W-200W
Light Soure: LED, High-Power Soduim Light
Pole Height: 5m--12m-15m
Certification: CQC
Color Temperature: Pure White
IP Rating: IP65
Lamp Body Material: Aluminum Alloy
Power Supply: AC
Application: Garden
Jiangsu Kehua Optoelectronics Technology Co., Ltd. (Yangzhou Lianxing Light Industy Co., Ltd)is located in Yangzhou Guoji Economic Development Zone, which belongs to Shanghai-Yangtze River Delta Economic Circle. The Grand Canal runs through the city to the Yangzte River from north to south. The company is situated at the entrance of the East China Recticulated Expressway system, which contains three main arteries: Beijing-Shanghai, Shanghai-Nanjing and Nanjing-Nangtong expressways. The transportation is easy and fast

As a professional manufacturer of solar panels, solar power systems, solar lights, high-power LED street lamps and other multiform LED lights. Kehua is dedicating to design, develop, manufacture, distribute and install the photovoltaic products. The products are widely exported to Europe, America, the Middle East, Africa and other international markets due to its high quality and reasonable price.

Jiangsu Kehua Optoelectronics Technology Co. Ltd has got the Certificates of ISO9001-2000, CCC, CE, TUV, Safety Production License and the Third Class Qualification in Municipal and Road Illumination Engineering. In order to support the rapid development, Kehua places more emphasis on technical innovation. Apart from paying high attention to independent research and development, we also value the long-term cooperation with research institutes.

Adhering to the goal of "High-tech, High-quality, and Good Services", we are striving for the best and keeping pace with the times. Let's create a Green Future together!
