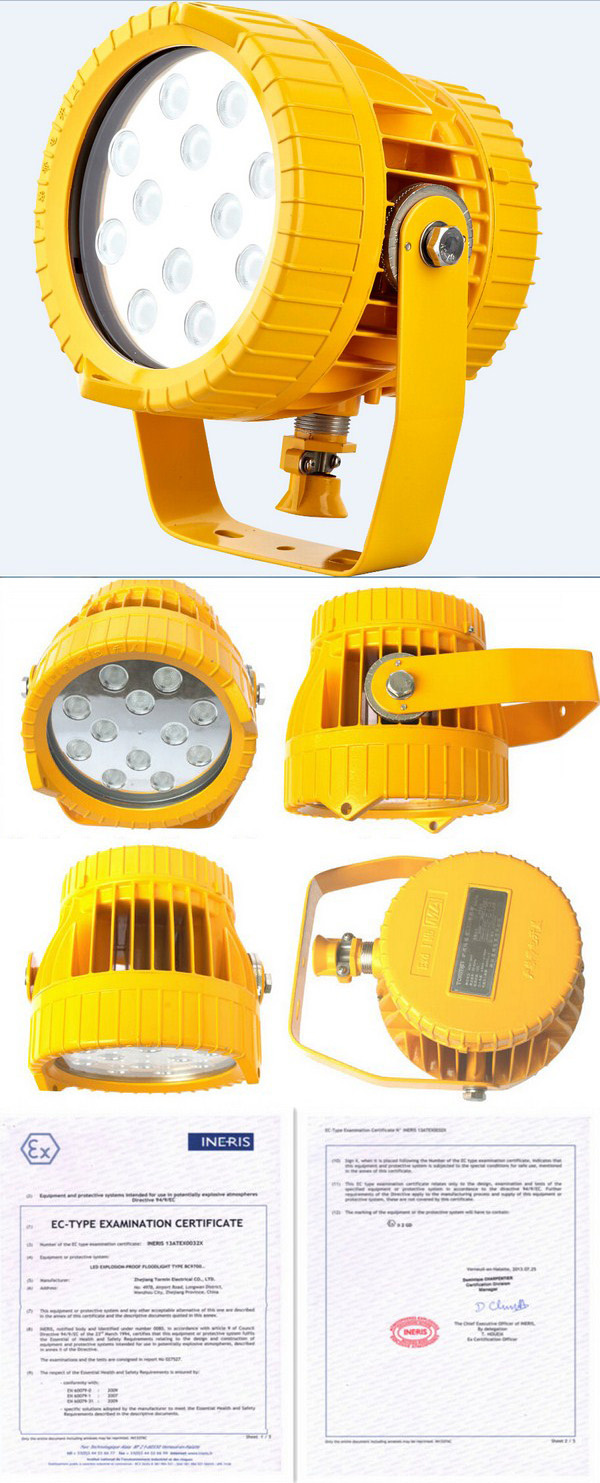

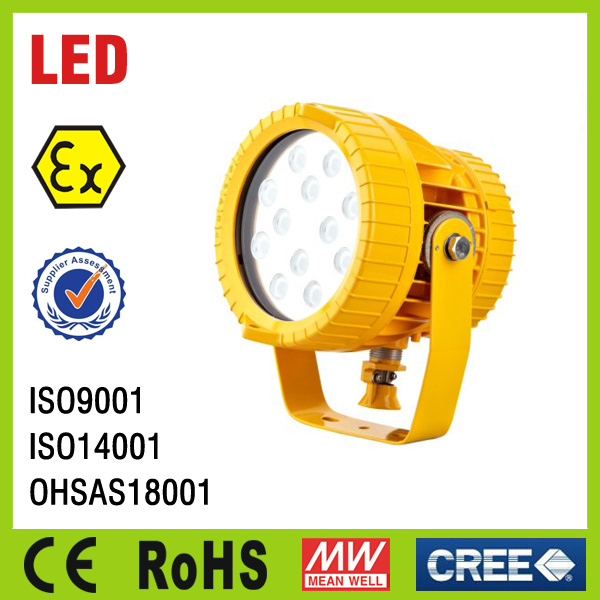

ApplicationIt provides operators with a powerful and energy efficient spotlight
for the flammable area such as the coal mine, indoor and outdoor
work task, the monitoring spot and other devices.
Characteristics of performance
1)Beam Angle: 25°or 80°is available
2)The housing is especially designed to dissipate heat, which increase the efficiency and lifespan of the LED, so that to ensure the 100,000 hours LED lifespan.
3)The locking device on the bracket will keep the lamp from shift or trembling when harsh vibration.
4)It adopts American CREE LED as light source, can save 60% or more on energy than the metal halide lamp.
5)Equipped with world famous brand electrical appliance, ensuring the lamp have a stable performance.
6)The lamp is flame proof type of protection, designed for use in harsh environment or explosive application.
7) 25w,40w make AC18!43V/DC18~55V is availiable.
Model No.
| Beam Angle
| Input voltage
| Output volate
| Rated Wattage LED
| Light Output
(Lumen)
| Equivalent to
|
Metal Halide Lamp
| Electrodeless Lamp
| High Pressure Mercury Lamp
|
BC9501-L25-25°
| 25°
| AC90-264V/DC127-370V
| DC48V
| 25 W
| 3300 Lm
| 70W
| 60W
| 80W
|
BC9501-L25-80°
| 80°
|
BC9501-L40-25°
| 25°
| DC38V
| 40 W
| 5 508Lm
| 100W
| 100W
| 125W
|
BC9501-L40-80°
| 80°
|
BC9501-L60-25°
| 25°
| DC48V
| 60 W
| 7128Lm
| 150W
| 135W
| 175W
|
BC9501-L60-80°
| 80°
|
Optional
|
BC9501-L25-25° -D
| 25°
| AC18-43V/DC18-55V
| DC42V
| 25 W
| 3300 Lm
| 70W
| 60W
| 80W
|
BC9501-L25-80° -D
| 80°
|
BC9501-L40-25° -D
| 25°
| 40 W
| 5 508Lm
| 100W
| 100W
| 125W
|
BC9501-L40-80° -D
| 80°
|
| Input voltage | AC90-264V/DC127-370V |
| Frequency | 50/60Hz |
| Anti Corrosion Grade | WF2 |
| Insulation Grade | I |
| Screw Thread | G3/4″ |
| Leading-in Cable | Φ8mm-Φ14mm |
| Size | 242×Φ200×320mm |
| Net Weight | 4kg |
Q:What certification do you have for your LED Explosion proof lights?
A:We have ATEX, CE,EMC,LVD,RoHS, China Explosion proof approval for all of our LED explosion proof lights.
Q:What places do your explosion proof lights applicable to?
A:It is ideal to be used as floodlight or spotlight at the oilfield,metallurgy,refinery,gas station,oil rig,petroleum,petrochemistry
and anywhere a highly durable and efficient light source is needed that can withstand exposure to high stress environments.
Q:Can you introduce briefly for your LED Explosion proof lights? Are they unique, different from other suppliers'?
A: Tormin's LED explosion proof lights are designed and patented independently by Zhejiang Tormin electrical Co.,Ltd.
We ensure quality by using Bridgelux LED chip, aluminium housing and tempered glass. We ensure safety by strict testing and inspection.
Q:Is it changed the colour of housing as require?
A:It can be made into other colour like Gray.

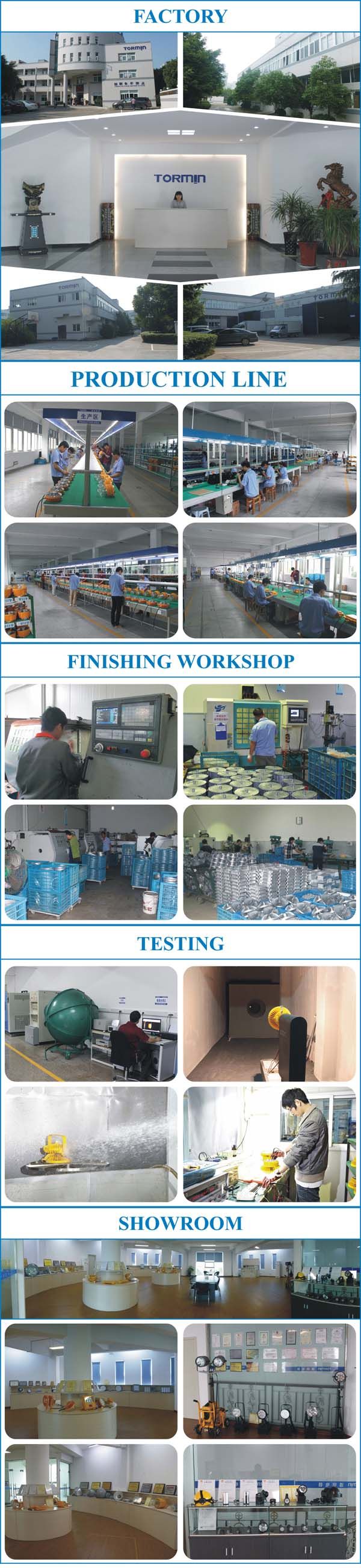

Zhejiang Tormin Electrical Co., Ltd. is a high-tech civilian enterprise that specializes in r & d, manufacture and sales of industrial illumination lamps. Its products are widely used in the fields of electric power, coal mine, petrol, chemical, metallurgy, railway, large airport, fire-fighting, military, flood prevention, rescue work and disaster relief.
