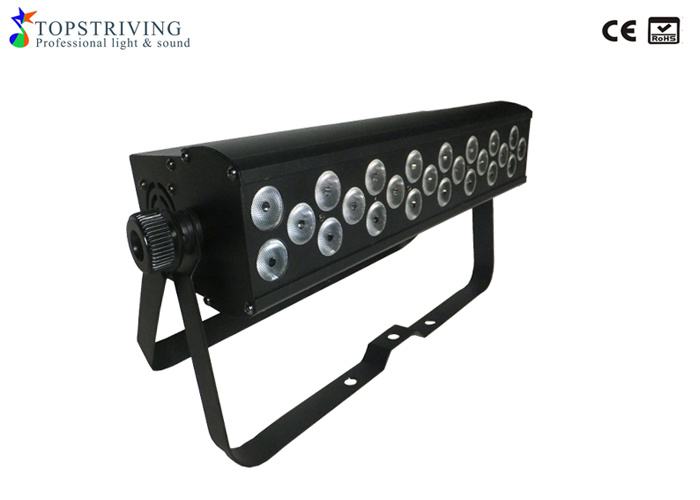

24* 3W 3 in 1 LED Washing Light / Stage Par Lighting LED BAR PRO RGB
Technical specifications:
Power supply: 90-240V AC 50/60Hz
Power consumption: 200W
DMX-control-channels: 9
DMX-512-connection: 3-pin XLR
Number of LED: 24 high MCD 4 in 1 12W RGBW LEDs
Dimensions: 410*190*70mm
Weight: 3.5 kgs
AUTO: Run the preset shows;
CF00: Increasing brightness, then decreasing brightness, the speed of increasing brightness,
Then decreasing brightness can be adjusted by the buttons of UP and DOWN from 00 slowest
To 99 fastest.
CCO8: Color changes, the speed of color changes can be adjusted by the buttons of UP
And DOWN from 00 slowest to 99 fastest.
CS99: Color selections, the color selections can be done by the buttons of UP and DOWN
From 00 to 99. R000: Press the button FUN five seconds, till R000 shows in the led display,
The red color brightness can be adjusted by the buttons UP or DOWN;
G000: Press the button FUN five seconds, till G000 shows in the led display, the green
Color brightness can be adjusted by the buttons UP or DOWN;
B000: Press the button FUN five seconds, till B000 shows in the led display, the blue
Color brightness can be adjusted by the buttons UP or DOWN;
Y000: Press the button FUN five seconds, till Y000 shows in the led display, the white
Color brightness can be adjusted by the buttons UP or DOWN;
|
Channel 1 |
red from small to big brightness(dimmig) |
|
Channel 2 |
green from small to big brightness(dimmig) |
|
Channel 3 |
blue from small to big brightness(dimmig) |
|
Channel 4 |
white from small to big brightness(dimmig) |
|
Channel 5 |
master dimmer from small to full brightness |
|
Channel 6 |
strobe from slow to fast |
|
Channel 7 |
dimmer,color macro |
|
Channel 8 |
dimmer, increasing brightness, then decreasing brightness, |
|
Channel 9 |
running speed adjustments |
