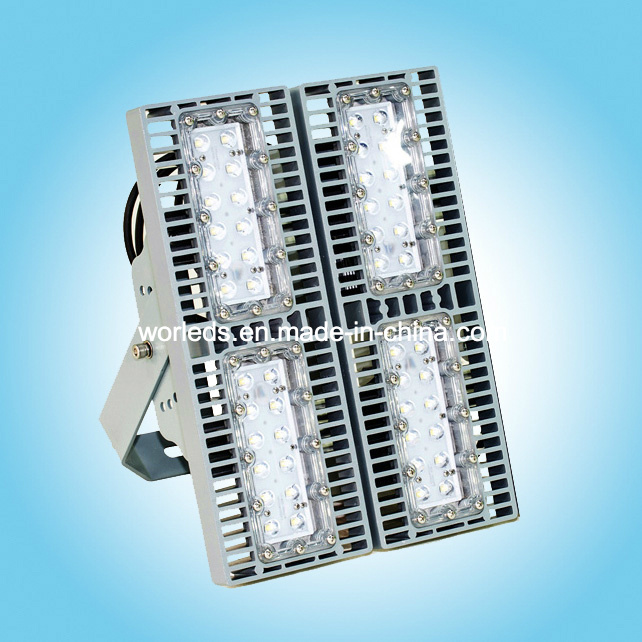

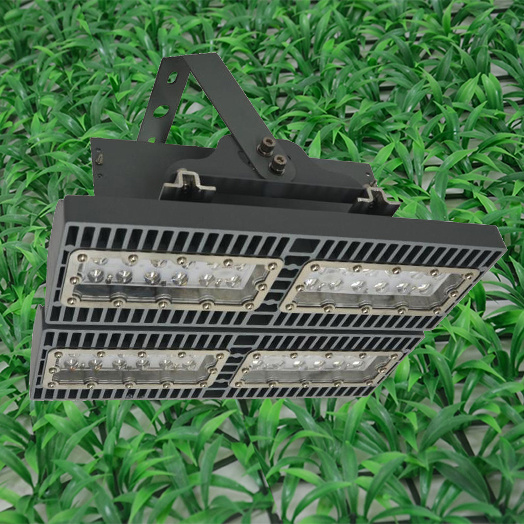

Reliable and Competitive High Power CREE LED Flood Light for Energy Savings Lightings
High Power CREE LED Flood Light's Feature:
The Reliable High Power CREE LED Flood Light for severe environment from Wuhan Sunshine BRT New Energy Co.,ltd is creatively designed as whole structure cooling fixture for industrial lighting. The Reliable High Power CREE LED Flood Light is an amazing combination of technical innovations, including breakthroughs in electronics design, mechanical design, and thermal management. The core of the innovation is a new way to generate bright light with LEDs to perfectly replacing the traditional HPS fixtures.

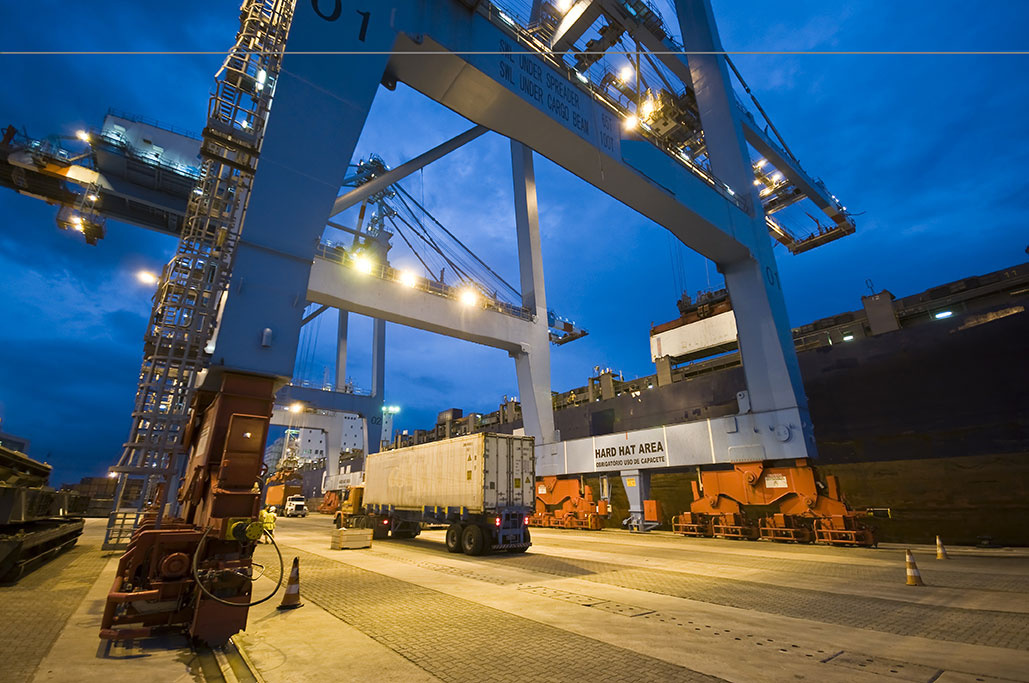

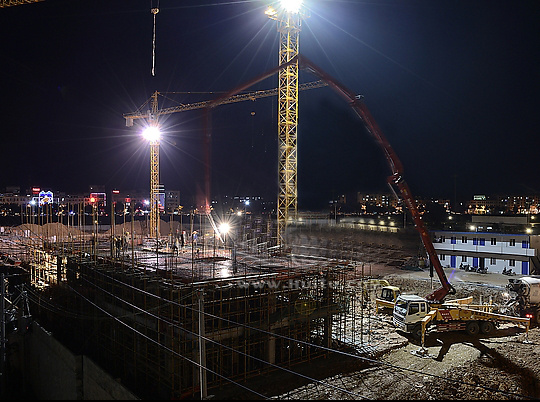

High Power CREE LED Flood Light's Applicant: lighting for construction plant , square, pot ,airport, exhibition halls, parking lots, supermarkets and specially in professional spot such as huge gymnasiums and industrial lighting project.Main Features:
1. Thin and light fashionable appearance without big and heavy shield
2. High quality LEDs, super bright, high light efficiency: >90lm/W
3. Unique all-in-one structure for severe environment
4. CE approval, IP65 Waterproof, Three to Five Years Warranty
5. Attractive return on investment with superior performance
Specifications
POWER260W400W
LUMINOUS FLUX21000LM
INPUT VOLTAGE100-240V, 50/60Hz
CCT5000-6000K
BEAM ANGLE60°x 70°
LIGHT SOURCEHIGH POWER LED
CRI≥ 70
PF≥ 0.95
IP RatingIP65
DIAMETER389.5X292X299MM
OPERATING TEMPERATURE-40° C~+50° C
LIFESPAN3 Years
REPLACING TRADITIONAL500W HPS
A
dvantages
* LED: With CREE LED, high brightness and low heat, saves 60% energy than HPS
* Power supply: choose world brand power supply, the main features are: high efficiency, long lifespan, constant current and voltage, which can make sure the light's safety work
* Heat sink: uses high-thermal conductivity Aluminum and magnesium alloys heatsink, sound
heat dissipation design, which is not only the premise of the long lifespan, but also the indemnification of the stable working of the system
* Structure Design:
Patented Modular plug-gable technology, tool-free on-site maintenance
Beautiful appearance is anti-corrosion, waterproof and dust-proof
Honeycomb and whole structure cooling technology, high efficiency heat dissipation
Be able to operate in high temperature,moist environment and other severe environment like
that, and won't be corroded
can be regulated as required angle
Green environmental protection, with no lead or mercury
Lifespan is more than 50,000 hours, saving cost on changing lights
Strictly inspected and passed CE, CQC certifications
Primary Competitive Advantages
*Unique whole structure cooling technology
*Reliable qualities,use Cree LED and CE approved power supply,Compliant with CE standard
*-50-60°C Working temperature
*Low light decay: Lumen-drop at 5% after the 1st year, 10% after 3 years and 15% after 5 years
*Energy-saving, Substantial energy-saving more than 60% compared with HPS lamp
*Long lifespan,Offer two to five years warranty
*High-power factor to minimize the harmonic distortion: PF: more than 95%
*Patent structure design, easy installation and maintenance
Technical specifications
Electrical parameters:
Input voltage: 100-240V AC, 50-60Hz
Power factor: ≥0.95
Driver efficacy: ≥90%
Power: 260W
Lamp efficacy: ≥80lm/W
Luminous flux: 21000lm
IP class: IP65
Optical parameters:
CCT: 5,000-6,000K
CRI: ≥70Ra
Recommended height: 18-35m
Average illumination: ≥23lux
Illumination eveness: ≥0.85
Beam angle: 60°x 70°
Ambient temperature: -40 to 50°C
PACKING
Packing1 PC/CARTON(BOX)
Carton (Box)SizeL510XW310XH245MM
G.W.8.5KG/CTN
Founded in 2009, Wuhan Sunshine BRT New Energy as the biggest high power LED manufacturer in Wuhan City, Hubei Province in China have over 200 employees and 2000 square meters industrial park.
Organized by a strong team from Taiwan. We are professional on High Power LED Light design and solution with high quality private and aluminium magnesium alloy module. Our main series composed of LED street light, LED high bay light, LED tunnel light and LED high mast. We are professional on High Power LED Light design and solution with high quality private and aluminium magnesium alloy module. Our main series is LED street light, LED high bay light, LED tunnel light and LED high mast. The other part is commercial LED light.
We possesses various qualifications and certificates, such as National Engineering Qualification, National EMC License, CQC, CE, CB, KC, SAA, C-tick, LCP and others which have been successfully accomplished numerous of major projects in the domestic and international realms with flying colors. We have many customers all around the world and also professional on industry project and real estate project.
We have many customers all around the world and also professional on industry project and real estate project.
Our company improves products quality constantly to benefit the customers. Additional, it pays great attention to product reliabilities, safety and environment requirements. Worled keeps innovating developing new products techniques to maxmize values for the customers, bright the world and energy-saving in the world.
Our company supplys different kinds of LED lighting products. High quality and favaroble price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. We are an ISO9001: 2008 registered manufacturer, producing 50W-200W LED high bay light of high quality, we guaratee our product for 3-5 years.
Wuhan Sunshine BRT New Energy's LED Outdoor light series is an amazing combination of technical innovations, including breakthroughs in electronics design, mechanical design, and thermal management. The core of the innovation is a new way to generate white light with LEDs to perfectly replacing the traditional HPS fixtures. Special features:
*Unique secondary optical design
*High Color rendering index
*High light efficiency
*Excellent thermal control
*Reliable qualities, use Meanell power supply, Compliant with CE standard
*Light color uniform
*Energy-saving, environment-friendly
*Easily and fast install, idea replacement of traditional lamp
*Long lifespan, Warranty: 3-5 years
*Low maintenance costs
