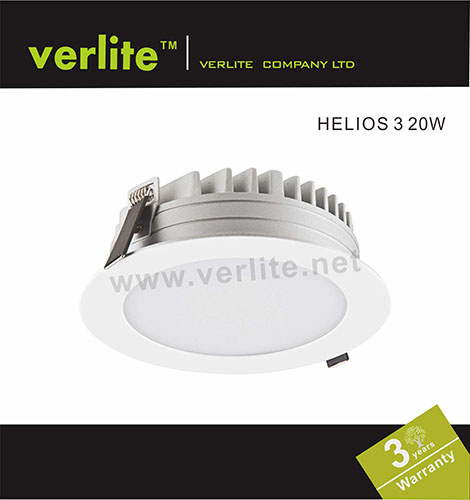

20W Helios LED Down Light with CE RoHS
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
10/Piece |
| Pay Type: |
T/T |
Shallow recessing depthfor greater flexibility of installation.
Dimmable as standard.
Designed to offer greater flexibility with wide range of luminaire diameterss to meet modern building designs. ldeal for entrance foyers, corridors, reception areas, stairwells, showrooms and toilets.
Compact design with low maintenance and running costs, ensure these downlights offer the perfect solution for the interior designer.
High power LEDs with up to 50.000 hours LED life
Die-cast aluminium construction
Full frosted recessed PMMA diffuser
Shallow installed depth
Daylight or warm white LED
CRI>80
White powder coated finish
120° Beam angle
C/w remote dimmable driver
Emergency pack options avaiable

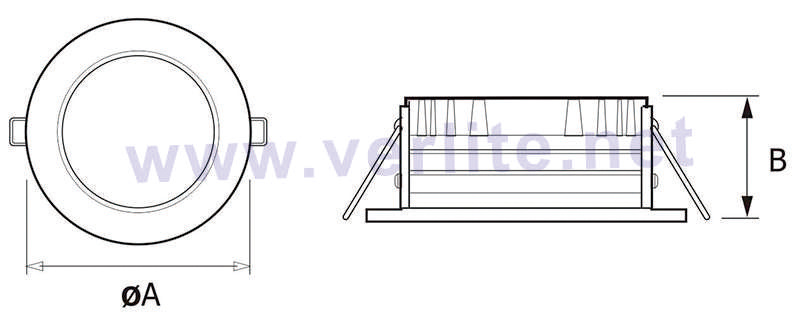

| Description | Colour Temp | Power | Lumen | CRI | Beam | A(mm) | B(mm) | cut-out |
| 10W |
| Helios 3 | Daylight 5700K | 10W | 876 | 83 | 80° | 100 | 50 | 84 |
| Helios 3 | Warm white 3000K | 10W | 763 | 83 | 80° | 100 | 50 | 84 |
| 15W |
| Helios 3 | Daylight 5700K | 15W | 1213 | 83 | 80° | 140 | 50 | 115 |
| Helios 3 | Warm white 3000K | 15W | 1108 | 83 | 80° | 140 | 50 | 115 |
| 20W |
| Helios 3 | Daylight 5700K | 20W | 1571 | 83 | 80° | 160 | 50 | 135 |
| Helios 3 | Warm white 3000K | 20W | 1398 | 83 | 80° | 160 | 50 | 135 |
| 30W |
| Helios 3 | Daylight 5700K | 30W | 2301 | 83 | 80° | 200 | 50 | 175 |
| Helios 3 | Warm white 3000K | 30W | 2093 | 83 | 80° | 200 | 50 | 175 |
| Prod Model: |
Helios3 20W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Downlight: |
Helios 3 20W |
| LED Type: |
SMD2835 |
| Dimmable: |
Yes |
| Lumens: |
1600lm |
| CRI: |
>80 |
| Input Voltage: |
200-240VAC |
| Output Voltage: |
24VDC |
| IP Grade: |
IP54 |
| Certification: |
SAA |
| IP Rating: |
IP54 |
| Warranty: |
5 Years |
| Source Number: |
Double Plug |
| Installation: |
Embedded |
| Switch Type: |
Touch On/Off Switch |
| Application: |
Home Furnishing |
| Lamp Body Material: |
Die-Cast Aluminium |
| Color Temperature: |
Warm White Cool White Daylight |
