12W Mini Square Panel Light LED Ceiling Light
| Price: |
Negotiable/Piece |
| Trade Terms: |
EXW |
| Min Order: |
10/Piece |
| Pay Type: |
T/T |
LED Light Panel Features:
1. High brightness, no flash, energy-saving
2. Excellent heat dissipation, no deformation
3. High quality light guide plate, good light reflection, uniform light, no light spot
4.93% light transmittance diffusion plate
5. Working stably and with long lifespan
6. External waterproof constant current IC power supply
7. Having experienced 8 hours strict aging with low and high voltage impact, reliable and excellent quality
8. Fashionable design, Easy installation, low maintenance

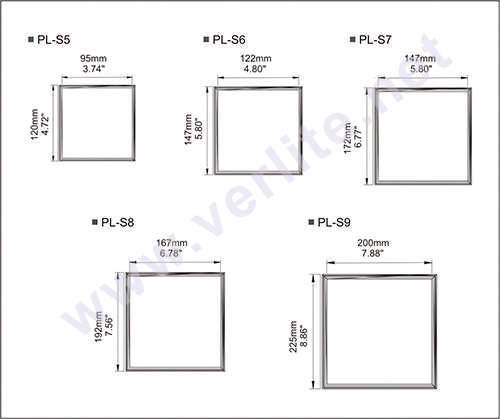

| ITEM | LUMEN (lm) | LED Type & QTY | Cut-out | Product Size | Power
(w) |
| CW | NW | WW |
| VL-PL-R5 | 422 | 392 | 367 | 30 pcs 2835 SMD | Φ110mm | Φ120mm*H20mm | 6±1 |
| VL-PL-S5 | 422 | 392 | 367 | 30 pcs 2835 SMD | 110*110mm | 120*120mm*H20mm | 6±1 |
| VL-PL-S6 | 648 | 603 | 564 | 45 pcs 2835 SMD | 135*135mm | 147*147mm*H20mm | 9±1 |
| VL-PL-S7 | 866 | 805 | 753 | 60 pcs 2835 SMD | 160*160mm | 172*172mm*H20mm | 12±1 |
| VL-PL-S8 | 1058 | 984 | 920 | 72 pcs 2835 SMD | 180*180mm | 192*192mm*H20mm | 15±1 |
| VL-PL-S9 | 1286 | 1196 | 1119 | 90 pcs 2835 SMD | 210*210mm | 225*225mm*H20mm | 18±1 |

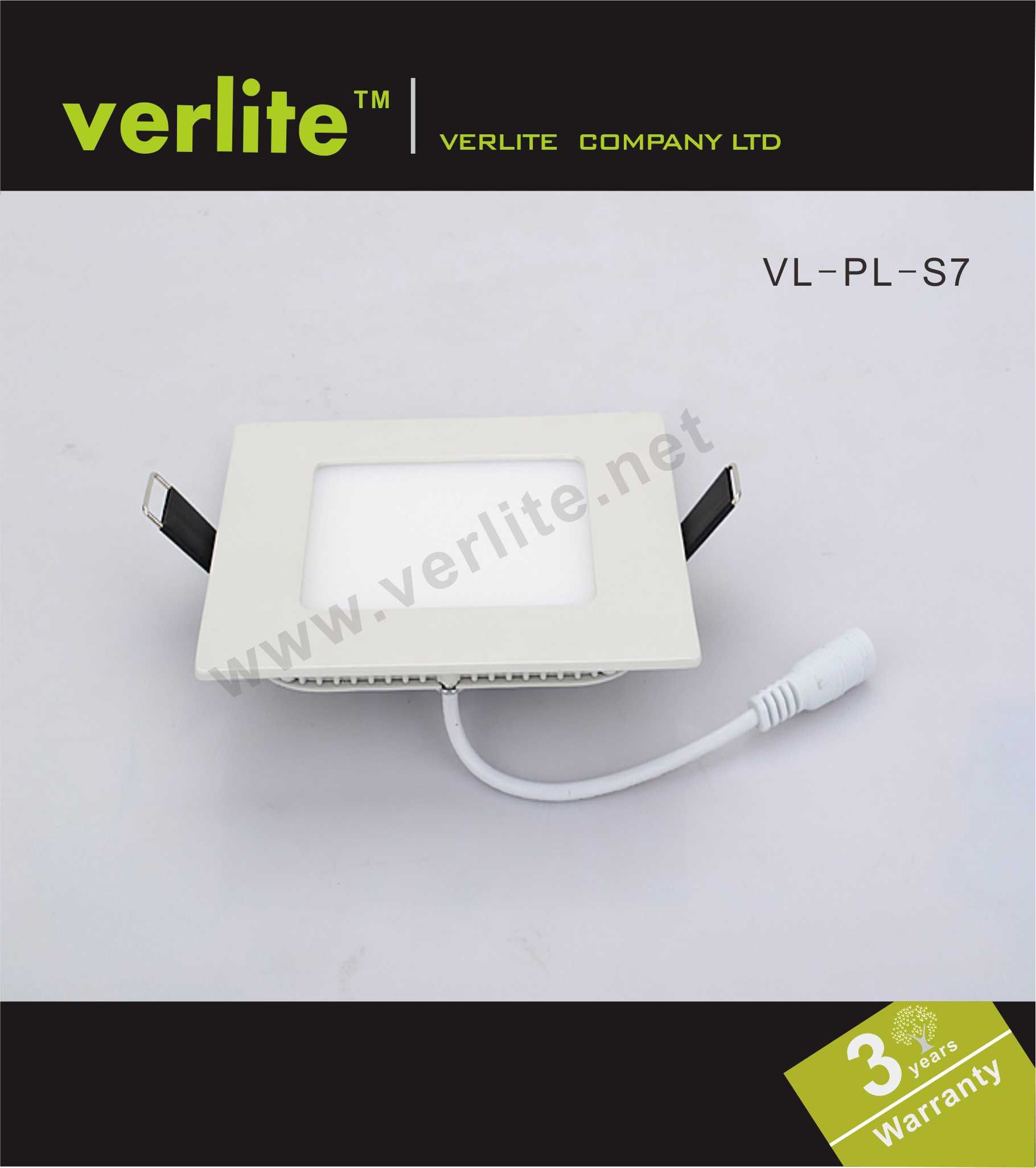

| Prod Model: |
VL-PL-S7 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Panel Ligtht: |
LED Square Panel Light |
| Light Source: |
LED |
| Appearance: |
Square |
| Type: |
Ceiling |
| Certification: |
RoHS |
| Housing Material: |
Acrylic |
| Voltage: |
85V-265V |
| Dimmable: |
With Dimmable |
| Emitting Color: |
Warm White;Day Light;Cool White |
| Base Material: |
Aluminum |
| Beam Angle: |
120 |
