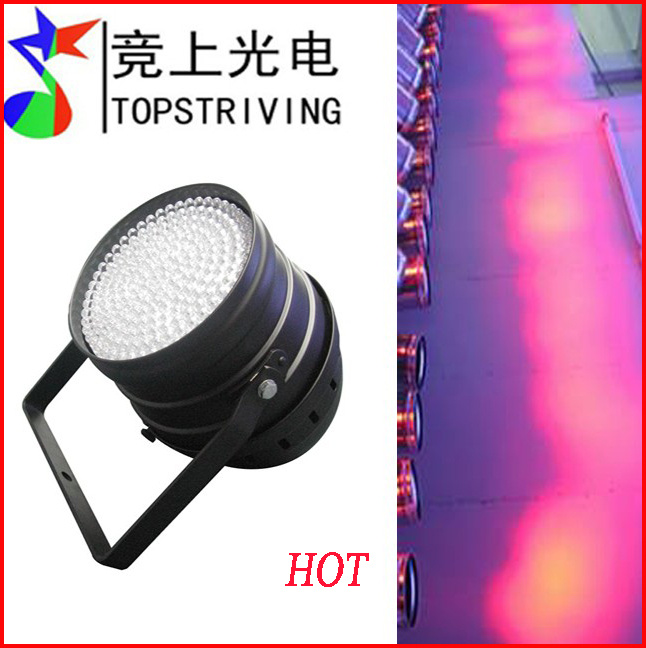

204 10mm High Mcd LEDs (RGB each 68PCS) / Stage Perforance LED Lighting / LED PAR 64 204-10s/ led stage light
Feature:
DU hanging brackets for easy floor standing
Multi-voltage operation: AC 120V-230V 50/60Hz
Full Master/Slave operation in any operational mode,
Electronic Dimming, color strobe effect and long life operation
Silver/black housing Par 64 with 204 10mm high MCD LEDs (68 Red, 68Green, & 68 Blue LEDs)
Smooth RGB color mixing
Low heat, Long Life LEDs (100, 000 hrs. )
Operational Modes: DMX 512 protocol, Sound Active, Auto, master/slave
Beam Angle: 30 degrees
Color strobe effect
Uses 8 DMX Channels
Stand Alone, Master/Slave
Linkable via 3-pin XLR cable
Electronic Dimming: 0-100%
Dimensions: 310*270*230mm
Weight: 3.00 kgs
TECHNICAL SPECIFICATIONS
Power supply: 120-240V AC 50/60Hz
Power consumption: MAX. 40W
Fuse: 250V 1.0A
DMX-control-channels: 8
DMX-512-connection: 3-pin XLR
Number of LED: 204 high output 10mm LED:
R/G/B 68 PCS FOR EACH
Flash-rate: Max. 10 Hz
Dimensions: 310*270*230mm
Weight: 3.00 kgs
DMX Controlling:
After having addressed all items, you may now start operating these via your lighting controller.
After switching on, the item will automatically detect whether DMX 512 data is received or not.
Eight DMX channels:
Channel 1: Red from smal to big brightness(dimmig)
Channel 2: Green from smal to big brightness(dimmig)
Channel 3: Blue from smal to big brightness(dimmig)
Channel 4: Master dimmer from smal to full brightness
Channel 5: Strobe from slow to fast
Channel 6: Dimmer, color macro
0-30 dimmer on at ch1/ch2/ch3/ch4
31-255 color macro, the brightness can be adjusted by the master dimmer at ch4
Channel 7: Dimmer, increasing brightness, then decreasing brightness,
Colors following one by one
0-85 dimmer on at ch1/ch2/ch3/ch4
86-169 increasing brightness, then decreasing brightness, the running speed can be
Adjusted by ch8
170-255 color following one by one, the running speed can be adjusted by ch8
Channel 8: Running speed adjustments
When ch7 at 86-169 or at 170-255, the speed adjustment works
Trade Terms:
1. Payment Terms: By T/T or western union or paypal
2. Delivery time: 40'HQ container within 4 weeks
3. Shipping method: DHL, UPS, FedEX, TNT door to door service, by sea, by air, etc
4. OEM&ODM: Accepted.
5. Packing: Carton packing or fight case optional.
6. MOQ: 30 PCS
Our Service:
1. Your inquiry related to our products or prices will be replied in 24 hours.
2. OEM&ODM, any your customized lightings we can help you to design and put into product without any charges.
3. Promised After-sales Servi
4. Definitely high brightness with good material inside.
5. Customised LED Quantity Design.
We are looking forward to your long term business relationship with you!
|
Delivery time |
about 1 week |
|
Producing time |
15 -20 days |
|
OEM or ODM service |
accept |
|
Payment |
T/T,paypal,Western Union |
|
Warranty time |
Full 2 year |
