Product Features
Ultra HD display,high-precision seamless,
accurate to 0.1mm gap
New design,meet the requirement of lifting, stacking,
meet the requirement of indoor&outdoor
Ultra-high refresh rate,can support video shooting,
clear picture quality assurance
Quick and easy assembly,removing System,save loading time
Using Range
Widely used in large venue,stadiums,bank,government,
terminal,dock,station,stock market,medical systems,
electricity,exhibition etc.

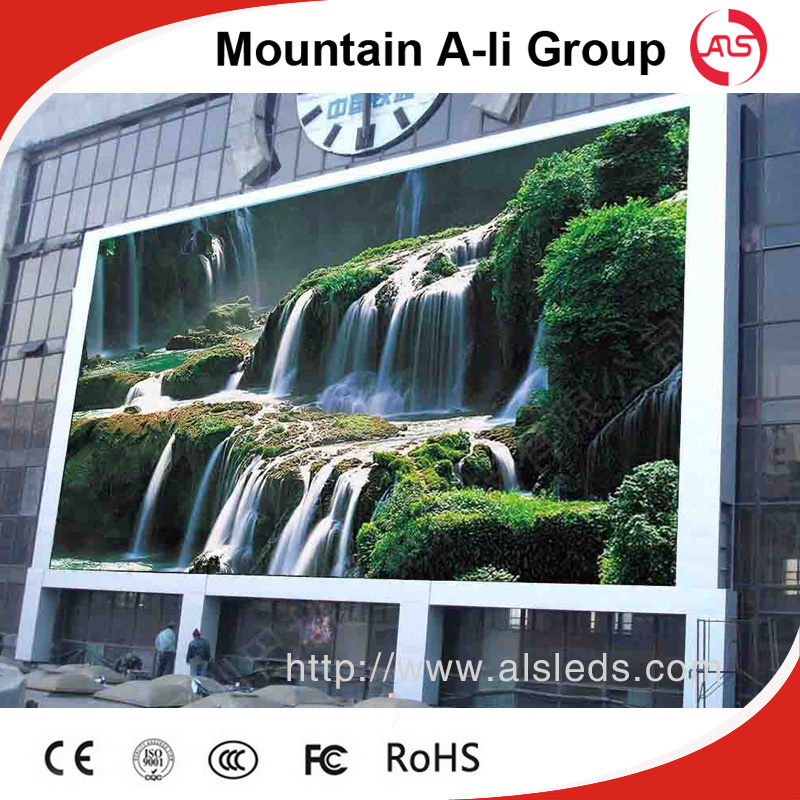

The Technical Parameters of Outdoor p10 led screen
| Item | Parameter |
|---|
| Product model | P10 full color module |
| Module size | 160mm*160mm |
| Pixel pitch | 10mm |
| Pixel density | 10000dots/m2 |
| Pixel configuration | 1R1G1B |
| Module resolution | 16dots(W)*16dots(H) |
| Maximum power consumption | 20W |
| Module thickness | 2.5cm |
| Module weight | 0.5kg |
| Driving method | Constant current driving |
| Scan mode | 1/4 scan |
| Interface type | HUB75 |
| Brightness | ≥8000cd/m2 |
| The specifications of cabinet |
|
| Cabinet size | 960mm*960mm |
| Module quantity | 36pcs |
| Power supply | 5V/40A 5V/60A |
| Cabinet resolution | 96*96dots |
| Optimal viewing distance | 10m~50m |
| Optimal viewing angle | 160°(W) 120°(H) |
| Temperature | Storage:-35ºC~+85ºC
Working:-20ºC~+50ºC |
| System operating humility | 10%-95% |
| The specifications of power supply |
|
| Operating voltage | AC220V±10% |
| Average power consumption | 350W/H |
| Maximum power consumption | ≤700W/ |
| Current | ≤20mA(single LED) |
| The specifications of control system |
| Computer | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization control |
| The specifications of the main technical parameters |
|
| Driving device | Constant current driving |
| Refresh rate | ≥600Hz |
| Grey scale | RGB each 256 grade, can display 16.7M colors) |
| MTBF | ≥9000hours |
| Power switch | Automatic switch |
| Display mode | 800*600/1024*768/1280*900 |
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
