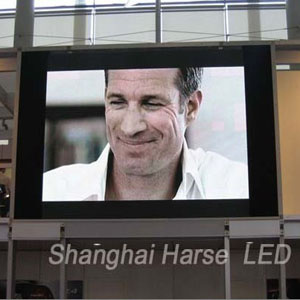

P10 outdoor LED display technology:
1). Our full color LED displays are widely used in commercial advertising, entertainment industry, financial industry, communications, power sector, traffic, stadium, plaza, school, airport, bus station etc., for advertising and displaying messages.
2). Vivid and exact picture, minimum noise, advanced test equipment, support any PC operationsystem and play a variety of information like video, word, flash, music, clock, graph etc. LED screen Cabinet design for easy install and dismantle.
3).Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
4).Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.
LED display composition:
LED display Back View-Flight Cabinet
Wooden case Packing Flight case Packing
led display
Display and control feature |
Structure feature |
Specification |
Parameter |
Specification |
Parameter |
Pixel Pitch |
10 mm |
Module size |
160 mm*160 mm |
Pixel composing |
1R1G1B |
Display resolution/module |
16 dots*16 dots |
Wavelength (R) |
625±5 |
Standard cabinet size |
1280 mm*960 mm |
Wavelength (G) |
522±3 |
Weight per sqm |
65 Kg/sqm |
Wavelength (B) |
567±3 |
Protection classification |
IP65 |
Wave Angle (H) |
140°(H)/ 60° |
Install mode |
Wallmount, hung and stand structure |
LED package |
DIP 346 |
Cabinet Material |
Iron/Aluminum |
Density per sqm |
10,000 pixel |
Working power |
Display color |
256*256*256 |
Specification |
Parameter |
Whiteness brightness |
≥5500 |
Working voltage |
AC 220v/380v±10% 47~64Hz |
Brightness level |
128 grade |
Max power/sqm |
750W/sqm |
Changing frame frequency |
60 Hz |
Average power/sqm |
400W/sqm |
Refresh |
400 Hz |
Short circuit protection |
Yes |
Driving method |
1/4 Constant Driving |
Led Lamp type |
Nichia/Cotco/Cree/Axt/Silan/Taiwan |
Control mode |
synchronous |
Working environment |
Display port |
DVI |
Specification |
Parameter |
Display mode |
1024*768 /1024*1024 |
Environment |
Outdoor |
Out of control |
1/10,000 ( scattered) |
Working temperature |
--20~50 |
lifetime |
100,000 hours |
Working Humidity |
10~90% |
Shanghai Harse Electromechanical Technic Co., Ltd., located Shanghai, focus on providing LED & Advertising products for more than 6 years. As a professional and experienced company, relying on our efficient managing & marketing team, strong technique support and experienced designers, it has completed many big LED projects at home and abroad during these time.
"To emphasize communication, mutual win-win, business integrity, " we always implement the policy. Relying on manufacturing base of Shanghai, Zhejiang & Guangdong area, we are always committed to offering best cost efficient products with better quality.
Main business:
1. Full color LED display, outdoor LED sign, indoor LED screen, Advertising LED billboard. Providing project design and installation, turn-key project.
2. Scrolling light box, verticl light box and wall-mounted scrolling light box.
3. High power LED lamp, LED high bay light, with chips of Phlips, OSRAM, CREE, BRIDEGLUX.
Welcome to our Showroom and My Products for more detailed offer info.
