Home LED Light Products 2013 Hot! Indoor LED Display Board

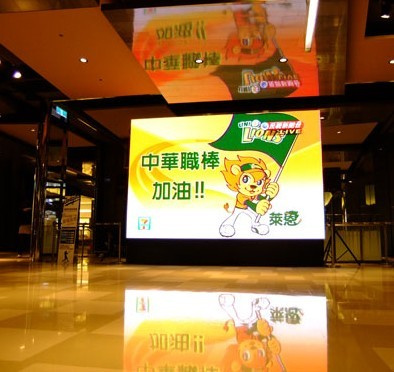

2013 Hot! Indoor LED Display Board

2013 Hot! Indoor LED Display Board
Price: US $ 1000/Square Meter
Trade Terms: FOB,CFR,EXW
Min Order: 5/Square Meter
Pay Type: L/C,T/T,D/P,Western Union,Paypal
P6 SMD Full Color Display

Products function introduction:
1) High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light
3) To pictures and character, have clear, exquisite and real display effect
4) Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion
5) Can repair each LED lamps, so the cost of maintain is lower, and easy to repair.

Products Advantages:
1) Price Advantage: We have the best competitive price at the market, also have the same even better quality.
2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each LED lamps
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4) Service advantage: Better service at same situation, better cooperation at same service!

Products application area:
1) Full color LED display: Equally or compactly make the red, green, blue color in one DOT, equally distribute at the panel, so make the whole display
2) Usually apply for physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment,
Technical Specification of indoor led display
1 Pixel pitch (mm) P5 P6 P7.62 P8 P10 P12
2 Module size (mm) 160*80 192*96 244*122 256*128 320*160 192*192
3 Cabinet size (mm) 640*480 768*576 976*732 1024*768 1280*960 768*576
4 Cabinet Resolution (pixels) 128*96 128*96 128*96 128*96 128*96 64*48
5 Pixel density (dots/sqm) 40000 27778 17222 15625 10000 6944
6 Brightness (nits) 2200 2000 1600 1500 1500 1000
7 Power Consumption (Max) 1700 1400 1000 1000 1000 800
8 Working Voltage DC 5V
9 Power Supply AC 110V or 220V
10 Working Temperature (-20°C~+60°C )
11 Humidity 10%_90%RH
12 Pixel Configuration 1R1G1B, SMD
13 Color Temperature 5000_9500
14 Display Color 16M
15 View Angle 150°/150°
16 Control Distance 120 meters by LAN cable
17 Control Mode Synchronous with PC
18 Drive Mode 1/8 duty 1/4 duty
19 Frame Rate 60Hz
20 Refresh Frequency  600 Hz
21 LED Lifetime ≥100,000 Hours
22 Operating Platform WINDOWS(WIN98,WIN2000, WIN XP)
Prod Model: HX-IF6
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Chip Color: Full Color
Display Function: Video Display
Scanning Mode: 1/8 Scan
Application: Shopping Guide
Pixel Configuration: 1R,1G,1B
Pixel Pitch: 6mm
Certification: FCC
Pixel Density: 27,777 dots / m²
System Operating Platform: WIN2000
IP Rating: IP21
Shanghai Harse Electromechanical Technic Co., Ltd., located Shanghai, focus on providing LED & Advertising products for more than 6 years. As a professional and experienced company, relying on our efficient managing & marketing team, strong technique support and experienced designers, it has completed many big LED projects at home and abroad during these time.

"To emphasize communication, mutual win-win, business integrity, " we always implement the policy. Relying on manufacturing base of Shanghai, Zhejiang & Guangdong area, we are always committed to offering best cost efficient products with better quality.

Main business:
1. Full color LED display, outdoor LED sign, indoor LED screen, Advertising LED billboard. Providing project design and installation, turn-key project.
2. Scrolling light box, verticl light box and wall-mounted scrolling light box.
3. High power LED lamp, LED high bay light, with chips of Phlips, OSRAM, CREE, BRIDEGLUX.

Welcome to our Showroom and My Products for more detailed offer info.
