200W Competitive Light-weight and compact LED High-bay light that can replace a 400W Metal Halide Lamp
(Bfz 220/200 Xx Y)
Light weight and compact LED Highbay light that can replace a 400W Metal Halide Lamp, substantial electricity savings, long lifespan, 5 years warranty, soft start function\dimming function, automatic clean function, tool-free installation.
High Power LED High Bay Light's Applicant: Lighting for workshop, warehouse, construction plant, square, pot, airport, exhibition halls, parking lots, supermarkets and specially in professional spot such as huge gymnasiums and industrial lighting project.Main Features : 1. Thin and light fashionable appearance without big and heavy shield 2. High quality LEDs, super bright , high light efficiency:>90lm/W 3. Unique all-in-one structure for severe environment 4. CE approval, IP65 Waterproof, Three Years Warranty 5. Attractive return on investment with superior performance 6. 8-15m installation height .High Power LED High Bay Light's Advantages:
Light-weight and compact all-in-one structure, Excellent thermal control
The industry's highest level of high efficacy
50,000 hours lifespan
Soft start function\dimming function for illumination control
Lightweight design-5.5KG
Limited ultraviolet light, limited attraction of insects
IP65-High waterproof, anti-dust and anti-vibration level for severe environment
Automatic clean function
Easily and fast install
Function:
More cooling fins in the back to increase heat area effectively, fast heat dissipation to delay long life of LEDs quality
Be able to operate in high temperature,moist environment and other severe environment like that, and won't be corroded
can be regulated as required angle
Green environmental protection, with no lead or mercury
Lifespan is more than 50,000 hours, saving cost on changing lights
Strictly inspected and passed CE, CQC certificationsAdvantages: Light-weight and compact all-in-one structure, Excellent thermal controlThe industry's highest level of high efficacy50,000 hours lifespanSoft start function\dimming function for illumination controlLightweight design-3.2KGLimited ultraviolet light, limited attraction of insectsIP65-High waterproof, anti-dust and anti-vibration level for severe environment Automatic clean functionEasily and fast installPacking InstructionNeutral packing box of Wuhan Sunshine BRT New Energy Co., Ltd. There are product name, product size and weight, storage marks. Open packaging and check product and accessories: 1 light fixture, four M4X10 hex bolt , two chain hoist with rings, product user manual.

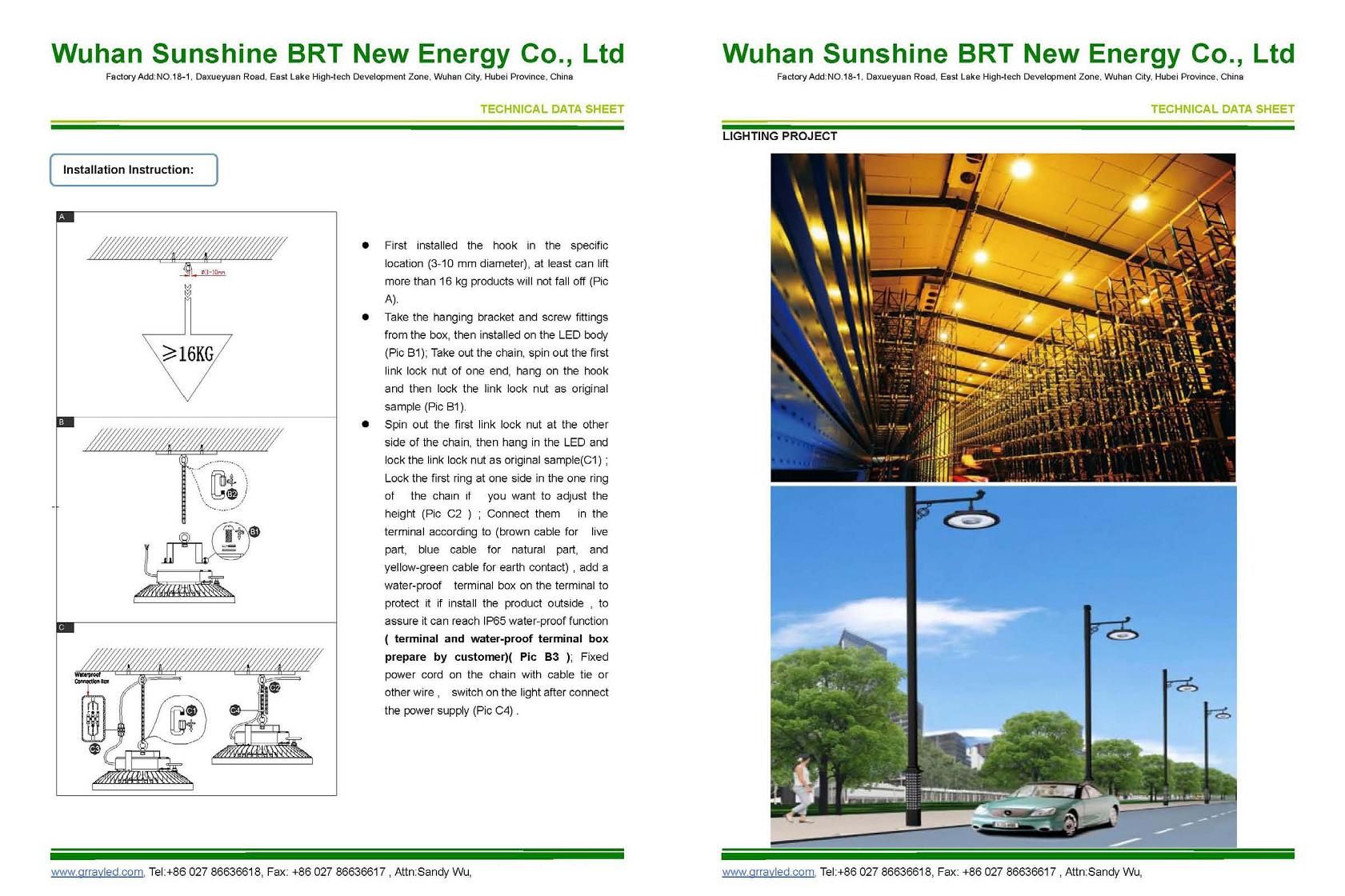

Installation Instruction:1.First installed the hook in the specific location (3-10 mm diameter), at least can lift more than 16 kg products will not fall off (Pic A).
2.Take the hanging bracket and screw fittings from the box, then installed on the LED body (Pic B1); Take out the chain, spin out the first link lock nut of one end, hang on the hook and then lock the link lock nut as original sample (Pic B1).
3.Spin out the first link lock nut at the other side of the chain, then hang in the LED and lock the link lock nut as original sample(C1) ; Lock the first ring at one side in the one ring of the chain if you want to adjust the height (Pic C2 ) ; Connect them in the terminal according to (brown cable for live part, blue cable for natural part, and yellow-green cable for earth contact) , add a water-proof terminal box on the terminal to protect it if install the product outside , to assure it can reach IP65 water-proof function ( terminal and water-proof terminal box prepare by customer)( Pic B3 ); Fixed power cord on the chain with cable tie or other wire , switch on the light after connect the power supply (Pic C4) .
| Model No. | BFZ 220/200 55 Y |
| Power | 200W |
| Dimensions | Φ400X222MM |
| N.W. | 6.2KG |
| CCT | 3000-6000K |
| Beam Angle | 110°/ 60°/ 30° |
| Installation | Surface Mounted or hoisted with a chain |
| Recommended height | 8-20m |
Founded in 2009, Wuhan Sunshine BRT New Energy as the biggest high power LED manufacturer in Wuhan City, Hubei Province in China have over 200 employees and 2000 square meters industrial park.
Organized by a strong team from Taiwan. We are professional on High Power LED Light design and solution with high quality private and aluminium magnesium alloy module. Our main series composed of LED street light, LED high bay light, LED tunnel light and LED high mast. We are professional on High Power LED Light design and solution with high quality private and aluminium magnesium alloy module. Our main series is LED street light, LED high bay light, LED tunnel light and LED high mast. The other part is commercial LED light.
We possesses various qualifications and certificates, such as National Engineering Qualification, National EMC License, CQC, CE, CB, KC, SAA, C-tick, LCP and others which have been successfully accomplished numerous of major projects in the domestic and international realms with flying colors. We have many customers all around the world and also professional on industry project and real estate project.
We have many customers all around the world and also professional on industry project and real estate project.
Our company improves products quality constantly to benefit the customers. Additional, it pays great attention to product reliabilities, safety and environment requirements. Worled keeps innovating developing new products techniques to maxmize values for the customers, bright the world and energy-saving in the world.
Our company supplys different kinds of LED lighting products. High quality and favaroble price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. We are an ISO9001: 2008 registered manufacturer, producing 50W-200W LED high bay light of high quality, we guaratee our product for 3-5 years.

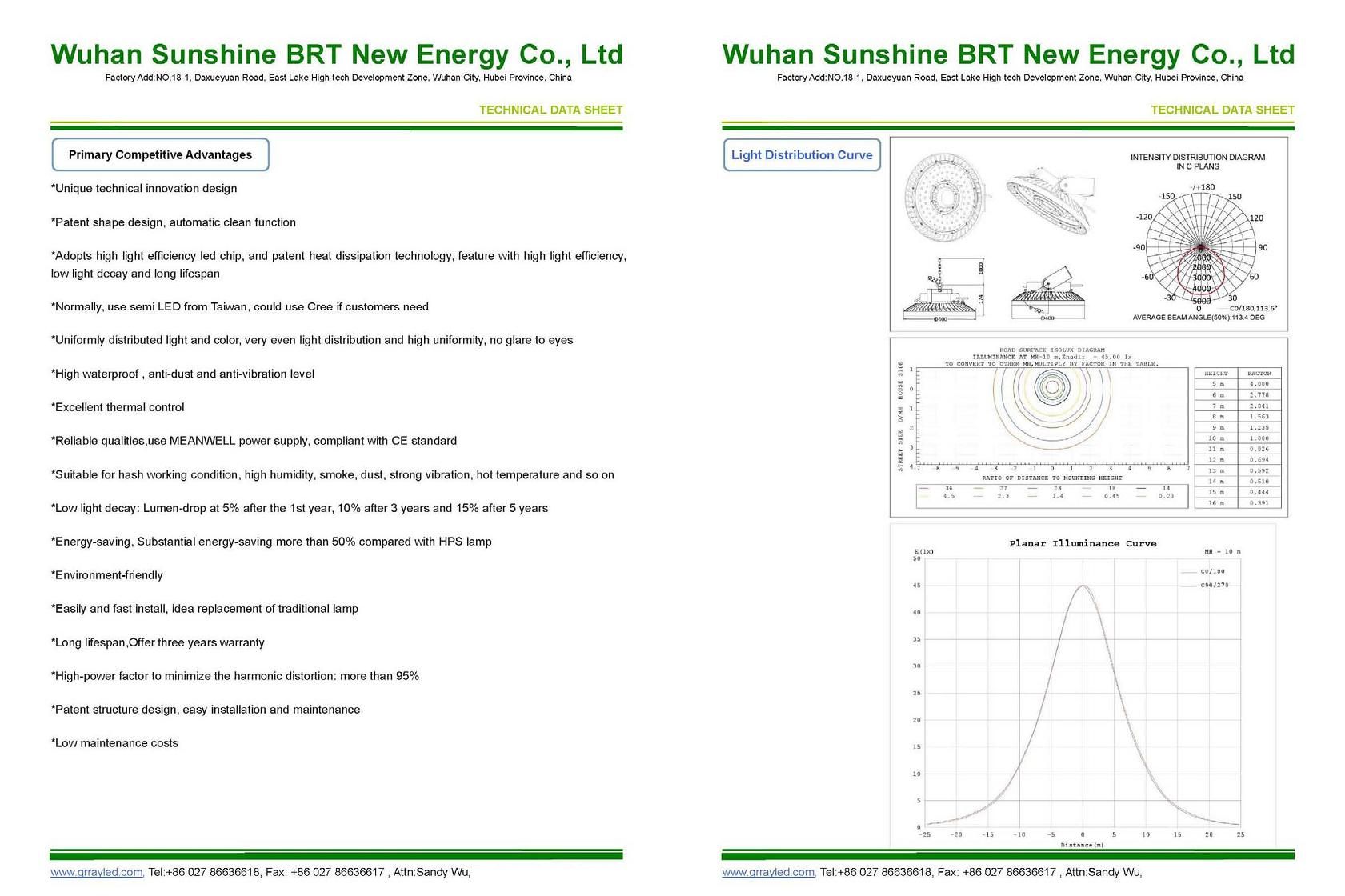

Wuhan Sunshine BRT New Energy's LED Outdoor light series is an amazing combination of technical innovations, including breakthroughs in electronics design, mechanical design, and thermal management. The core of the innovation is a new way to generate white light with LEDs to perfectly replacing the traditional HPS fixtures. Special features:
*Unique secondary optical design
*High Color rendering index
*High light efficiency
*Excellent thermal control
*Reliable qualities, use Meanell power supply, Compliant with CE standard
*Light color uniform
*Energy-saving, environment-friendly
*Easily and fast install, idea replacement of traditional lamp
*Long lifespan, Warranty: 3-5 years
*Low maintenance costs
