200W 5r / 230W 7r Sharpy Beam Moving Head / 200W Sharpy Beam Stage light / Sharpy Beam 200W Moving Head Light / Sharpy 230W Beam 7r Moving Head / 200W Beam 5R Moving Head (ES-C001)

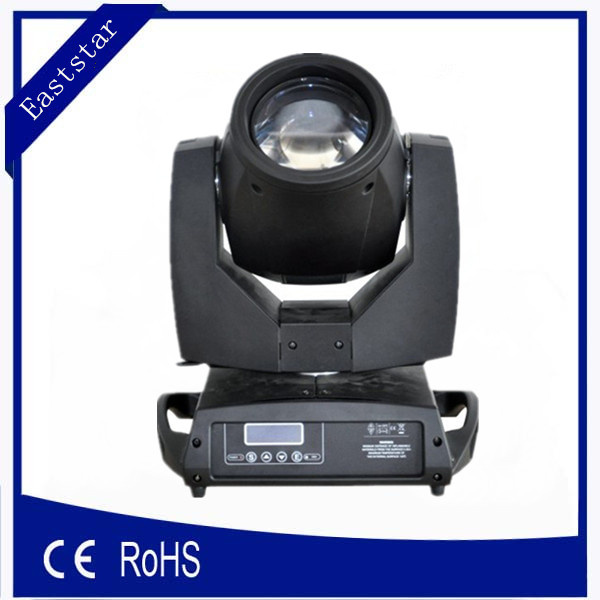

Name: 200W 5r Moving Head Beam Light
Type: Sharpy Beam Light
Model: ES-C001
200W 5r Moving Head Beam Light ( ES-C001)
Technical parameters:
- Voltage: AC100V-240V/50Hz-60Hz
- Lamp: Phillps 200W
- Control channel: 1
6CH/20CH
- Color: 5600-8000K
- Function: A color wheel, 14colors + white, a pattern plate, 17Pattern + white
- Replaceable pattern plate, high speed wobble effect, an atomizer, a eight prism, positive and negative direction of rotation
- And positioning function with prism. Focus, zoom, LCD display.
- Optical device, 3 lens type lens group, zoom 0-3.9 degree
- Electronic focusing20 meters
- Body: Aluminium structure with die-cast plastic cover
- Ballast: Electronic rectifier
- Channel: 16-20CH
- Strobe: 13 times/second
- Motor: Three-phase motor
- Horizontal scanning: 540 degrees (16bit precision scanning )
- Vertical scanning: 280 degrees (16bit precision scanning )
- NW: 17KG
- GW: 19KG
- Carton size: 40x45x51CM /carton
- Flycase size: 79x47x73 CM(2in1)
Applicable place:
- Indoor and outdoor party
- Live show
- Music show
- Concerts
- Wedding
- Special events
- TV station
- Theatre
- Meeting room
- Studio
- Ceremony
- Mobile DJ
- Exhtition booth
- and so on
| Light source | PHILIPS 5R,189W |
| Rated lifespan | 2000hrs |
| Color | 1 color wheel with 14 colors + white |
| Gobo | 1 gobo wheel with 16 gobos+ white |
| Control mode | DMX512,master/slave, self-working |
| Channel | 16CH |
| Beam angle | parallel beam angle of 0-2.3° adjustable, frost effect |
| Pan | 540° |
| Tilt | 270° |
| Shutter/strobe | 0.5-9 times/s adjustable, double flash |
| Dimming | 0-100% linear adjustable |
| IP | IP20 |
