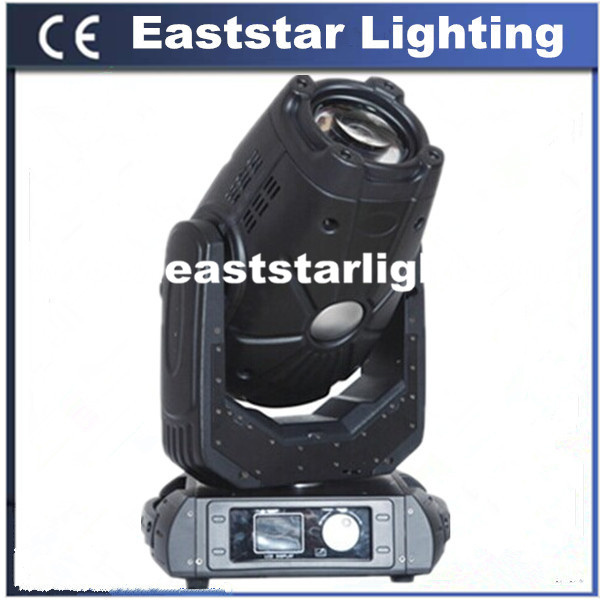

Main stage light sharpy 280w beam moving head light
Source
Lamp: Osram HRI 280W
Lamp Life Expectancy: 2.000 hrs
Color temperature: 9300K
Control: Automatic and remote on/off
Ballast: Electronic
280w beam spot wash
Electrical Specification
Power supply: Electronic auto-ranging
Input voltage range: 100–240 V, 50/60 Hz
Power consumption: 470W
Light Output
Lens Diameter: 74× 30 mm
Beam mode: 75, 250 lx @ 20 m distance
Spot mode: 82, 400 lx @ 5m distance
Zoom range: 2.5° -10° Beam application; 5° – 20° Spot application
Electromechanical Effects
Colour wheel: 13 dichroic filters + white
Rotating Gobo wheel: 9 rotating, indexable and replaceable "SLOT&LOCK" glass gobos + open (outside diameter: 15, 4 mm, image diameter: 13 mm)
Static Gobo wheel: 14 gobos + open
Prism 1: 8-facet circular prism rotating in both directions at different speeds
Prism 2: 6-facet linear prism rotating in both directions at different speeds
Frost effect: Separate, variable
Dimmer/Shutter: Full range dimming and variable strobe effect
Motorized zoom and focus
Pan: 540°
Tilt: 270°
Fixation option: Pan/Tilt-lock mechanism
Control and Programming
Control channels: 24Chs & 16Chs
Control mode: Standard DMX512, Auto and Master/ slave mode
Intelligent LCD display module, the English language selection mode, intuitive operating menu, shortcut.
Pan/Tilt resolution: 16 bit
Movement control: Tracking and vector
Color wheel positioning: 16bit
Rotating gobo wheel positioning: 8 bit
Gobo indexing & rotation: 8 or 16bit
Static gobo wheel positioning: 8 bitt
Prism indexing & rotation: 8 bit
Frost: 8 bit
Zoom: 8 or 16bit
Focus: 8 or 16bit
Dimmer: 8 or 16bit
Data in/out: Locking 3-pin & 5-pin XLR
Power input: Neutrik PowerCon
Built-in analyzer for easy fault finding
Mechanical Specification
Height: 588 mm
Width: 245mm
Depth: 360 mm
Weight: 16Kgs
280w beam spot wash
DMX Channels:
24 channels or 16 channels for your choose:
|
Packing Detail |
Standard export carton box with foam is provided. Flight case and color box is also available if needed. |
|
Shipping Options |
By Express: DHL, FedEx, UPS, TNT ( door to door ); By Air: To airport ; By Sea |
|
Delivery Time |
Mini order,3-5 working days.Under 1000 pcs,10-20 days normally. More than 1000 pcs, 20-35 days. |
|
Payment Terms |
T/T or Western Union: 30% down payment and 70% paid before delivery; |
|
Warranty Period |
All our products have one year warranty period. If there's any problems with the light,(without improper operation and outside force) during the first year,free parts and after service will be provided. |
|
Our Promise |
1. Provide solutions and high quality products |
|
2. Streamline the buying and paying processes |
|
3. Deliver the goods to our customers all over the world with speed and precision |
|
4. Protection of your sale area, ideas of design and all your private information |
|
Our Service |
1. Provide professional person to communicate with you before the order. |
|
2. Provide strict quality check for each part, each process before export. |
|
3. Provide optimum system solution based on each client's specific requirement. |
|
4. Provide complete post-sale service, including installation, technical guide and training. |
East Star Photoelectric Tech Co., Limited is a company with 6 years of professional experience in intelligent stage lighting, LED lighting applications, intelligent building lighting fixtures, and LED product development, production and sales of integrated comprehensive high-tech enterprises.
East Star Photoelectric Tech Co., Limited is located in No. 2 East Xinlian Street, Jiaoxin Village, Shijing Town, Baiyun District, Guangzhou, Guangdong, China. A group of excellent professional engineers and highly qualified technicians. For the high-speed high-quality customer service basis.
At present, the East star power more than 95% of products exported to Europe, America, Africa, Asia and other countries and regions.
Create world-class lighting company, casting the light of international top brand" for the long-term development goals, the same companies also accept OEM service.
