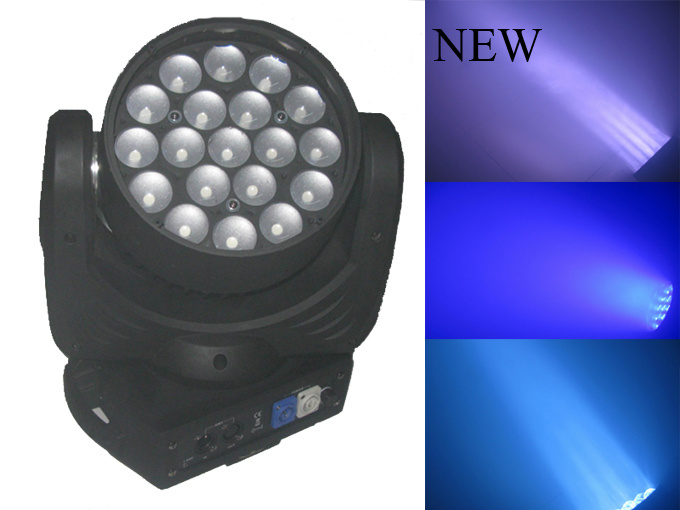

19* 15W Ostar RGBW 4in 1 LED Moving Wash Zoom/ LED Moving Beam/ Moving Head Light
Precise optical system to well use the led light output over 100%;
Silent fans, very small noise only DB 20% of the normal fan noises;
Module designs for easy assembling and warranty;
Direct DMX address setting by standard DMX controller;
Special designed IC making cool and running long time;
Black rubber painting housing
AC 100-240V 50/60HZ
Equipped with 19 pcs of Ostar RGBW 4 IN 1 15W LEDs
LED Moving Head that produces beam and wash
Zooming from 10° -60° Beam angle
4 operational modes: DMX, Master/Slave, Stand Alone & Sound Active
Blue LCD display, compact & light weight and offers plenty of pro features
Shutter/dimmer unit allowing very smooth dimming and strobe effect 1-30 flash per sec.
Blue LCD display, receiving DMX values
Remote reset function
Silent fans cooling
16 DMX-channels each DMX channel function can be achieved by LCD display setting
Pan-movement range 530° , Tilt-movement range 280°
Auto Pan/Tilt repositioning
Motorized focus controllable via DMX
Dimension: 325*188*396mm
|
DMX FUNCTIONS: 16-CHANNEL MODE |
|
Channel 1 |
Horizontal movement (Pan) |
|
Channel 2 |
pan fine 16 bit |
|
Channel 3 |
Vertical movement (Tilt) |
|
Channel 4 |
tilt fine 16 bit |
|
Channel 5 |
pan/tilt movement speed adjustments |
|
Channel 6 |
dimmer from 0-100% |
|
Channel 7 |
strobe from slow to fast |
|
Channel 8 |
red from small to full brightness |
|
Channel 9 |
green from small to full brightness |
|
Channel 10 |
blue from small to full brightness |
|
Channel 11 |
white from small to full brightness |
|
Channel 12 |
color temperature |
|
Channel 13 |
color macros |
|
Channel 14 |
color changing |
|
Channel 15 |
preset shows |
|
Channel 16 |
zooming from from 10°- 60° beam angle |
|
DELIEVER TERMS |
|
Packing |
Flight case/ carton package optional |
|
Trade |
FOB/EXW |
|
Port |
GuangZhou China |
|
Certification |
CE ROHS |
|
Payment Terms |
T/T, Westerm Union, Paypal |
|
Shipping method |
DHL, UPS, FedEx, TNT door to door service, by sea, by air, etc |
|
Delivery time |
40 HQ container within 4 weeks |
|
Brand Name |
Topstriving |
|
Origin |
GuangZhou China |
|
Producting Time |
15-20 days |
|
OEM OR ODM Service |
Accept |
|
MOQ: |
10pcs |
|
Warranty Time |
Fully 2 year |
GUANGZHOU TOPSTRIVING PHOTOELECTRICITY TECHNOLOGY Co., Limited, founded in 2010, is a supplier and manufacturer of professional entertainment effect lightings with a roster of products including, but not limited to, DMX lighting controller, LED applications, effect lightings, yoke lights, lasers, stage lights, foggers, a variety of other accessories.The dedication and commitment to the customers is the foundation of TOPSTRIVING.Our experienced and devoted workers allow us to make finished products that share both the competitive pricing of mass production as well as the quality and individuality of the items.We have a big showroom which offers you the general idea of the products;A well-equipped R&D lab, covering the structuring, electronics, program-writing and optics to instruct and control the whole procedure of developing, testing and mass production of organization.In addition to our standard products we welcome the opportunity to make products to our customers' specifications and demands.We can assist you from design and engineering through production and final packaging and conclude business based on ODM.We are also pleased to offer private labeling and silk-screening prints of our standard product designs for your individual market needs and conduct business based on OEM/ODM/OBM.
