ZGSM H series high power LED street lights are designed for use in city streets, municipal roadways, bridges, housing projects, public parks, parking lots, yards and gardens, and other settings with needs for high-brightness general illumination during the night time.
Product features:
1. PHILIPS LUXEON® T leds; MEANWELL® HLG driver.
2. Five years warranty.
3. 100, 000 hours life span.
4. IP66&IK08.
5. Have CE, RoHS, GS, CB,UL, DLC approved.
6. Horizontal/Vertical installation, 0-15 degree adjustable for both.
7. Various Photometric Types lights suitable to different road conditions...
Specifications |

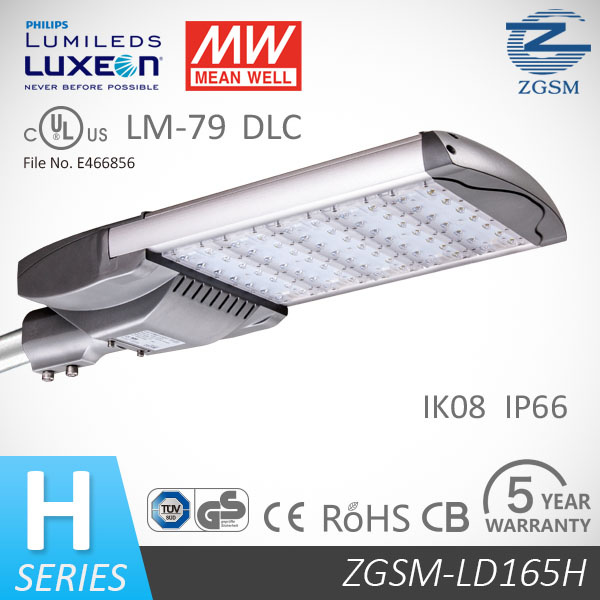

Model | ZGSM-LD165H |
LED Brand | PHILIPS LUXEON® T |
Driver Brand | Meanwell HLG series |
Norminal Wattage | 165W |
LED Module Quantity | 4 modules |
Input Voltage | 100-240V, 277V, 347V, 480V AC |
Power Efficiency | >90% |
Power Factor | >0.95 |
Lamp Rated Luminous Efficiency | >105lm/w |
Lamp Rated Lumen output | 17325 lm (Lumen tolerance +/- 5%) |
Color Rendering Index | Ra>70 |
Color Temperature | 4000 5000 or 5700K |
Photometric Type | Type I Medium;Type II Medium;Type III Medium; TypeV,Short |
Optimal Operating Temperature | 25° |
Storage Temperatures | -40°C~50°C |
Working Environment | Between-40°C~+50°C, 10%~90%RH |
Total Harmonic Distortion | < 10% |
Lumen Maintenance | > 67000 hours -L70, @25 ºC (77 ºF) |
Wind Index | Force 12 |
Body and Shell Materials | Anodized Aluminum |
IP Rating | IP66 with test report |
IK Rating | IK08 with test report |
Certification | CE,ROHS,GS,CB,UL,cUL,DLC,LM-79 |
Optional Function | 1-10V DC or PWM Signal or Resistance Dimming |
Timer/Photocell Control |
Warranty | 5 years |
|
|
Packing Details |
Fixture Dimension | 650x316 x136 mm |
Fixture Weight | 8.2 kg /18.1 lbs |
Packing Dimension | 705 x370 x200 mm |
Packing Weight | 9.6 kg /21.2 lbs |
