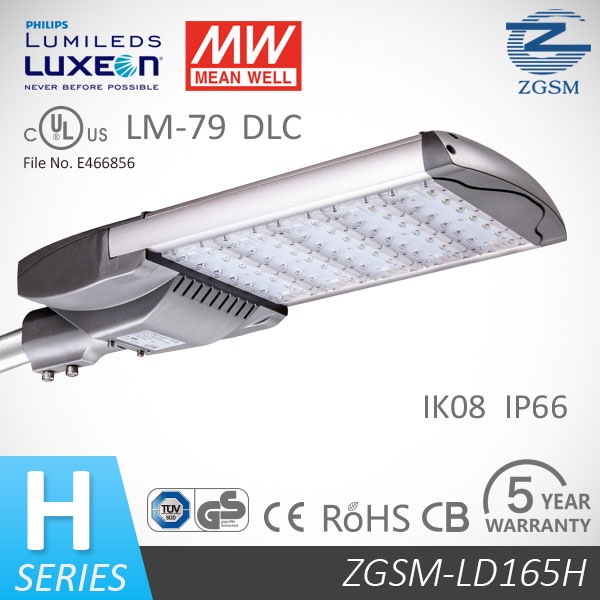

165 Watts Dimming Aluminum Alloy LED Street Light with Meanwell Driver
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Product Description
Major advantages:1. PHILIPS LUXEON® T luminous source with LM-80 report.
2. High Reliable MEANWELL® HLG driver with 5 Years Warranty.
3. Over then 67,000 hours operation lifetime.
4. Have TypeI,TypeII ,TypeIII and TypeV four Photometric Types suitable to different road conditions.
5. IK08&IP66.
6. Have horizontal and vertical two installation choose,and also has 0-15° adjustable function for each installation direction.
7. Have UL, DLC, ROHS, CE, GS, CB certificated..
8. Patent product with 7 patent certificates.
9. 5 years Warranty| Specifications |
| Model | ZGSM-LD165H |
| LED Brand | PHILIPS LUXEON® T |
| Driver Brand | Meanwell HLG series |
| Norminal Wattage | 165W |
| LED Module Quantity | 4 modules |
| Input Voltage | 100-240V, 277V, 347V, 480V AC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >110lm/w |
| Lamp Rated Lumen output | 18150 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 4000 5000 or 5700K |
| Photometric Type | Type I Medium;Type II Medium;Type III Medium; TypeV,Short |
| Optimal Operating Temperature | 25° |
| Storage Temperatures | -40°C~50°C |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 67000 hours -L70, @25 ºC (77 ºF) |
| Wind Index | Force 12 |
| Body and Shell Materials | Anodized Aluminum |
| IP Rating | IP66 with test report |
| IK Rating | IK08 with test report |
| Certification | CE,ROHS,GS,CB,UL,cUL,DLC,LM-79 |
| Optional Function | 1-10V DC or PWM Signal or Resistance Dimming |
| Timer/Photocell Control |
| Warranty | 5 years |
|
|
| Packing Details |
| Fixture Dimension | 650x316 x136 mm |
| Fixture Weight | 8.2 kg /18.1 lbs |
| Packing Dimension | 705 x370 x200 mm |
| Packing Weight | 9.6 kg /21.2 lbs |
| Prod Model: |
ZGSM-LD165H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Light Source: |
LED Light |
| Power Efficiency: |
>90% |
| Power Factor: |
>0.95 |
| Lamp Rated Luminous Efficiency: |
>110lm/W |
| Color Rendering Index: |
Ra>70 |
| Photometric Type: |
Type I Medium;Type II Medium;Type III Medium; Type |
| Packing Dimension: |
705 X370 X200 Mm |
| Packing Weight: |
9.6 Kg /21.2 Lbs |
| Power Supply: |
AC |
| Color Temperature: |
Cool White |
| Lamp Body Material: |
Aluminum Alloy |
| Application: |
Garden |
| IP Rating: |
IP66 |
| Certification: |
Dlc, CB |
| With Light Source: |
With Light Source |
| LED Chips Brand: |
Philips Lumileds |
| Power: |
165 |
| Input Voltage: |
100-240V, 277V, 347V, 480V AC |
Welcome to ZGSM. For over 8 years, ZGSM has been dedicated to creating a better quality, eco-friendly, efficient lighting environment through diverse businesses of LED lighting, LED traffic signal, solar LED lighting system and more.
Company Information
Founded in 2005, Hangzhou ZGSM Technology Co., Ltd is located in Linglong Industrial Park, the west of Hangzhou. ZGSM is a hi-tech and privated Enterprise devoted to R&D, producing and selling of high quality LED Street lights, LED high Bay Lights, LED Canopy Lights, LED Gas Station Lights, LED Tunnel Lights, LED Tube Lights, LED Traffic Light and Solar Street Light and so on. As one of the patent model enterprises and the first batch of saving energy seriveice company in Zhejiang Province, we have registered more than fifty products; We are also the members of Illuminating Engineering Society and Semiconductor Industry Association in China.
ZGSM Research
ZGSM boasts a standard production line, import and export priority and the expertise of management, development, manufacturing and marketing team. Our products covers "LED street lights, LED high bay lights, LED gas station lights, LED Canopy Lights, LED Flood Lights, LED tunnel lights, LED tube lights and; LED traffic lights; Solar LED street lights systems. Our products take the advantage of energy saving, environmental friendly, long life and so on. Been widely used in indoor/outdoor lighting, city lighting, traffic instruction, solar power generation projects and other fields.
Customer and Partner Experience
ZGSM has passed ISO9001 and ISO14001 international quality and environmental management system certificates. And all the products has passed CE, RoHS, CB, GS, UL, DLC, LM-79, LM-80 etc. Our D&R center is cooperating with many research institutes at domestic and abroad to develop the projects to provide customers with high-efficient, energy-saving, eco-friendly products and technical services. At present, our products have been exported to more than 100 countries and regions. ZGSM owns distribution network and after-sales service in 30 provincial capital and listed cities in China. We also have participated many important constructive projects over the world, and gained high praise from our customers.
Our Values
Through innovative, reliable products and services; Talented people; A responsible approach to business and global citizenship; And collaboration with our partners and customers, ZGSM is taking the world in a premium lighting experience.
