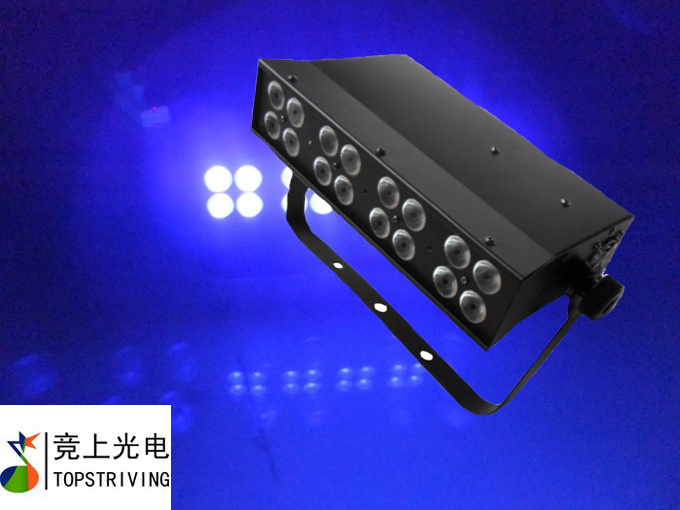

16*3W LED Bar UV Stage Light

16*3W Led Bar UV Stage Light

Technical Specification:

1. LED blacklight UV 3W UV LED LED bar UV 16;

2. Great for performance stages, theatrical productions and special effects installations;

3. Electronic power supply AC 90-240V 50/60Hz;

4. Full Master/Slave operation in any operational mode;

5. Color strobe effect and long life operation;

6. Black housing with 16*high MCD 3W UV LEDs, ultraviolate;

7. Producing various colors, red, green, blue, yellow, white, pink, purple, cyan;

8. Low heat, Long Life LEDs (100, 000 hrs. );

9. Operational Modes: DMX 512 protocol, Sound Active, Auto, master/slave;

10. Color strobe effect slow to fast, electronic dimming from 0-100%;

11. Uses 4 DMX Channels;

12. Stand Alone, Master/Slave;

13. Linkable via 3-pin XLR cable, hanging brackets included;

14. Dual brackets allowing fixture to be hung or set on the ground;

15.4-digital LED display;

16. Dimension: 32*6*18cm;

17. Net weight: 3kgs.


DMX channels:
Channel 1: UV(ultraviolet) color from small to big brightness(dimmig)
Channel 2: Strobe from slow to fast
Channel 3: Dimmer, color macro
Channel 4: Dimmer, increasing brightness, then decreasing brightness, colors following one by one
Channel 5: Running speed adjustments

AUTO: Run the preset shows;


CF00: Increasing brightness, then decreasing brightness, the speed of increasing brightness, then decreasing brightness can be adjusted by the buttons of UP and DOWN from 00 slowest to 99 fastest.


CCO8: Color changes, the speed of color changes can be adjusted by the buttons of UP and DOWN from 00 slowest to 99 fastest.


CS99: Color selections, the color selections can be done by the buttons of UP and DOWN from 00 to 99.

Y000: Press the button MODE five seconds, till Y000 shows in the led display, the UV color brightness can be adjusted by the buttons UP or DOWN.
