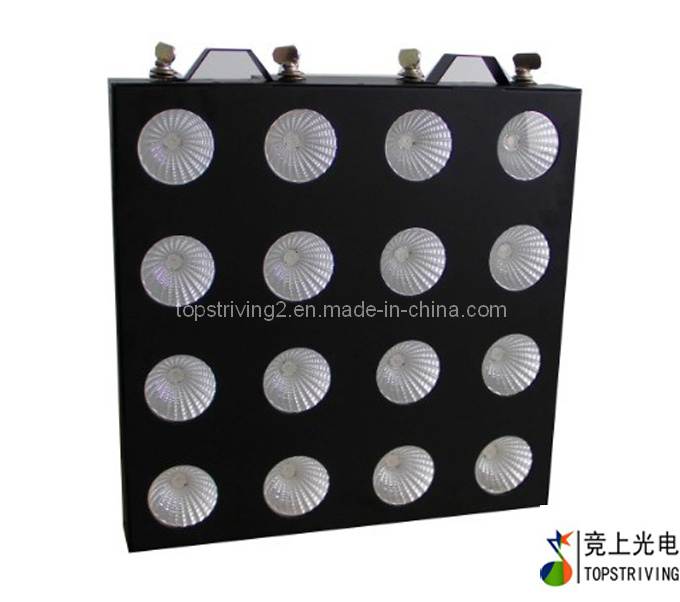

16*30W Stage Lighting / LED MATRIX Light with 3 in 1 (LED MATRIX)

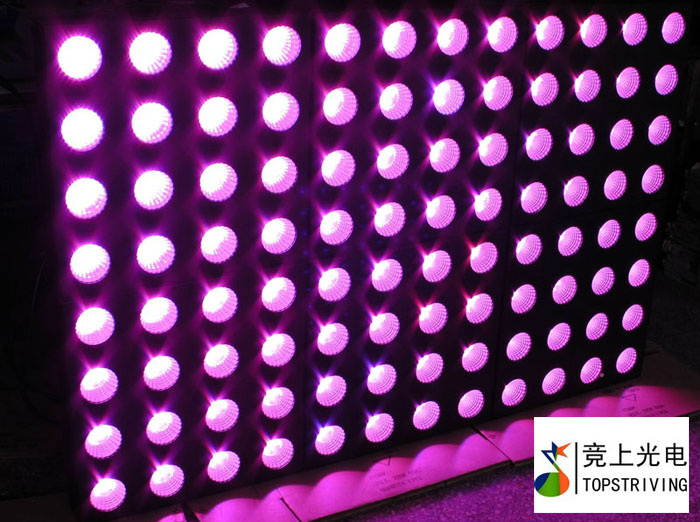

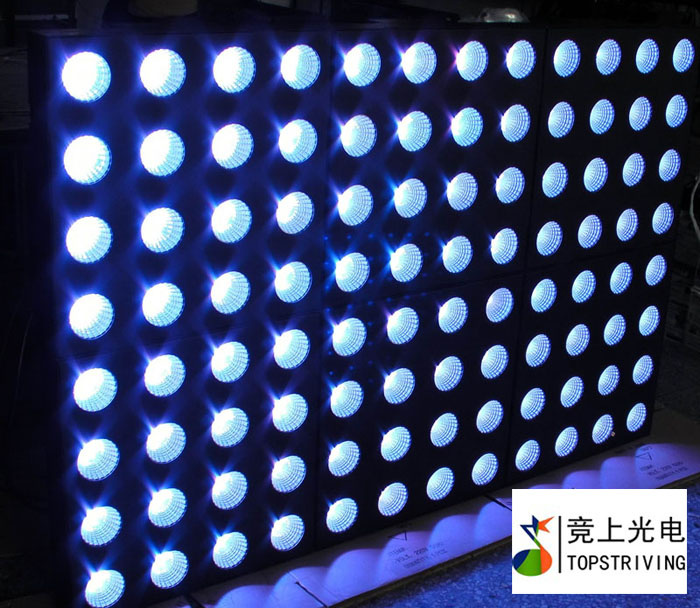

4/6/8 etc. Pcs Can be combined to install as led screen to make led matrix effects
Multi-voltage operation: AC100-240V 50/60Hz
Featured with both color painting and dot-matrix
full Master/Slave operation in any operational mode
Electronic Dimming, color strobe effect and long life operation
equipped with 16 high MCD RGB 3 in 1 30W LEDs
Smooth RGB color mixing
low heat,Long Life LEDs (100,000 hrs.)
operational Modes: DMX 512 protocol, Sound Active, Auto, master/slave
Beam Angle:25°degrees, field angle 45°degrees
Uses 8/48 DMX Channels
Stand Alone, Master/Slave,sound active
Linkable via 3-pin XLR cable
16 preset shows
Power Consumption: 500W max
Dimensions (LxWxH):500*500*145mm
Weight: 6.0kgsPicture:
DMX FUNCTIONS: 8-CHANNEL MODE A
|
Channel 1 –operation modes
Channel 2 – red from darkness to full brightness
Channel 3 – green from darkness to full brightness
Channel 4 –blue from darkness to full brightness
Channel 5 –dimmer from darkness to full brightness
Channel 6 –strobe
Channel 7 –preset shows
Channel 8 –running speeds adjustments |
DMX FUNCTIONS: 8-CHANNEL MODE B
|
Channel 1 –operation modes
Channel 2 – red from darkness to full brightness
Channel 3 – green from darkness to full brightness
Channel 4 –blue from darkness to full brightness
Channel 5 –ON/OFF LED group 1 outputs
Channel 6 –ON/OFF LED group 2 outputs
Channel 7 –ON/OFF LED group 3 outputs
Channel 8 –ON/OFF LED group 4 outputs |
DMX FUNCTIONS: 48-CHANNEL MODE C
|
Channel 1 –red 1
Channel 2 – green 1
Channel 3 – blue 1
Channel 4 –red 2
Channel 5 – green 2
Channel 6 – blue 3
................
Channel 46 –red 16
Channel 47 – green 16
Channel 48 – blue 16 |
