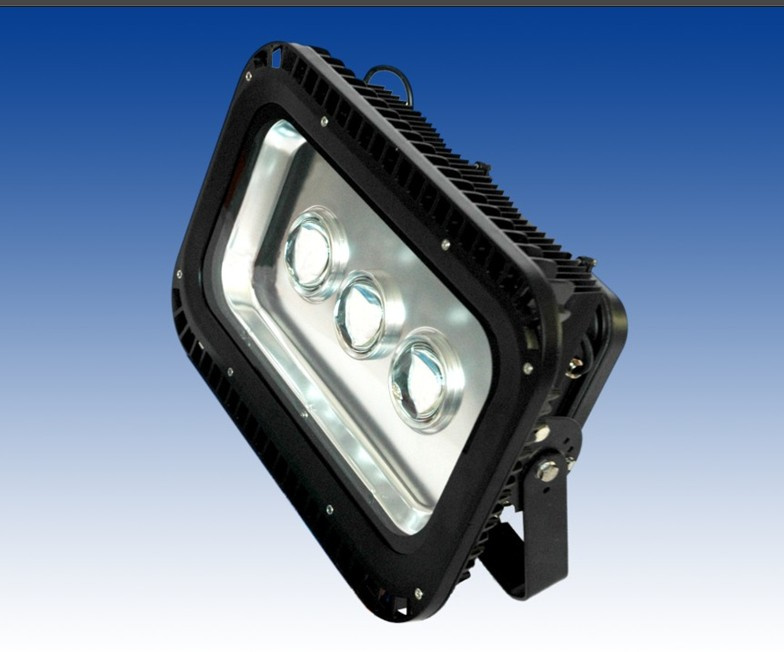

Outdoor LED Flood Light
1. LED flood light housing adopts good quality high-pressure die cast aluminum, surface powder is by electrostatic spray.
2. Very good heat dissipation, high working efficiency...
3. The floodlights adopt toughened safety glass and silicon rubber gasket.
4. IP65 waterproof designed, Input voltage AC 85-265.
5. It's convenient for usage and installation. Constant-current drive guarantees its stability specification.
Application of Outdoor LED Flood Light:
Outdoor lighting
Architectural lighting
Landscape lighting
Facade lighting
Sport field lighting, such as Football Stadium, Playground, Badminton Court, Square, Park, Wall of buildings, Church, Hotel, Bridge, Tree, Public area, Landscape etc.
Model NO. |
CH-H4W150 |
Input voltage |
AC85~265V |
Frequency |
50~60HZ |
Power factor |
> 0.90 |
Efficiency |
> 80% |
Light Source |
50W LED |
Rated power |
150W |
Luminous flux |
12000lm |
Illumination(3M) |
≥ 330Lux |
CRI |
Ra> 80 |
CCT |
4000-4500k;
6000-6500k |
Angle |
60° |
IP degree |
IP65 |
Working temperature |
-20~40 º C |
Life time |
> 50000Hrs |
Package size |
525*515*385mm |
Weight |
10kg |
Qty |
2pcs/CTN |
Shenzhen Cohon Lighting Co., Ltd. is a high-tech manufactory which is mainly engaged in technical research, production and service of LED semiconductor illumination. with an area of 5000 square meters, our company is equipped with numerous of advanced experimentation equipment and full automatic production pipeline of LED devices.
We have a very excellent design and R& D group who are professional in the field of LED application, external appearance, structure, illumination and drive electric source. Our company has employed doctors of Chinese Academy of Science as technology consultant. We have acquired many patents already, and now, more than ten products are under application for patents by our R& D hard working.
Our products include LED street light, LED headlights, LED miner's lamps, high power LED spotlights, LED emergency lights, LED floodlights, LED underwater lights and series of high-power LED commercial semiconductor lights. Besides, we also have developed capability of supply some special standard LED lighting products. And our products have passed the CE, UL and RoHS.
Our products have been exported to all over the world and they are welcomed by our customers, especially the series of 1W power LED miner's headlight has occupied more than 50% market in China. We will try our best to contribute all strength for the global green lighting and put more and better green semiconductor lighting products to the market.
