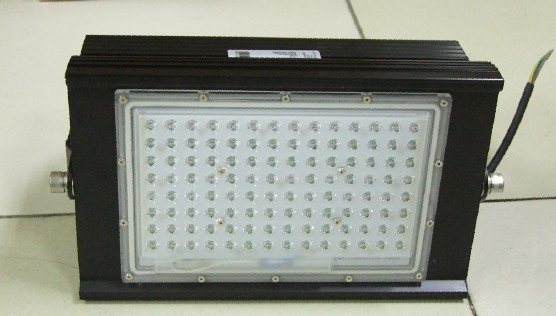

Product Features:
1. Aluminum die casting heat sink base with a cooling fan
2. Integrated CREE WHT LED.
3. Instant on/off
4. Does not produce ultra violet (UV) light or IR
5. Environmentally friendly no mercury or other hazardous materials & fully recyclable
6. Universal AC input /Full range, 100-277V
7. Thermal protection system
8.Short circuit / Over current / Over voltage / Over temperature protection
9.IP65 design for outdoor
10.RoHS
11.Safety:Conform to GB7000.1-2007 / GB7000.5-2005 CNS 14335,IEC 60598-2-3
Usage:
|
Technicalparameter |
Numerical value |
Unit |
|
Inputvoltage range |
100-277V(AC) |
V |
|
Inputfrequency |
50/60 |
Hz |
|
Power consumption |
150±10% |
W |
|
Luminous flux |
11000±10% |
lm |
|
IPrate |
IP65 |
IP |
|
PFC |
>0.9 |
|
|
Color temperature |
6000±500 |
K |
|
Light source lifespan |
>5,0000 |
hrs |
|
LED type |
Cree LED |
XPE WHT |
|
LED Quantity |
70 |
PCS |
|
Weight |
5.3 |
KG |
Founded in 1993, with years of continuous product innovation and technical development, PARA LIGHT is now a leader in the opto-electronic components world market. PARA LIGHT is ISO -9002 & QS 9000 certificated, and has approximately 1500 employees, including a quality control staff of 80 and R&D staff of 50 dedicated to serving customers needs.
Our standard product line includes LED LAMPS, LED SEVEN SEGMENT DISPLAYS, DOT MATRIX DISPLAYS, LED LIGHT BAR, LCD BACK LIGHT & SMD LED, which have created great turnover and the confidence of our customers. PARA LIGHT produces, on average, more than 150 million LED lamps and 15 million LED displays per month.
PARA LIGHT has created an environment that encourages teamwork and continuous improvement. We have an ongoing program of market research and new product development. Hence, in addition to the standard models, we are receiving very favorable evaluation reports from our customers for the new high efficiency super bright LEDs, especially the UV LED, BLUE LED, WHITE LED and AlInGaP versions are generating major interest world-wide.
