Materials:Die-casting aluminum electric cabinet, high purity aluminum reflector, equipped with silicon rubber seal and toughened glass.
Applications:Buildings, landscape, parking lot, advertisement board, stadium, etc and other spot lighting places.

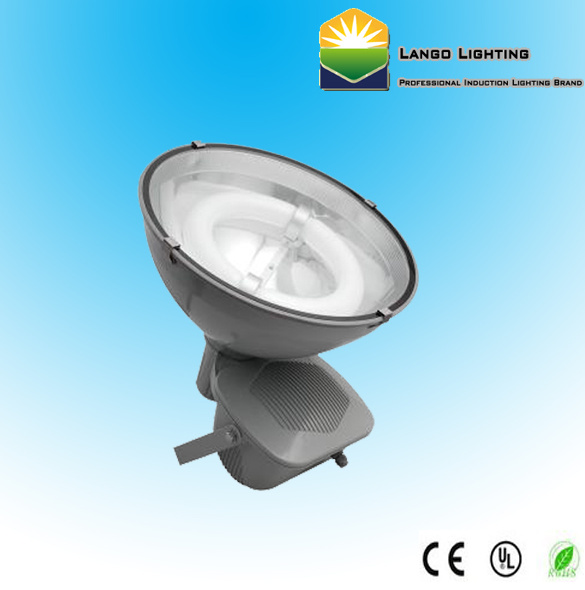

LG05-003 Product Features:
1. High pressure die-casting aluminum oversized electric cabinet, with dimmable ballasts.
2. High temperature resistant silicon seal and toughened glass.
3. Thickened high purity aluminum reflector, light efficiency is improved after oxidized mirror process.
4. Equipped with our Company's LG circular induction lamp; high luminous efficiency, long use-life, excellent color rendering, stable ray and no flash, energy saving, wide color temperature, soft ray, stable light output, etc.
|
Lamp Source |
|
Series |
Model |
CRI |
Nominal Light Flux |
Effective Light Flux(plm) |
Lumen Maintenance(2000h) |
Working Frequency(KHz) |
Ambient Temperature(ºC) |
Light Size |
System Power |
Warranty(Year) |
|
(Ra) |
(Lm) |
(mm) |
(W) |
|
Circular |
LG-R-150W |
>80 |
12000 |
22300-23000 |
≥95% |
230 |
-25~50 |
Φ275xH83 |
155 |
5 |
|
Circular |
LG-R-200W |
>80 |
16000 |
28000-30000 |
≥95% |
230 |
-25~50 |
Φ317xH94 |
210 |
5 |
|
Circular |
LG-R-250W |
>80 |
20500 |
37000-38000 |
≥95% |
230 |
-25~50 |
Φ317xH94 |
263 |
5 |
|
Circular |
LG-R-300W |
>80 |
24500 |
44500-46000 |
≥95% |
230 |
-25~50 |
Φ391xH94 |
315 |
5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Ballasts |
|
Model |
Working |
Working Current |
Electric |
Working Frequency(KHz) |
Power Factor |
Operating Temperature (ºC) |
Harmonic |
Shade Materials |
Ballast Type |
Input Power(W) |
|
Voltage(VAC) |
(VAC) |
Frequency(Hz) |
|
LG-Z-150H |
165-265 |
1.40/0.70/0.58 |
50/60 |
230 |
>0.98 |
-25~50 |
≤10% |
Aluminum section |
Standard |
155 |
|
LG-Z-150K |
90-300 |
1.40/0.70/0.58 |
50/60 |
230 |
>0.98 |
-25~50 |
≤10% |
Aluminum section |
Wide |
155 |
|
LG-Z-200H |
165-265 |
1.90/0.95/0.78 |
50/60 |
230 |
>0.98 |
-25~50 |
≤10% |
Aluminum section |
Standard |
210 |
|
LG-Z-200K |
90-300 |
1.90/0.95/0.78 |
50/60 |
230 |
>0.98 |
-25~50 |
≤10% |
Aluminum section |
Wide |
210 |
|
LG-Z-250H |
165-265 |
2.50/1.24/0.97 |
50/60 |
230 |
>0.98 |
-25~50 |
≤10% |
Aluminum section |
Standard |
263 |
|
LG-Z-250K |
90-300 |
2.50/1.24/0.97 |
50/60 |
230 |
>0.98 |
-25~50 |
≤10% |
Aluminum section |
Wide |
263 |
|
LG-Z-300H |
165-265 |
1.91/1.43/1.19 |
50/60 |
230 |
>0.98 |
-25~50 |
≤10% |
Aluminum section |
Standard |
315 |
Established in 2005, Lango Lighting (Shanghai) Co., Ltd. is a professional manufacturer engaged in the research, development, production, sale and service of induction lighting both of high frequency and low frequency, induction ballast. Located in Shanghai, Lango Lighting (Shanghai) Co., Ltd. has around 5, 000sqm for the manufacturing base.
The induction lighting and lamps provided by Lango Lighting (Shanghai) Co., Ltd. are widely used in street lighting, workshop lighting, tunnel lighting, gas station lighting, spot lighting, flood lighting, garden lighting, plant growing lighting, etc. We also provide clients with energy efficient lighting solution in an economical way.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as North America, Europe, South America, the Middle East, Southeast Asia, etc. We also welcome OEM and ODM orders.
Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
