Materials: High pressure die-casting aluminum electric box, high temperature resistant PC cover.
Applications: Industrial workshops, warehouses, stadium, airport, bus station, amusement park, exhibition centers, hyper markets.

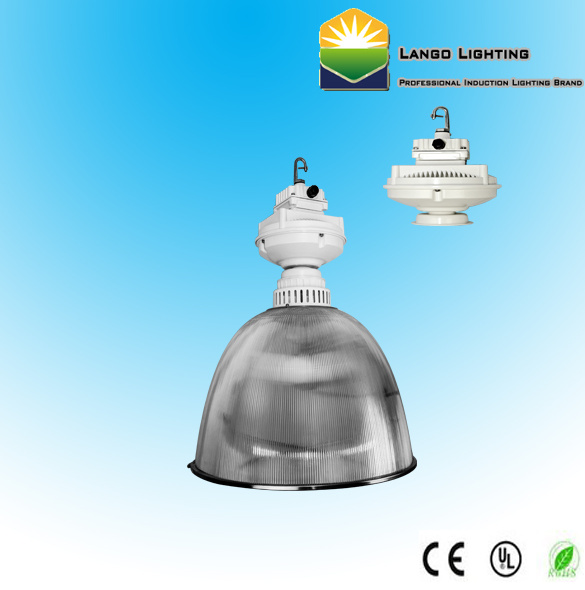

LG-GC18-16" Product Features:
1. High pressure die-casting aluminum electric box, streamline aluminum alloy electric box.
2. Electro-statics spraying on the surface, anti-corrosion, and steadfast.
3. High temperature resistant PC cover, low glare and stable light property.
4. Ballasts and electric box are separate, with good heat dissipation and reliability.
5. Electric box and shroud are connected in the quick connection way, easy for installation, and lowering the cost of transportation.
6. Equipped with our company's circular induction lamp, high luminous efficiency, long use-life, excellent color rendering, stable ray and no flash, energy-saving, wide color temperature, soft ray, stable light output, etc.
7. Our company's 40-80W low frequency circular induction lamps could be installed.
8. The standard cover is PC cover, you may choose not to install it if needed.
|
LG-GC18-16" Lamp Sources: |
|
|
|
|
|
|
|
|
|
|
|
Lamp Source |
|
Series |
Model |
CRI |
Nominal Light Flux |
Effective Light Flux(plm) |
Lumen Maintenance(2000h) |
Working Frequency(KHz) |
Ambient Temperature (ºC) |
Light Size |
System Power |
Warranty(Year) |
|
(Ra) |
(Lm) |
(mm) |
(W) |
|
Circular |
LG-R-60W |
>80 |
4800 |
5850-6900 |
≥95% |
230 |
-25~50 |
Φ152xH77 |
63 |
5 |
|
Circular |
LG-R-80W |
>80 |
6400 |
9600-11000 |
≥95% |
230 |
-25~50 |
Φ215xH83 |
85 |
5 |
|
Circular |
LG-R-100W |
>80 |
8000 |
14000-15000 |
≥95% |
230 |
-25~50 |
Φ215xH83 |
105 |
5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
LG-GC18-16" Ballasts |
|
Model |
Working |
Working Current |
Electric |
Working Frequency(KHz) |
Power Factor |
Operating Temperature (ºC) |
Harmonic |
Shade Materials |
Ballast Type |
Input Power(W) |
|
Voltage(VAC) |
(VAC) |
Frequency(Hz) |
|
LG-Z-60L |
220±10% |
0.29 |
50/60 |
230 |
>0.93 |
-25~50 |
≤10% |
Die-casting aluminum |
Standard |
63 |
|
LG-Z-80L |
220±10% |
0.39 |
50/60 |
230 |
>0.93 |
-25~50 |
≤10% |
Die-casting aluminum |
Standard |
85 |
|
LG-Z-80H |
165-265 |
0.77/0.39/0.31 |
50/60 |
230 |
>0.98 |
-25~50 |
≤10% |
Die-casting aluminum |
Standard |
85 |
|
LG-Z-80K |
90-300 |
0.77/0.39/0.31 |
50/60 |
230 |
>0.98 |
-25~50 |
≤10% |
Die-casting aluminum |
Wide |
85 |
|
LG-Z-100L |
165-265 |
0.95/0.48/0.39 |
50/60 |
230 |
>0.98 |
-25~50 |
≤10% |
Die-casting aluminum |
Standard |
105 |
|
LG-Z-100K |
90-300 |
0.95/0.48/0.39 |
50/60 |
230 |
>0.98 |
-25~50 |
≤10% |
Die-casting aluminum |
Wide |
105 |
Established in 2005, Lango Lighting (Shanghai) Co., Ltd. is a professional manufacturer engaged in the research, development, production, sale and service of induction lighting both of high frequency and low frequency, induction ballast. Located in Shanghai, Lango Lighting (Shanghai) Co., Ltd. has around 5, 000sqm for the manufacturing base.
The induction lighting and lamps provided by Lango Lighting (Shanghai) Co., Ltd. are widely used in street lighting, workshop lighting, tunnel lighting, gas station lighting, spot lighting, flood lighting, garden lighting, plant growing lighting, etc. We also provide clients with energy efficient lighting solution in an economical way.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as North America, Europe, South America, the Middle East, Southeast Asia, etc. We also welcome OEM and ODM orders.
Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
