Features:
1. Super bright SMD LED as lighting sources, high efficiency, energy saving, Eco-friendly.
2. Integration for die-casting radiator fins, ultra-thin light emitting surface, reduce the concentration of heat, more repid heat dissipation, greatly reducing source temperature, prolong life, improve the luminous efficiency.
3. Tempered glass, light efficiency>130%.
4. With special PC reflector panel, the light extracting rate increases by about 15%.
5. There are 8°, 15°, 36°, 60°, 120° beam angle options, PC reflectors, and suitable for different situations.
6. Resistant to dust accumulation and ponding, with a protection grade reaching IP65.
7. Long life span 5, 0000hours with 7years warranty.
General Parameters
| Technical data |
| Model | LED-FLL018A | Size | 430*340*130mm |
| Category | LED flood light | Package Size | 450*360*150mm |
| Power | 150W | Net Weight | 8.5kgs |
| Input Voltage |
AC90-305V | Gross weight | 9.5kgs |
| Frequency | 50/60Hz | Material | Aluminum, tempered glass |
| Power Fator | >0.95 | Available color | Gray/customized |
| Light source | Philips 3535 | Light degradation rate | 25000h ≤ 30% |
| LED QTY | 45PCS | Rated life | 50000h |
| Efficiency(lm/w) | >130lm/W | Working temperature | -40~+50°C |
| Color temperature (k) | 2700~7000 | IP grade | IP65 |
| Color rendering index | Ra>85 | Warranty | 7 Years |
| Technical data |
| Model | LED-FLL018B | Size | 475*385*130mm |
| Category | LED flood light | Package Size | 490*360*150mm |
| Power | 200W | Net Weight | 10.9kgs |
| Input Voltage |
AC90-305V | Gross weight | 12.0kgs |
| Frequency | 50/60Hz | Material | Aluminum, tempered glass |
| Power Fator | >0.95 | Available color | Gray/customized |
| Light source | Philips 3535 | Light degradation rate | 25000h ≤ 30% |
| LED QTY | 45PCS | Rated life | 50000h |
| Efficiency(lm/w) | >130lm/W | Working temperature | -40~+50°C |
| Color temperature (k) | 2700~7000 | IP grade | IP65 |
| Color rendering index | Ra>85 | Warranty | 7 Years |
Application:
Widely used in buildings, buliding lanscape, parking lots and billboards etc.
Product Sizes:

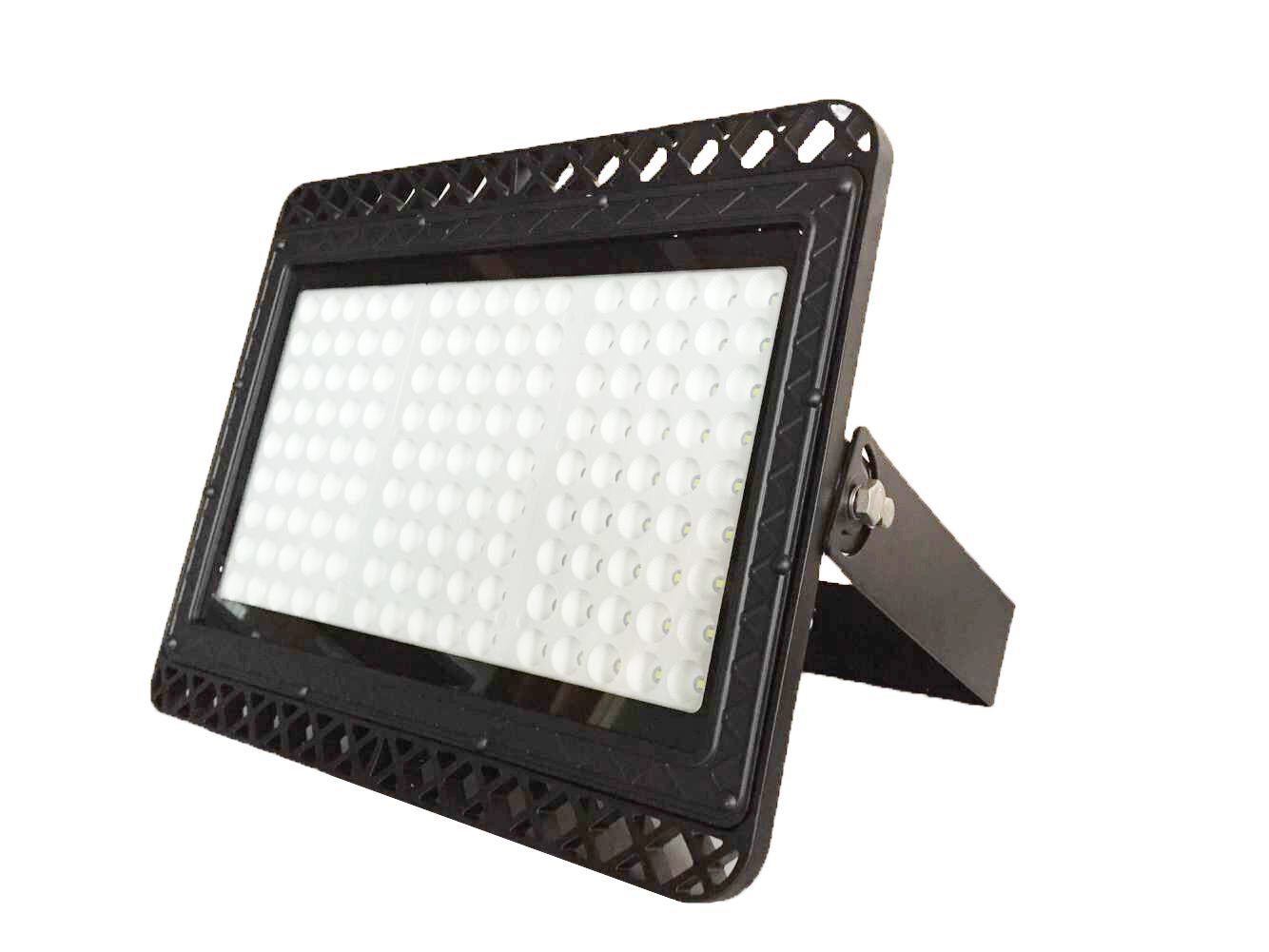

Product pictures:
