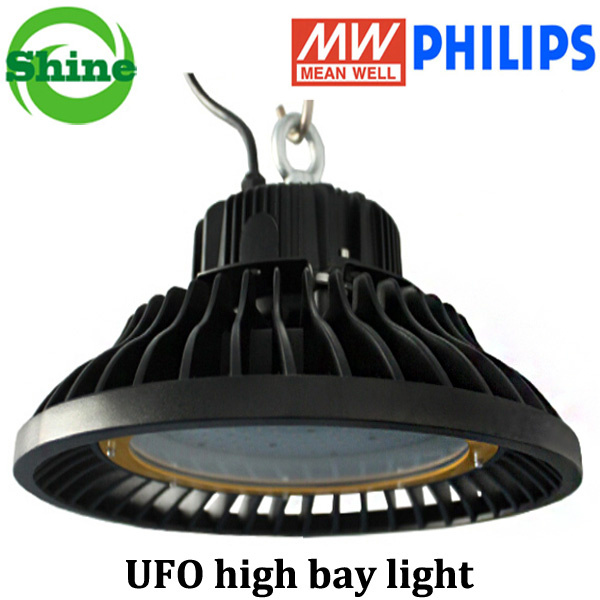

130lm/W UFO LED High Bay Light
| Price: |
US $ 60-70/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
LED HIGH BAY LIGHT HLL015 FEATURES:
1. Unique designed UFO shape , lighter and smaller
2. Nichia 3030 & Philips 3030 , Ra> 80
3. Meanwell led driver
4. Glass cover or PC convex cover
5. Wide aluminum plate design, heat dissipation fast and evenly
6. Ideal mounting height: 8-15 m
7. Installation: Rack mounting & Hook hanging
8. Working temperature: -20 ° C ~ + 50 ° C
9. IP 65 protection level
Technical data
| Technical data |

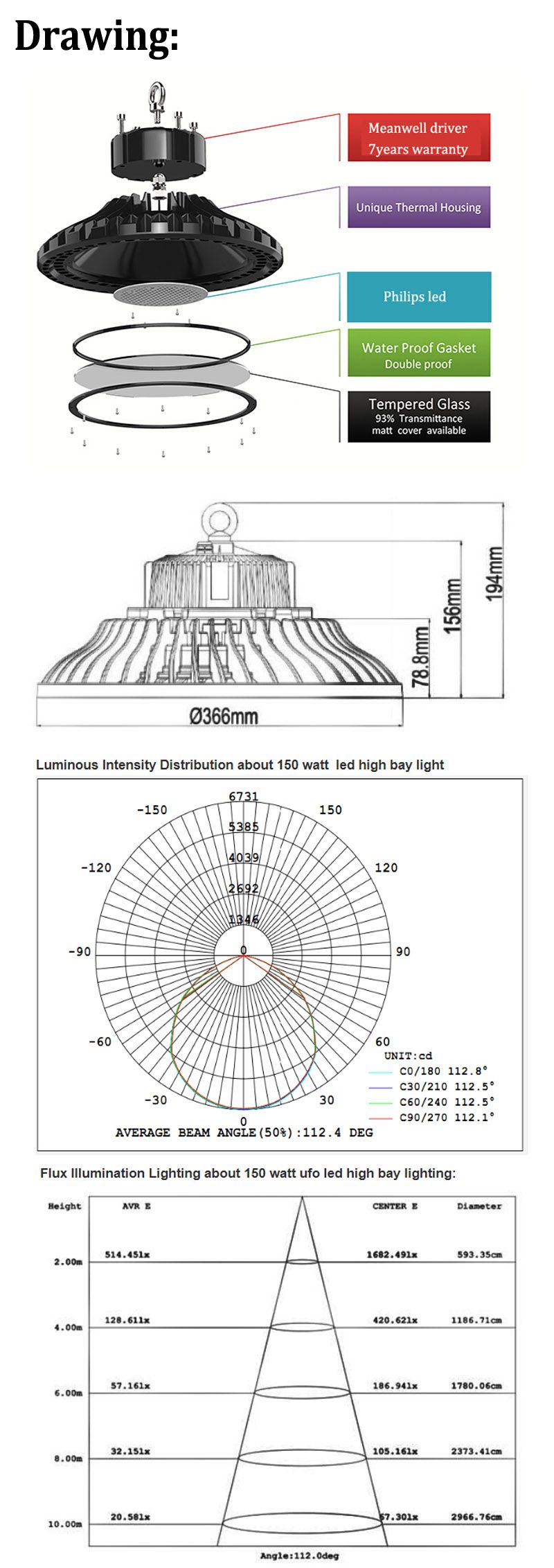

| Model | LED-HLL015A | size | Ø366*H194 mm |
| Category | LED high bay light | Package Size | 460*460*270mm |
| Power | 120W/150W | Net Weight | 6.8kgs |
| Input Voltage |
AC90-305V
| Gross weight | 8.0kgs |
| frequency | 50/60HZ | Material | Aluminum, tempered glass |
| Power Fator | >0.95 | Available color | Gray/customized |
| light source | Philips 3030 | Light degradation rate | 25000h ≤ 30% |
| LED QTY | 168PCS | Rated life | 50000h |
| Efficiency(lm/w) | >120lm/w | Working temperature | -40~+50°C |
| Color temperature (k) | 2700~7000 | IP grade | IP65 |
| Color rendering index | Ra>85 | Warranty | 7 Years |
| Technical data |
| Model | LED-HLL015B | size | Ø366*H194 mm |
| Category | LED high bay light | Package Size | 460*460*270mm |
| Power | 200W | Net Weight | 6.8kgs |
| Input Voltage |
AC90-305V
| Gross weight | 8.0kgs |
| frequency | 50/60HZ | Material | Aluminum, tempered glass |
| Power Fator | >0.95 | Available color | Gray/customized |
| light source | Philips 3030 | Light degradation rate | 25000h ≤ 30% |
| LED QTY | 224PCS | Rated life | 50000h |
| Efficiency(lm/w) | >120lm/w | Working temperature | -40~+50°C |
| Color temperature (k) | 2700~7000 | IP grade | IP65 |
| Color rendering index | Ra>85 | Warranty | 7 Years |
Application:
Workshop,factory,warehouse,highway toll station, Gas station, Supermarket, exhibition,gym etc.
Packaging & Shipping
Packaging: carton for strong protection
Shipping : 3-5 for samples, 5-15 for all items, DHL UPS EMS others are available.
| Prod Model: |
LED-HLL015 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
90~305V |
| Frequency: |
50/60Hz |
| Lamp Body Material: |
Aluminum |
| IP Rating: |
IP54 |
| Certification: |
VDE |
| Color Temperature: |
2700-6000 |
| Color: |
Optional |
| Power: |
120W,150W,200W |
| Usage: |
Workshop, Factory, Warehouse, Highway Toll Station |
| Beam Angle: |
110 |
Shine Lighting Technology Co., Ltd. is a high-tech enterprise in Changzhou city, Jiangsu province. Our company has a number of automated production lines, testing lines and testing equipments. We mainly produce two energy-efficient lighting products: LED lamp, induction lamp and matching lighting fixtures. These products are widely used in popular applications such as industrial lighting, commercial lighting, ground lighting, street and road lighting, city landscape lighting, office lighting, household lighting, plant grow lighting, fishing vessel lighting, aquarium lighting, etc.
Shine Lighting is a rapidly growing and innovative company, it recognizes the importance of scientific research, technological innovation, new product development, continuous innovation of products, continuous improvement of production capacity and overall system competitiveness; The company has a strong and highly skilled technical team that enables it to have its own research and development center, that allows for structure, electronic, and light source development as a whole, producing several dozens of national patent innovations annual. The company also acquired quality management system ISO9001-2008 certification by SGS; Our products meet the national GB standards, European IEC standards, ANSI standards and Taiwan CNS standard. Our induction lamps and LED lamps have passed CCC, CE, FCC, RoHS etc. certifications.
"Customer service, service market, service society" is the firm's business philosophy, SHINE Lighting willing to work with each and every concern and support for friends and light the growth of low carbon lighting, energy saving and emission reduction to continuously working together and win-win situation together to create a bright future.
