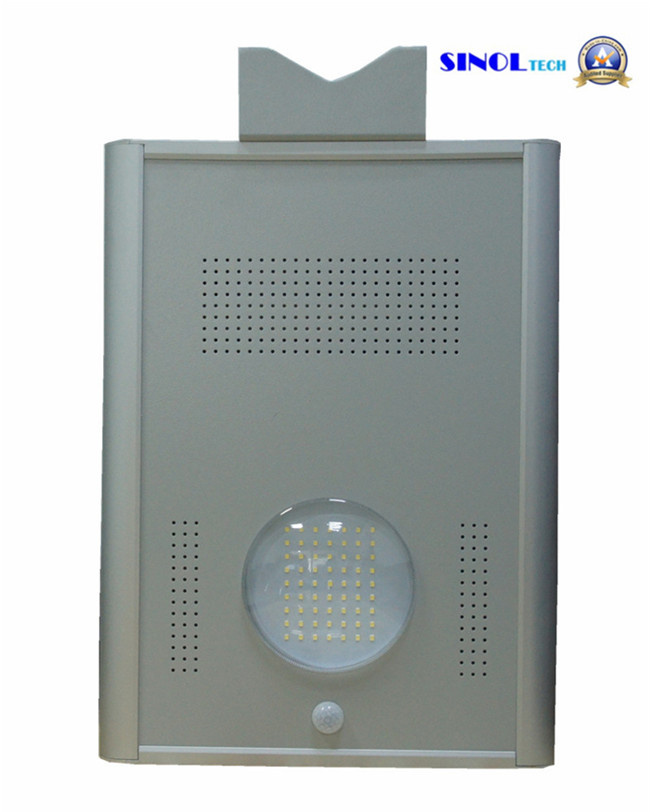

12W LED integrated solar LED garden light
New improvement:
1. Right now all the models above are adopting Sunpower solar panel, with higher efficiency up to 19~23%;
2. Upgrading on control system, with optional extra function, like remote control, AC charge support, monitoring alarm system;
3. Innovation on higher LED power, right now we could produce up to 80W LED integrated solar light.
4. Custom-made design, mounting bracket could be customized according to clients' requirement
5. OEM logo and custom shell colors acceptable.
1. Solar panel: 18W 18V Mono
2. LED: 12W 12V Epistar chip 1000-1200LM
3. Lithium battery 6AH
4. Main material: Aluminum alloy
With sensor
5. Install height: 3-4m
Product size: 515*320*52mm
Packing size: 520*390*240mm
N. W. /G. W.: 5.8kg/6.8kg
Our integrated solar street light which integrates the green-energy parts solarpanel, LED lamp and the Li-Fe battery into a single product, is with human intelligence induction system to gain the solution of low-energy, long-time, high-luminance and free maintenance. And the same time, it's convenient in the shipment and installation.
Purpose:
To be installed in the garden, residential area, courtyard, road, mine area or
Parking area or provide the light in roads where it's necessary, the battery provide
The energy for lighting, and the solar panel charge for the battery.
Product parts:
The product is made up with the integrated parts (solar panel, Li-Fe battery, LED,
MPPT controller and human intelligence induction system) and the light pole.
Working characters:
The solar panel converts sunlight into electricity and stored in Li-Fe battery via
Controller, the LED light will work in night automatically by light sensor control,
And provide light for the darkness area, the human intelligence induction system can save the energy when the lighting is not necessary
| Solar Panel | Max Power | 18V18W(High efficiency monocrystalline silicon) |
| Life time | 25 years |
| Battery | Type | Lithium battery |
| Life time | 5 years |
| LED Lamp | Max power | 12V 12W |
| (With sensor) | Led chip brand | Epistar from Taiwan with high brightness |
| Lumen(LM) | 1200-1320LM |
| Life time | 50000hours |
| Viewing angle | 120 degree |
| Charge time | By sun | 5-6hours |
| Discharge time | Half power | 20 hours |
|
|
|
| Working temp. | range(C) | -20C~+60C |
| Color temp. | range(k) | 6000k |
| Mounting height | range(m) | 3-4m |
| Space between light | range(m) | 8-10m |
| Main lamp materials |
| Aluminum alloy |
| Certificate |
| CE/ROHS/IP65 |
| Warranty period |
| 2 years |
