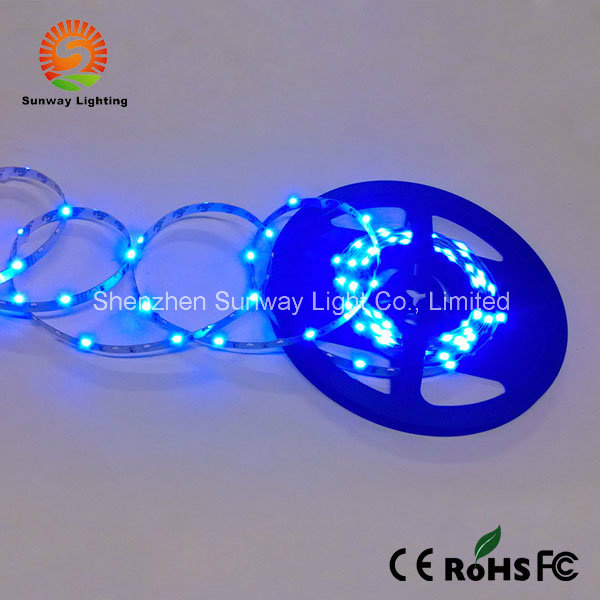

12VDC 335SMD Side View LED Strip Light (SW-FLS335-60)
335 side-emitting smd strip, side viewing led strip, 335 blue led strip, side viewing led strip
Parameters Brief
LED Type: 335SMD Epistar
LEDs: 60/m
Input Voltage: 12VDC
Protection Class: IP20, Nano-coating protection
Cutting Length: Cut/5cm
Service: We will provide installation manual after goods recieved by our clients.
Certificates: CE, RoHS
Table Viewing
Model: | SW-FLS335-60 |
Input voltage: | DC12V |
Power: | 4.8W/M |
LED Type: | 335SMD |
LED Quantity: | 60LEDs/M |
Color: | Blue |
Beam angle: | 120° |
Drive Mode | Constant Voltage |
Rendering Index | --- |
Working temperature | -20°C~+50°C |
Storage temperature | -30°C~+65°C |
IP degree | IP20 |
Dimensions: | L5000mm*W8mm*T2mm |
Package: | Length: 5meters/reel |
Features
RGB led strip 335 waterproof ,with Superbright 335 SMD top LED, high intensity and reliability.
Continuous length, packed with 5 meter, every 5cm as a sell unit.
Cuttable every 3 LEDs along the cutting marks, according to pratical requirement.
Long life span 50,000+ hours
Flexible ribbon for curving around bends
Completely smooth and even light spread, solving the uneven luminous problem
Ultra-bright but running at low temperature
CE & RoHS approved
Low power consumption
Application
Widely used for home decoration use, hotels, clubs, shopping malls
Architectural decorative lighting, boutique atmosphere lighting
Extensively applied in Backlighting, concealed lighting, channel letter lighting
Emergency & security lighting, advertisement sign lighting
Decorative lights for holiday, event, show exhibition
Applicable for automobile and bicycle decoration, border or contour lighting
Service
Packing Detail | Anti-static bag or blister card or card box |
Shipping Options | Express by air, sea, post ways |
Delivery Time | Mini order, 1-3 working days. Under 5000 PCS, 4-7 days normally. More than 10000 PCS, 6-10 days. |
Payment Terms | PAYPAL or T/T or Western Union or Money Gram or L/C |
Warranty Period | 3years |
Our Promise | 1. Provide solutions and high quality products |
2. Convenient in the buying and paying processes |
3. Deliver the goods to our customers all over the world with speed |
4. Protection of your sale area, ideas of design and all your private information |
Our Service | 1. Provide professional person to communicate with you before the order. |
2. Provide strict quality check for each part, each process before export. |
3. Provide optimum system solution based on each client's specific requirement. |
4. Provide Considerate service oncevalued customers visit us |
More Strips FYI
Part No. | Qty | Power | Options | Colors | Size | Packing |
(W/m) |
5050RGBW LED Strip |
SW-FLS5050RGBW-30 | 30LEDs/M | 9.6W | 12VDC/24VDC | RGBW | 5000x12mm | 5M/Roll |
SW-FLS5050RGBW-48 | 48LEDs/M | 15.4W | EpistarLED | 1Roll/Antistatic bag |
SW-FLS5050RGBW-60 | 60LEDs/M | 19.2W |
| 60Roll/Carton |
SW-FLS5050RGBW-72 | 72LEDs/M | 23W |
| CTN Size: 49x29x34cm |
SW-FLS5050RGBW-96 | LEDs/M96 | 30.7W |
|
|
SW-FLS5050RGBW-120 | 120LEDs/M | 38.4W |
|
|
SW-FLS5050RGBWD-30 | 30LEDs/M | 7.6W | 12VDC | RGBW |
|
2811IC |
|
Full-color |
|
3527 LED Strip |
SW-FLS3527-60 | 60LEDs/M | 9.6W | 12VDC | 3527LED is integrated by 2 different CCT 3528LEDs | 5000x10mm | 5M/Roll |
EpistarLED | 1Roll/Antistatic bag |
SW-FLS3527-90 | 90LEDs/M | 14.4 |
| 60Roll/Carton |
SW-FLS3527-120 | 120LEDs/M | 38.4 |
| CTN Size: 49x29x34cm |
5630 LED Strip |
SW-FLS5630-30 | 30LEDs/M | 9.6W | 12VDC/24VDC | White CCT 3000-7000K | 5000x10mm | 5M/Roll |
EpistarLED | 1Roll/Antistatic bag |
SW-FLS5630-60 | 60LEDs/M | 19.2W |
| 60Roll/Carton |
SW-FLS5630-72 | 72LEDs/M | 23W |
| CTN Size: 49x29x34cm |
5050 LED Strip |
SW-FLS5050-30 | 30LEDs/M | 7.2W | 12VDC/24VDC | Red Green | 5000x10mm | 5M/Roll |
EpistarLED | Blue RGB | 1Roll/Antistatic bag |
|
| 60Roll/Carton |
| 2800K-8000K | CTN Size: 49x29x34cm |
SW-FLS5050-48 | 48LEDs/M | 11.5W |
|
|
|
SW-FLS5050-60 | 60LEDs/M | 14.4W |
| (different price for Yellow, |
|
SW-FLS5050-72 | 72LEDs/M | 17W |
| Orange, Pink, |
|
SW-FLS5050-84 | 84LEDs/M | 21W |
| Purple, |
|
SW-FLS5050-120 | 120LEDs/M | 28.8W |
| Ice-blue) | 5000x16mm |
|
SW-FLS5050-60RGB/W | 60LEDs/M | 14.4W |
| RGB+W | 5000x12mm |
|
SW-FLS5050-60W-WW | 60LEDs/M | 14.4W |
| Cool white+warm white | 5000x12mm |
|
3528 LED Strip |
SW-FLS3528-30 | 30LEDs/M | 2.4W | 12VDC | Red Green | 5000x8mm | 5M/Roll |
EpistarLED | Blue | 1Roll/Antistatic bag |
| 2800K-8000K | 60Roll/Carton |
SW-FLS3528-60 | 60LEDs/M | 4.8W |
|
| CTN Size: 49x29x34cm |
SW-FLS3528-90 | 90LEDs/M | 7.2W |
| (different price for Yellow, |
|
SW-FLS3528-120 | 120LEDs/M | 9.6W |
| Orange, Pink, |
|
SW-FLS3528-240 | 240LEDs/M | 19.2W |
| Purple, | 5000x10mm |
|
SW-FLS3528-240 | 240LEDs/M | 19.2W |
| Ice-blue) | 5000x16mm |
|
SW-FLS3528-60RGB | 60LEDs/M | 4.8W |
| R+G+B | 5000x8mm |
|
SW-FLS3528-120RGB | 120LEDs/M | 9.6W |
|
|
SW-FLS3528-360 | 120LEDs/M | 28.8 |
| Red Green | 5000x16mm |
|
| Blue |
|
| 2800K-8000K R+G+B |
|
SW-FLS3528-120RGBW | 120LEDs/M | 9.6W |
| R+G+B+W | 5000x16mm |
|
SW-FLS3528-60 | 60LEDs/M | 4.8W |
| Cool white+warm white | 5000x10mm |
|
SW-FLS3528-120 | 120LEDs/M | 9.6W |
|
|
3014 LED Strip |
SW-FLS3014-60 | 60LEDs/M | 7.2W | 12VDC | Red Green | 5000x8mm | 5M/Roll |
SW-FLS3014-120 | 120LEDs/M | 14.4W | EpistarLED | Blue Yellow | 1Roll/Antistatic bag |
SW-FLS3014-288 | 288LEDs/M | 34.5W |
| 2800K-8000K | 5000x10mm | 60Roll/Carton |
SW-FLS3014-288T | 288LEDs/M Two Lines | 34.5W |
|
| 5000x12mm | CTN Size: 49x29x34cm |
335 LED Strip |
SW-FLS335-60 | 60LEDs/M | 4.8W | 12VDC | Red Green | 5000x8mm | 5M/Roll |
EpistarLED | Blue Yellow | 1Roll/Antistatic bag |
| 2800K-8000K | 60Roll/Carton |
SW-FLS335-120 | 120LEDs/M | 9.6W |
| R+G+B | CTN Size: 49x29x34cm |
SW-FLS335-60 | 60LEDs/M | 4.8W |
| Cool white+warm white | 5000x8mm | 5M/Roll |
| 1Roll/Antistatic bag |
| 60Roll/Carton |
SW-FLS335-120 | 120LEDs/M | 9.6W |
| CTN Size: 49x29x34cm |
2835 LED Strip |
SW-FLS2835-60 | 60LEDs/M | 12W | 12VDC | Red Green | 5000x8mm | 5M/Roll |
EpistarLED | Blue Yellow | 1Roll/Antistatic bag |
| 3000K-8000K | 60Roll/Carton |
|
| CTN Size: 49x29x34cm |
SW-FLS2835-120 | 120LEDs/M | 24W |
|
| 5000x10mm | 5M/Roll |
|
| 1Roll/Antistatic bag |
SW-FLS2835-150 | 150LEDs/M | 30W |
|
| 60Roll/Carton |
SW-FLS2835-120 | 120LEDs/M | 24W |
| Cool white+warm white | CTN Size: 49x29x34cm |
WS2812/WS2812B LED Strip |
SW-FLS5050WS30 | 30LEDs/M | 9W | 5VDC | 5000x10mm | 5M/Roll |
SW-FLS5050WS48 | 48LEDs/M | 14.4W | EpistarLED-2812IC buit in | 1Roll/Antistatic bag |
SW-FLS5050WS60 | 60LEDs/M | 18W | Full-color | 60Roll/Carton |
SW-FLS5050WS96 | 96LEDs/M | 28.8W |
| 5000x12mm | CTN Size: 49x29x34cm |
SW-FLS5050WS144 | 144LEDs/M | 43W |
|
|
WS2811 LED Strip |
SW-FLS5050WS30 | 30LEDs/M | 7.2W | 12VDC | 5000x10mm | 5M/Roll |
EpistarLED-2812IC buit in | 1Roll/Antistatic bag |
Full-color | 60Roll/Carton |
| CTN Size: 49x29x34cm |
LPD6803 LED Strip |
SW-FLS5050WS30 | 30LEDs/M | 7.2W | 5VDC | 5000x12mm | 5M/Roll |
EpistarLED | 1Roll/Antistatic bag |
6803IC | 60Roll/Carton |
Full-color | CTN Size: 49x29x34cm |
UCS1903 LED Strip |
SW-FLS5050WS30 | 30LEDs/M | 7.2W | 12VDC | 5000x10mm | 5M/Roll |
EpistarLED | 1Roll/Antistatic bag |
1903IC | 60Roll/Carton |
Full-color | CTN Size: 49x29x34cm |
