Descripton:

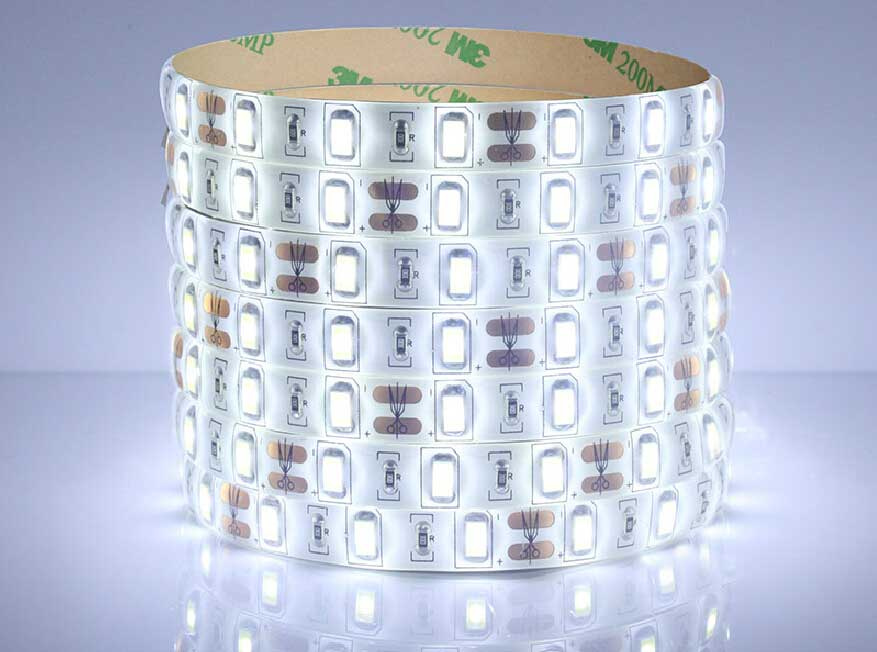

Waterproof led strip lights can be used in kitchen. The FPCB and LEDs are covered by silicon glue which is ultraviolet resistant and low temperature resistant. This kind of waterproof led strip light can work at -20º C environment. A large range of color is available: Warm white, cool white, red, green, blue and yellow. 12VDC and 24VDC are optional.
Features:
1.12VDC voltage, safe voltage, harmless to human.
2. Long life, up to 50000 hrs.
3. Energy saving, 14W/m.
4. Easy to install, can be cut every 3 LEDs. 3M self adhesive backing.
5. IP65, Waterproof. Can be used in kitchen.
Application:
The IP level of this led strip is IP65. It can be used both indoor and outdoor.
Application area:
Indoor:
1. Ceiling decoration
2. Indoor stairs and walkway
3. TV backlighting
4. KTV
5. Super Market
6. Bars and club decoration
Outdoor:
1. Building outlet decoration
2. Bathtub
3. Vehicle
4. Advertise panel
More Information:
Net Weight: 410g
Gross Weight: 470g
Working Temperature: -20° C ~+45° C
Suggested Strorage: 28° C, 60%RH or less
Notes:
1. Power supplier selection: The output voltage should be 12VDC and the power should be bigger than the total power of LED light strips connecting to it.
2. Voltage Drop: One piece of LED light strip connecting to power supplier should not longer than 5 meters in case of voltage drop. We should parallel the LED light strips if the total length is bigger than 5 meters.
3. Although the LED strip is flexible, and can be curved at certain degree, but the LED strip can't be distorted extremely.
Flexible LED Light Strips Catalog:
5630 series |
GS-5630-12V-60-IP20 |
12V |
60LEDs/m |
14W/m |
IP20 |
GS-5630-12V-60-IP65 |
14W/m |
IP65 |
GS-5630-12V-60-IP67 |
14W/m |
IP67 |
5050 RGB series |
GS-5050-RGB-12V-30-IP20 |
12V |
30LEDs/m |
7.2W/m |
IP20 |
GS-5050-RGB-12V-30-IP65 |
IP65 |
GS-5050-RGB-12V-30-IP67 |
IP67 |
GS-5050-RGB-12V-60-IP20 |
60LEDs/m |
14.4W/m |
IP20 |
GS-5050-RGB-12V-60-IP65 |
IP65 |
GS-5050-RGB-12V-60-IP67 |
IP67 |
5050 series |
GS-5050-12V-30-IP20 |
12V |
30LEDs/m |
7.2W/m |
IP20 |
GS-5050-12V-30-IP65 |
IP65 |
GS-5050-12V-30-IP67 |
IP67 |
GS-5050-12V-60-IP20 |
60LEDs/m |
14.4W/m |
IP20 |
GS-5050-12V-60-IP65 |
IP65 |
GS-5050-12V-60-IP67 |
IP67 |
GS-5050-12V-120-IP20 |
120LEDs/m |
28.8W/m |
IP20 |
GS-5050-12V-120-IP65 |
IP65 |
GS-5050-12V-120-IP67 |
IP67 |
GS-5050-24V-60-IP20 |
24V |
60LEDs/m |
14.4W/m |
IP20 |
GS-5050-24V-60-IP65 |
IP65 |
GS-5050-24V-60-IP67 |
IP67 |
3528 series |
GS-3528-12V-30-IP20 |
12V |
30LEDs/m |
2.4W/m |
IP20 |
GS-3528-12V-30-IP65 |
IP65 |
GS-3528-12V-30-IP67 |
IP67 |
GS-3528-12V-60-IP20 |
60LEDs/m |
4.8W/m |
IP20 |
GS-3528-12V-60-IP65 |
IP65 |
GS-3528-12V-60-IP67 |
IP67 |
GS-3528-12V-120-IP20 |
120LEDs/m |
9.6W/m |
IP20 |
GS-3528-12V-120-IP65 |
IP65 |
GS-3528-12V-120-IP67 |
IP67 |
GS-3528-12V-240-IP20 |
240LEDs/m |
19.2W/m |
IP20 |
GS-3528-12V-240-IP65 |
IP65 |
GS-3528-12V-240-IP67 |
IP67 |
GS-3528-24V-60-IP20 |
24V |
60LEDs/m |
4.8W/m |
IP20 |
GS-3528-24V-60-IP65 |
IP65 |
GS-3528-24V-60-IP67 |
IP67 |
GS-3528-24V-120-IP20 |
120LEDs/m |
9.6W/m |
IP20 |
GS-3528-24V-120-IP65 |
IP65 |
GS-3528-24V-120-IP67 |
IP67 |
