Descripton:
LED light strips, also known as LED light tape, have a widely application. You can choose a large range of color. The LED strip can be cut to a 3-led segment, so you can get the length you want. 12V DC and 24V DC input voltage are available. If you want a customizable LED light strip, you can contact us.
Features:
1.12VDC voltage, safe voltage, harmless to human.
2. Long life, up to 50000 hrs.
3. Energy saving, 28.8W/m.

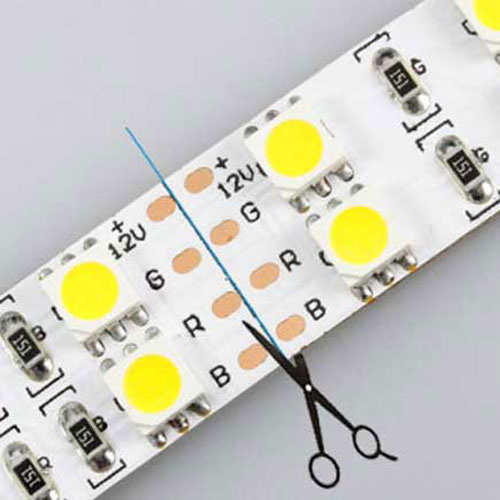

4. Easy to install, can be cut every 3 LEDs. 3M self adhesive backing.
Application:
The IP level of this LED strip is IP20, non-waterproof. So it can only be used indoor.
Application area:
Indoor:
1. Ceiling decoration
2. Indoor stairs and walkway
3. TV backlighting
4. KTV
5. Super Market
6. Bars and club decoration
More Information:
Net Weight: 99g
Gross Weigth: 159g
Working Temperature: -20° C ~+45° C
Suggested Strorage: 28° C, 60%RH or less
Notes:
1. Power supplier selection: The output voltage should be 12VDC and the power should be bigger than the total power of LED light strips connecting to it.
2. Voltage Drop: One piece of LED light strip connecting to power supplier should not longer than 5 meters in case of voltage drop. We should parallel the LED light strips if the total length is bigger than 5 meters.
3. Although the LED strip is flexible, and can be curved at certain degree, but the LED strip can't be distorted extremely.
Flexible LED Light Strips Catalog:
5630 series |
GS-5630-12V-60-IP20 |
12V |
60LEDs/m |
14W/m |
IP20 |
GS-5630-12V-60-IP65 |
14W/m |
IP65 |
GS-5630-12V-60-IP67 |
14W/m |
IP67 |
5050 RGB series |
GS-5050-RGB-12V-30-IP20 |
12V |
30LEDs/m |
7.2W/m |
IP20 |
GS-5050-RGB-12V-30-IP65 |
IP65 |
GS-5050-RGB-12V-30-IP67 |
IP67 |
GS-5050-RGB-12V-60-IP20 |
60LEDs/m |
14.4W/m |
IP20 |
GS-5050-RGB-12V-60-IP65 |
IP65 |
GS-5050-RGB-12V-60-IP67 |
IP67 |
5050 series |
GS-5050-12V-30-IP20 |
12V |
30LEDs/m |
7.2W/m |
IP20 |
GS-5050-12V-30-IP65 |
IP65 |
GS-5050-12V-30-IP67 |
IP67 |
GS-5050-12V-60-IP20 |
60LEDs/m |
14.4W/m |
IP20 |
GS-5050-12V-60-IP65 |
IP65 |
GS-5050-12V-60-IP67 |
IP67 |
GS-5050-12V-120-IP20 |
120LEDs/m |
28.8W/m |
IP20 |
GS-5050-12V-120-IP65 |
IP65 |
GS-5050-12V-120-IP67 |
IP67 |
GS-5050-24V-60-IP20 |
24V |
60LEDs/m |
14.4W/m |
IP20 |
GS-5050-24V-60-IP65 |
IP65 |
GS-5050-24V-60-IP67 |
IP67 |
3528 series |
GS-3528-12V-30-IP20 |
12V |
30LEDs/m |
2.4W/m |
IP20 |
GS-3528-12V-30-IP65 |
IP65 |
GS-3528-12V-30-IP67 |
IP67 |
GS-3528-12V-60-IP20 |
60LEDs/m |
4.8W/m |
IP20 |
GS-3528-12V-60-IP65 |
IP65 |
GS-3528-12V-60-IP67 |
IP67 |
GS-3528-12V-120-IP20 |
120LEDs/m |
9.6W/m |
IP20 |
GS-3528-12V-120-IP65 |
IP65 |
GS-3528-12V-120-IP67 |
IP67 |
GS-3528-12V-240-IP20 |
240LEDs/m |
19.2W/m |
IP20 |
GS-3528-12V-240-IP65 |
IP65 |
GS-3528-12V-240-IP67 |
IP67 |
GS-3528-24V-60-IP20 |
24V |
60LEDs/m |
4.8W/m |
IP20 |
GS-3528-24V-60-IP65 |
IP65 |
GS-3528-24V-60-IP67 |
IP67 |
GS-3528-24V-120-IP20 |
120LEDs/m |
9.6W/m |
IP20 |
GS-3528-24V-120-IP65 |
IP65 |
GS-3528-24V-120-IP67 |
IP67 |
