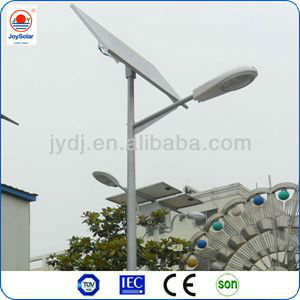

Description of design for 12v 24v LED garden solar light with pole
1. This system configuration is suitable for area that peak sunshine for five hours, three continuous rainy days. System configuration can be designed according to customer's specific project requirements and climate conditions.
2. The energy of Solar street lighting is form solar radiation, Whether the sunlight that exposure to solar panels is abundant or not directly affect lamp lighting effects, so solar panels can exposure to sunlight at any period of time, so when Select where to install the lamp, you should avoid tall buildings or other objects that can block the panels.
3. In order to ensure its beautiful characteristic and its ability that receive better solar radiation, we suggest that you should clean the dust on the solar panels every half of one year, but don't rinse area from the bottom up.
4. Battery is placed on the top of the pole, and it's good for battery heat-dissipation, shortening the length of the cable, reducing pressure drop, easy installation & anti-theft.
Name
|
Specification
|
Quantity
|
Parameter
|
Solar panel
|
280W/24V
|
1 piece
|
Polycrystalline solar cell, 156x156mm, 72 piece.
Vm: 36.145V,Im: 7.775A,Voc: 44.949V, Isc: 8.218A
Size:1956x992x50mm with 90cm wires,MC4 Connector. and Weight:27KG
Warranty: More than 90% output power in 10 years .and more than 80% output power in 25 years.
The product have passed TUV, IEC, MCS etc certificate.
|
Light source
|
LED80W/24V
|
1 piece
|
Single Integrated Power LED(80W),Woking Voltage DC24V,General luminous:8000lm,LED Luminous Efficiency:100lm/W,Center illuminance:25lx,Ra>80,Color temperature:2700-7000K,Protection Grade :IP65,Working life ≥ 50000hours.
Lamp shade is Die-casting aluminum, and its face is UV-resistant and corrosion resistant .
No bad glare; No Strobe; Start without delay .Low maintenance cost .
|
Controller
|
20A
|
1 piece
|
PHOCOS CIS Series,12V/24VAutomatic identification , light control and time control,Protection Grade IP68
|
Battery
|
12V/150AH
|
2 piece
|
Gel Battery that dedicated to solar energy. For the solar energy street lamp that in simple circulatory system. And its advantage is that :the small self -discharge rate ,the better deep discharge, Top charge acceptance, large capacity,strong start in low ,the good shock resistant and Anti-temperature charge Production
Size: 483x170x240mm,Weight :44.5KG
|
Pole and other steel fitting
|
10M
|
Set
|
Material: steel Q235 or Q345; hot dip galvanized and powder coated .
Solar panel bracket is consist of Angle iron and Flat iron. Square tube is assembled by bolt , any section is made with mold. With high efficiency and precision , standardized parts can replace each other and the same time increase the packing quantity and reduce transport cost .
Battery body are welded after 2mm plate stamping molding
Lamp arm is consist of welded tube and iron plate.
|
Wires harness
|
--
|
1 piece
|
With the special connector ,standardization,substitutability ,high installing efficiency,saving cost .
Wire harness can be designed according to different lamp type .
|
others
|
Baseplate, steel rod, standard component and so on
|
Conditions
|
Voltage of system: 24V, working time: 10 hours/day , Work temperature -20 °C - +50 °C
|
Packing Quantity
|
65set/40HQ
|
